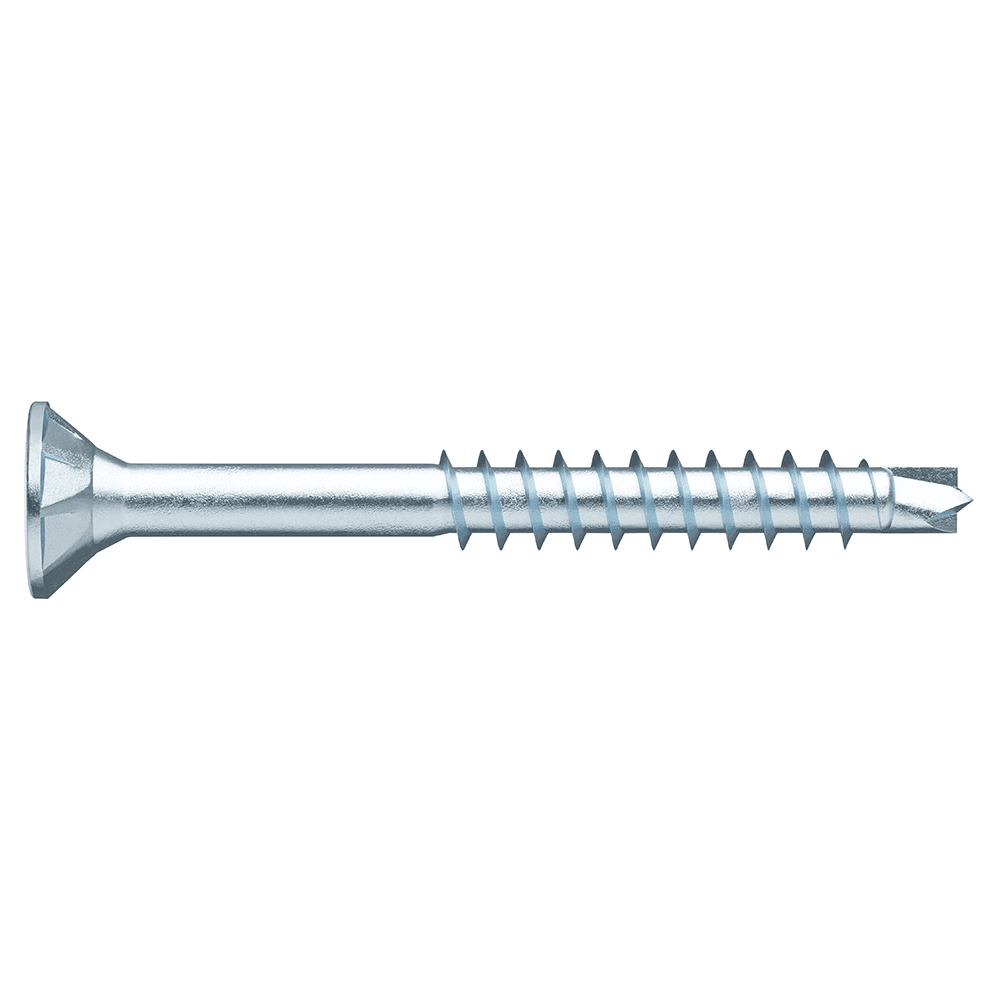

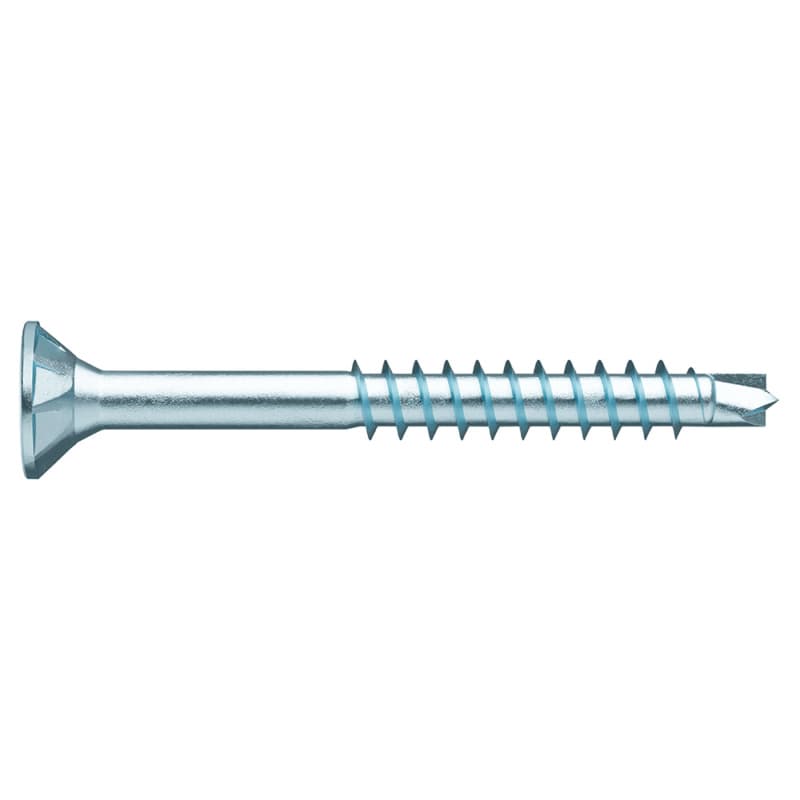

#9 x 3-1/8" Flat Head ASSY Assembly Screw, RW20 Drive ASSY Thread with Nibs and Drill Point, Zinc, Box of Thousand by Wurth
Item # WR0178104580
•Mfr # 0178104580961 200
$34.76
/Box
4 items
$30.42/Box
12 items
$28.44/Box
Length: 3-1/8"
Gauge: #9
Quantity: Box of Thousand
Min Order: 1
Qty mult. by: 1
Product Details
Features:

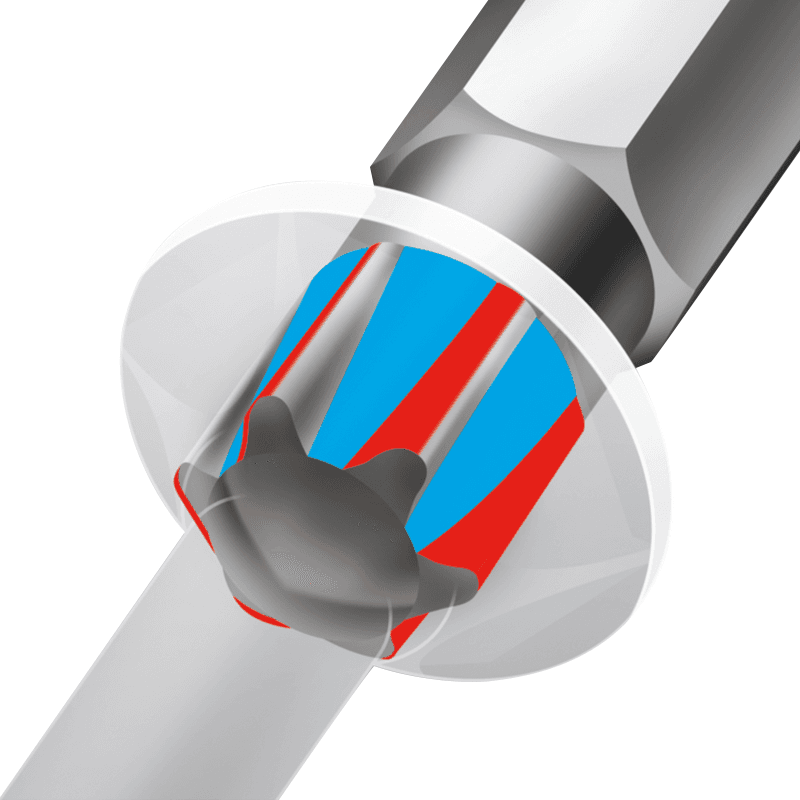

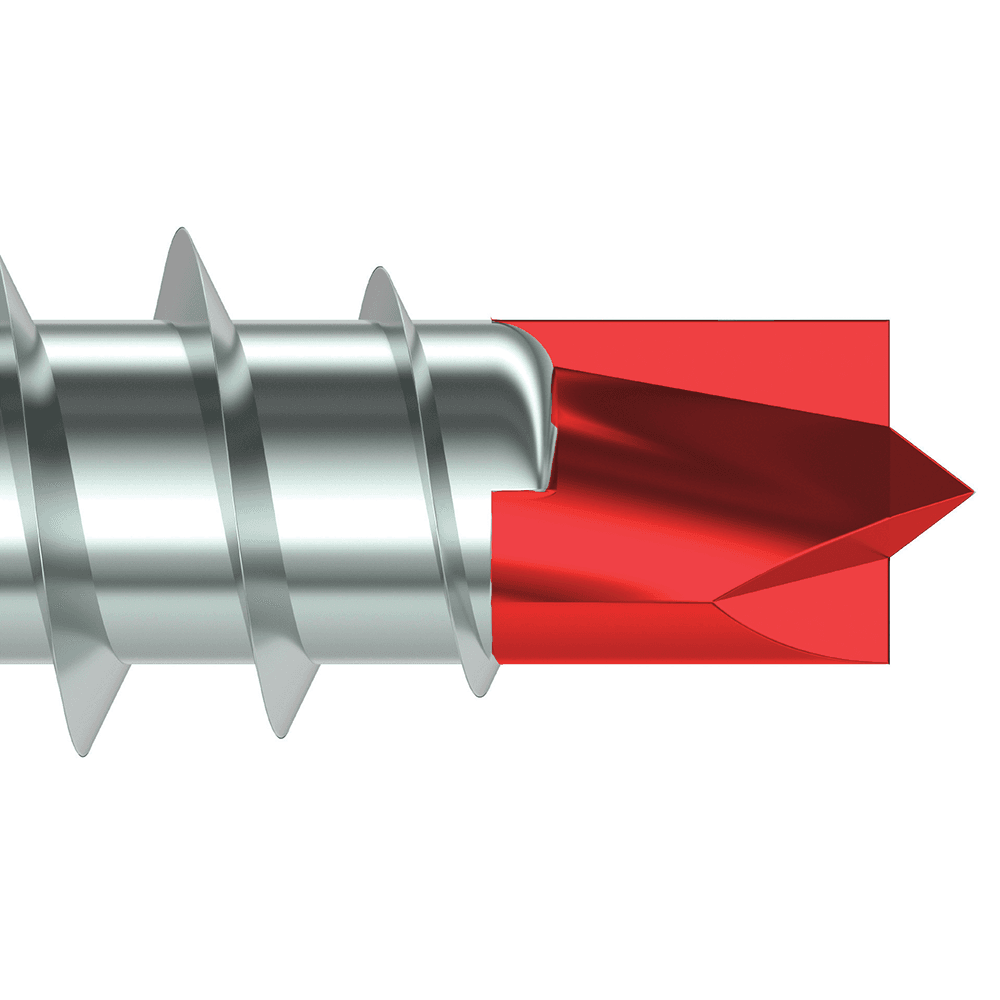

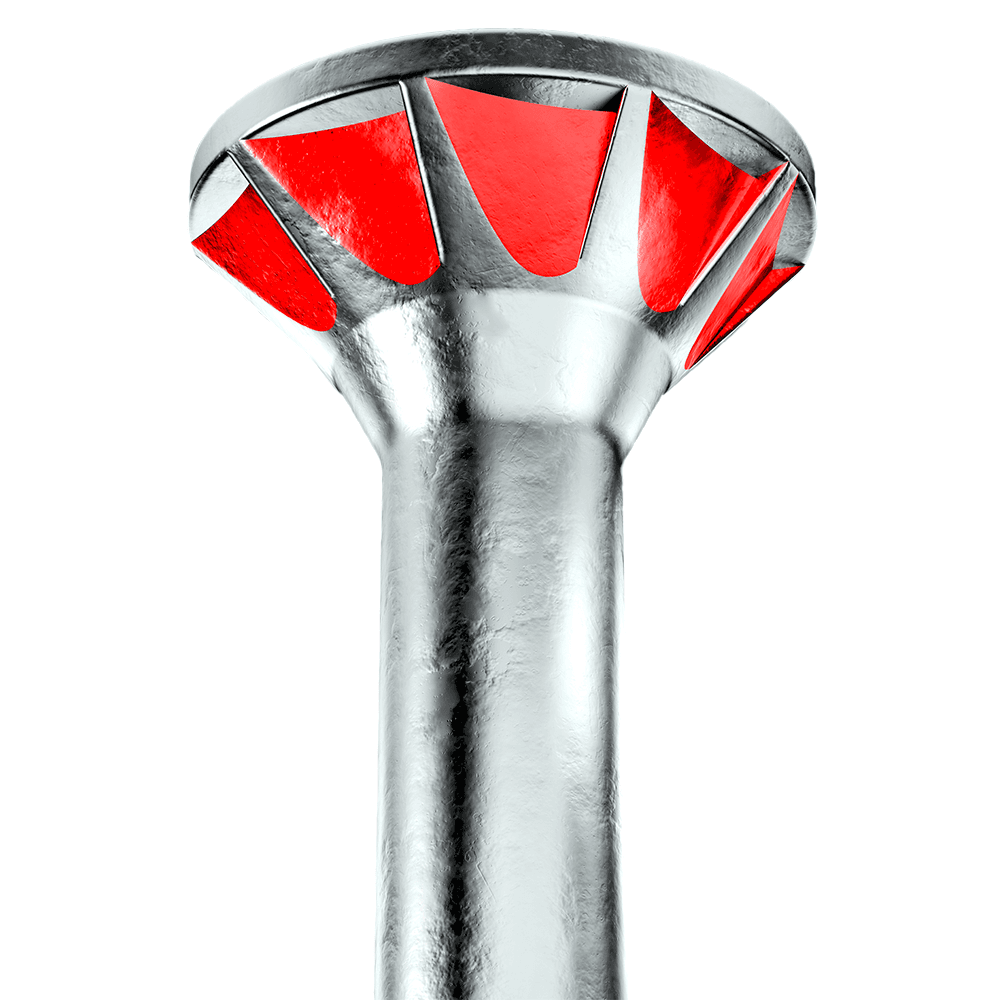

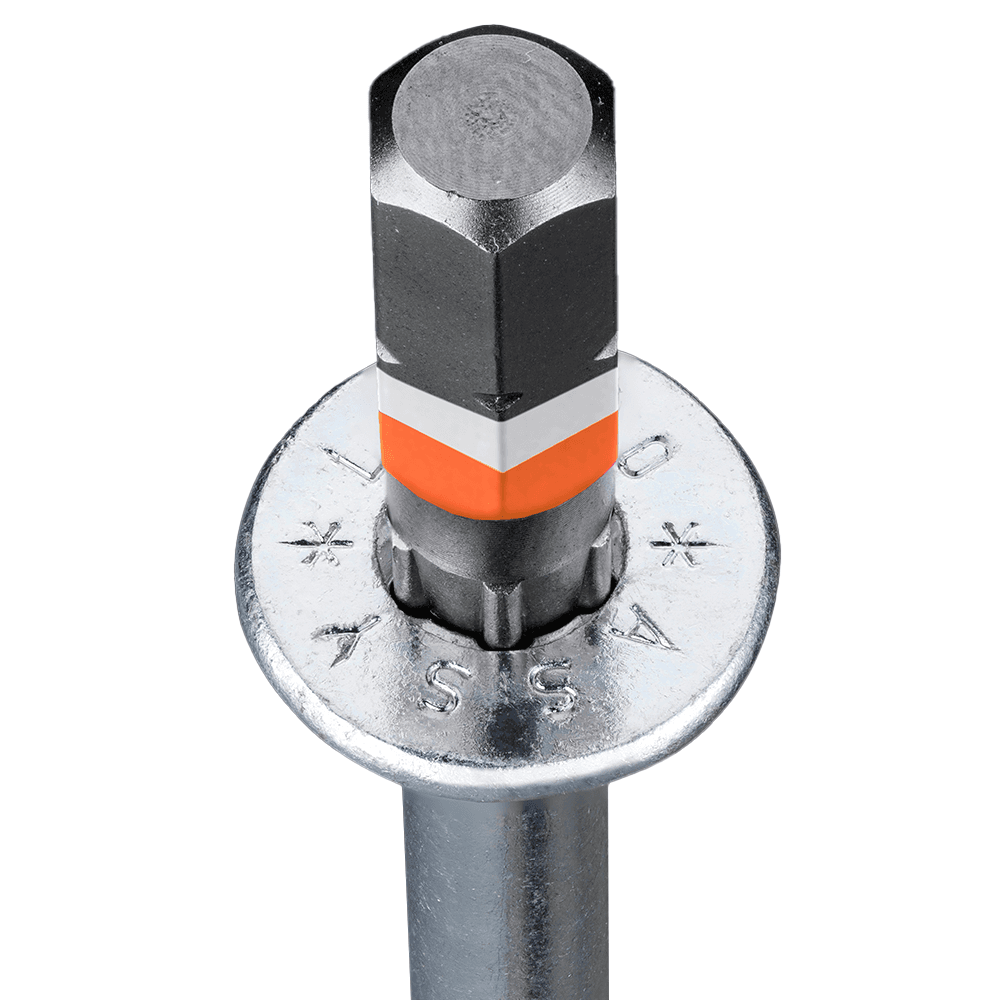

• 3-1/8" long ASSY assembly screw• Especially suitable for cabinet assembly when close to the edges of different materials - eliminating having to pre-drill in a separate step• Power Thread: Smooth thread start ensures optimized piercing and fast biting of the screw• New thread reduces screw-in force and minimizes friction caused by screw rotation• Reinforced thread flank provides higher power transmission in hardwoodss• Milling Pockets/Nibs: Increased number of milling pockets improves quality of countersink• Clean countersinking of the head in laminates, hardwoods and softwood due to high milling performance and chip collection• Drill Point: Drilling tip features sharp cutting edges and effective chip removal preventing risk of splitting• Centerpoint prevents slipping even on hard surfaces• Fast biting thanks to smooth start of thread• RW Bit: Deep precision fit with increase of contact surface - prolonged bit life• Deeper recess of the screw, broader wing area, and larger contact surfaces• Included screws and bitSpecifications
| Box Quantity | 200 |
| Length | 3-1/8" |
| Gauge | #9 |
| Product Type | ASSY Assembly Screw |
| Head Type | Flat |
| Drive Type | RW20 |
| Drive Size | RW20 |
| Thread Type | ASSY |
| Point | Drill |
| Finish | Zinc |
| Nibs | Yes |
| Quantity | Box of Thousand |
| Application |
