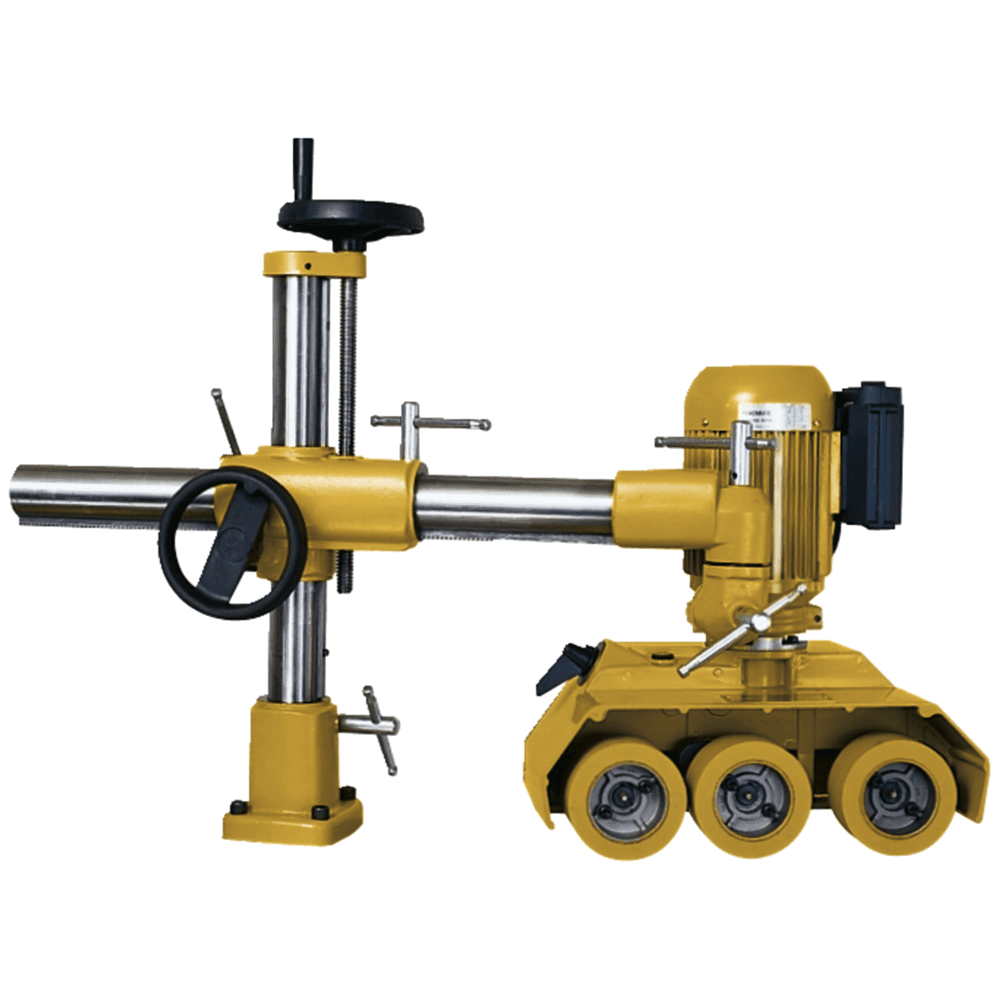

Powermatic PF-31 Feeder 1HP 115V 4 Speed
This item may incur additional shipping costs and lead times.
Product Details
These rugged, heavy–duty stock feeders feature continuous–duty motors that transfer power from the gear box to the feed roller through the roller chain and sprockets, providing superior positive feeding for all types of materials. The fully adjustable support columns feature moveable universal joints and heavy locking mechanisms that lock the feeder in horizontal, vertical, or angle feed positions. Solid cast iron construction of bodies, bases and universal joints provide stability with vibration–free feeding. The smart roller system provides money–saving wheel changes by allowing the replacement of the tire only, not the complete assembly as on other units.
- Roller chain and sprockets provide positive feeding for a variety of work
- Support column is fully adjustable for horizontal, vertical or angled feeder position
- Feeder body, column base and joints are cast iron for heavy duty operation
- Rollers can be changed out easily and quickly
| Distance Between Rollers - Center to Center (In.) | 5.07 - 5.90 |
| Number of Speeds | 4 Speeds |
| Range of Speeds | 13, 36, 43, 108 |
| Maximum Height of Rollers Parallel to Tabletop (In.) | 8.45 |
| Rotation | Forward/Reverse |
| Swing (Deg.) | 360 |
| Movement - Horizontal (In.) | 18.07 |
| Movement - Vertical (In.) | 9.83 |
| Column Diameter (In.) | 2-7/25 |
| Motor Power (HP) | 1 |
| Motor Phase | 1 |
| Motor Voltage (V.) | 115 |
!["Warning]("http://www.wurthlac.com/storefront/template-resources/js/images/warning.png")
WARNING: This product can expose you to chemicals including Lead, Cadmium, which is known to the State of California to cause birth defects or other reproductive harm.
For more information, go to P65Warnings.ca.gov
This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
This product can expose you to chemicals including Lead, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
| Product Type | Power Feeder |
| Length | |
| Power | 115V |
| Finish | |
| Material | |
| Width | |
| Height | |
| Horsepower | 1 HP |
| Phase | |
| Rangeof Speeds | |
| Maximum Height of Rollers Parallel to Tabletop (In.) | 37469 |
| Movement - Vertical (In.) | 38233 |
| Swing (Deg.) | 360 |
| Motor Phase | 1 |
| Wiring Remarks | |
| Motor Voltage (V.) | 115 |
| Distance Between Rollers - Center to Center (In.) | 5.07 - 5.90 |
| Recommended Circuit Size (Amps.) | |
| Movement - Horizontal (In.) | 18-1/16 |
| Rotation | Forward/Reverse |
| Motor Power (HP) | 1 |
| Number of Speeds | 4 Speeds |
| Range of Speeds | 13, 36, 43, 108 |
| Feed Rate (FPM) | |
| Number of Rollers | 3 |
| Column Diameter (In.) | 38018 |
| Prewired Voltage (V.) | 115 |
| Motor Current (Amps) | |
| Warranty | 5 Years |
| Drive Motor | 1 |
| Feed Rate |
