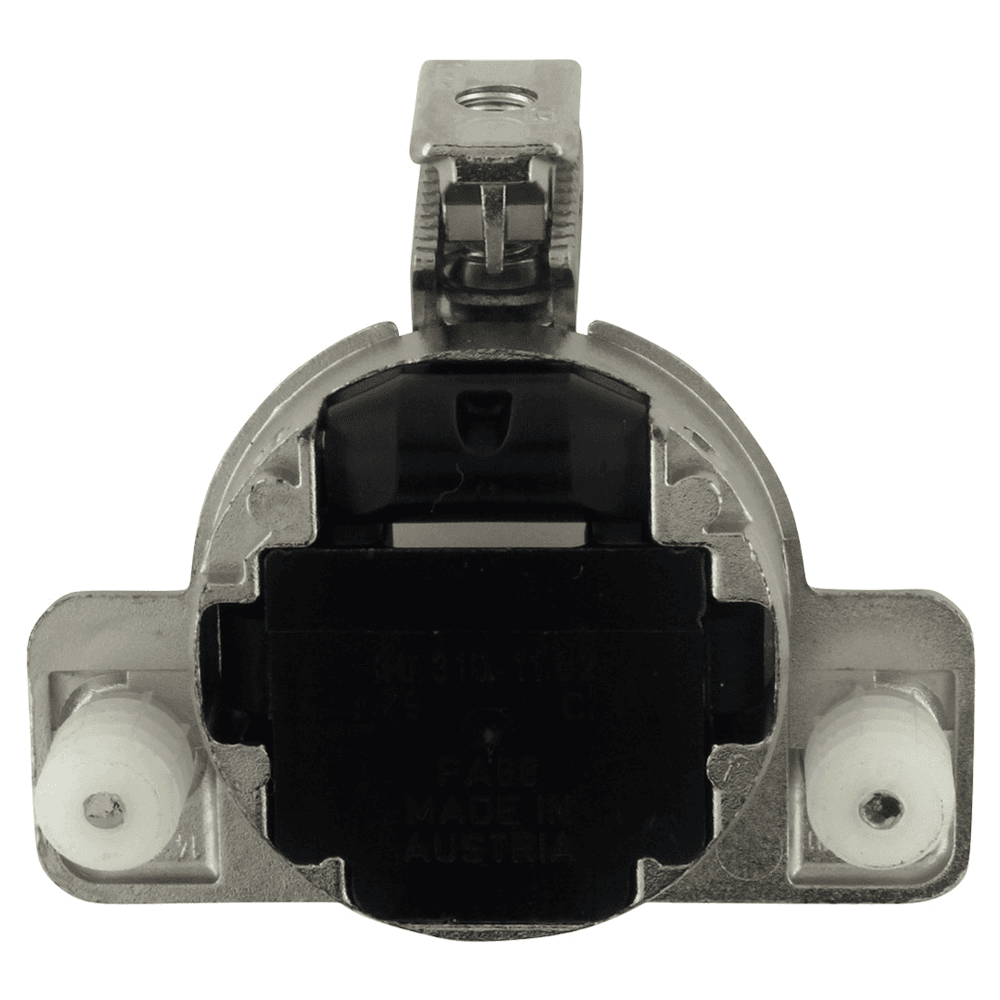

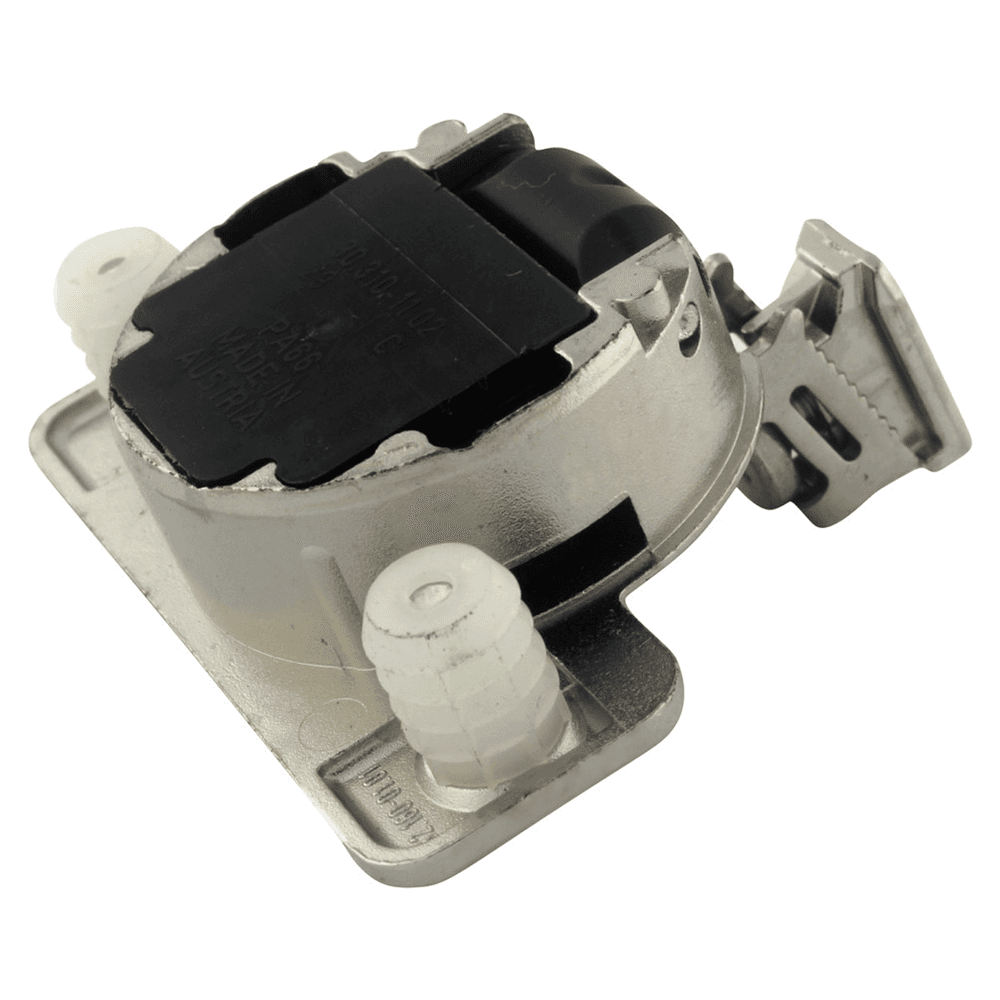

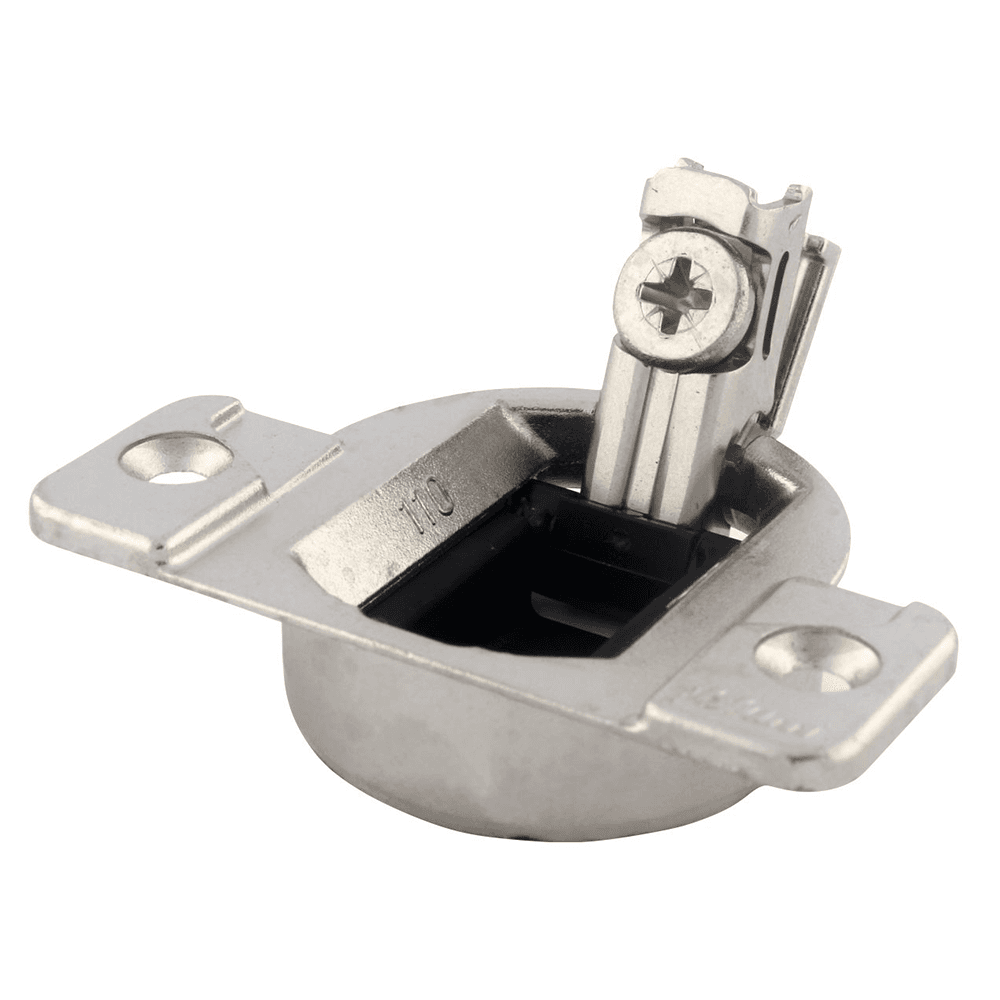

Compact 33 110° Opening Wrap-Around Face Frame Hinge, 45mm Boring Pattern, Self-Closing, Screw-On
Item # B33.360NI
•Mfr # 33.36
$3.42
/Each
250 items
$3.29/Each
1250 items
$3.15/Each
Product Details
COMPACT hinges are concealed hinges for face frame cabinets. These hinges have a small profile, and they work in almost any face frame application. The BLUMOTION soft close adapter is also available for COMPACT hinges.
Features
• 110˚ opening angle
• Two piece assembly
• Edge or face mount
• Maximum door thickness 3/4"
• ?9/64" height adjustment
• -1/8" side adjustment only
• Zinc die-cast hinge and mounting plates
• Can be used with BLUMOTION 971A9700
• Attaches with two 8mm Dowels (Included)
Features
• 110˚ opening angle
• Two piece assembly
• Edge or face mount
• Maximum door thickness 3/4"
• ?9/64" height adjustment
• -1/8" side adjustment only
• Zinc die-cast hinge and mounting plates
• Can be used with BLUMOTION 971A9700
• Attaches with two 8mm Dowels (Included)
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 250 |
| Product Type | |
| Mounting Type | Screw-On |
| Overlay | Variable |
| Closing Type | Self-Closing |
| Opening Angle | 110° |
| Model | |
| Hinge Type | Wrap-Around Face Frame |
| Finish | Nickel-Plated |

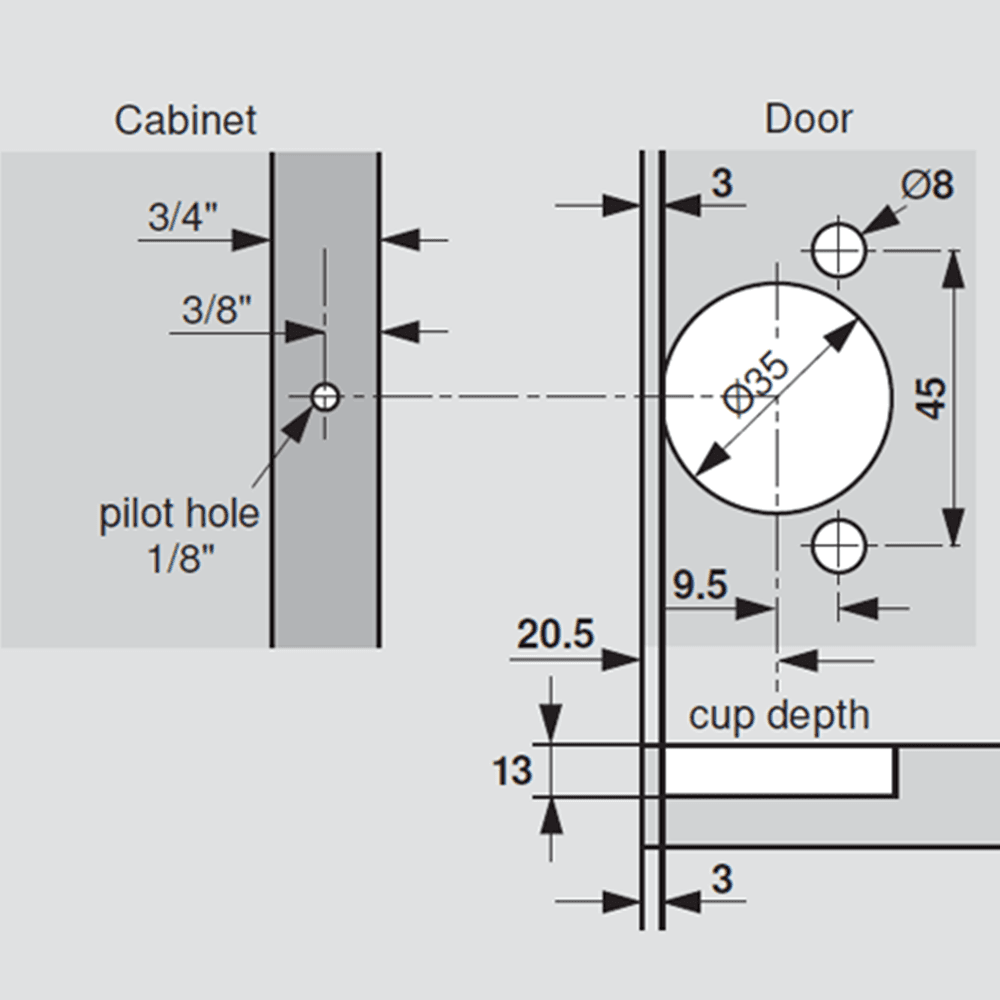

| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 13mm |
| Material | Zinc Die-Cast |
| Cabinet Type | Face Frame |
