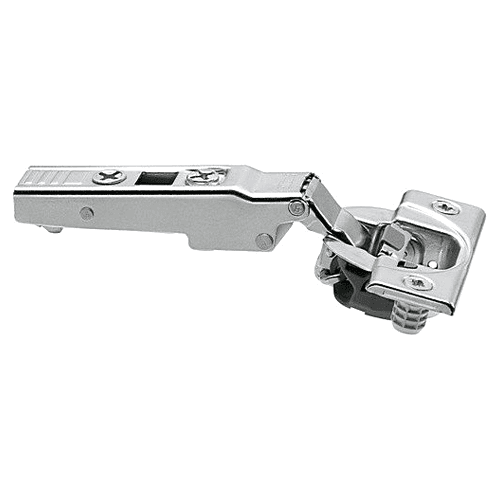

Clip 107° Opening Hinge, 45mm Bore Pattern, Self-Closing, Full Overlay, Nickel-Plated, Dowelled
Item # B75M158
•Mfr # 75M1580
Product Details
The tried and tested CLIP mechanism offers simple, tool-free hinge assembly. The industry standard for tool-free attachment since 1985.
Features
• Three-dimensional adjustment
• For door thicknesses up to 22 (7/8")
• 86˚ angle restriction clip available (74.1103)
• All metal hinge, nickel-plated
• Add-on BLUMOTION soft close available
Features
• Three-dimensional adjustment
• For door thicknesses up to 22 (7/8")
• 86˚ angle restriction clip available (74.1103)
• All metal hinge, nickel-plated
• Add-on BLUMOTION soft close available
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 250 |
| Mounting Type | Dowelled |
| Overlay | Full Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 107° |
| Hinge Type | Standard Euro Hinge |
| Finish | Nickel-Plated |

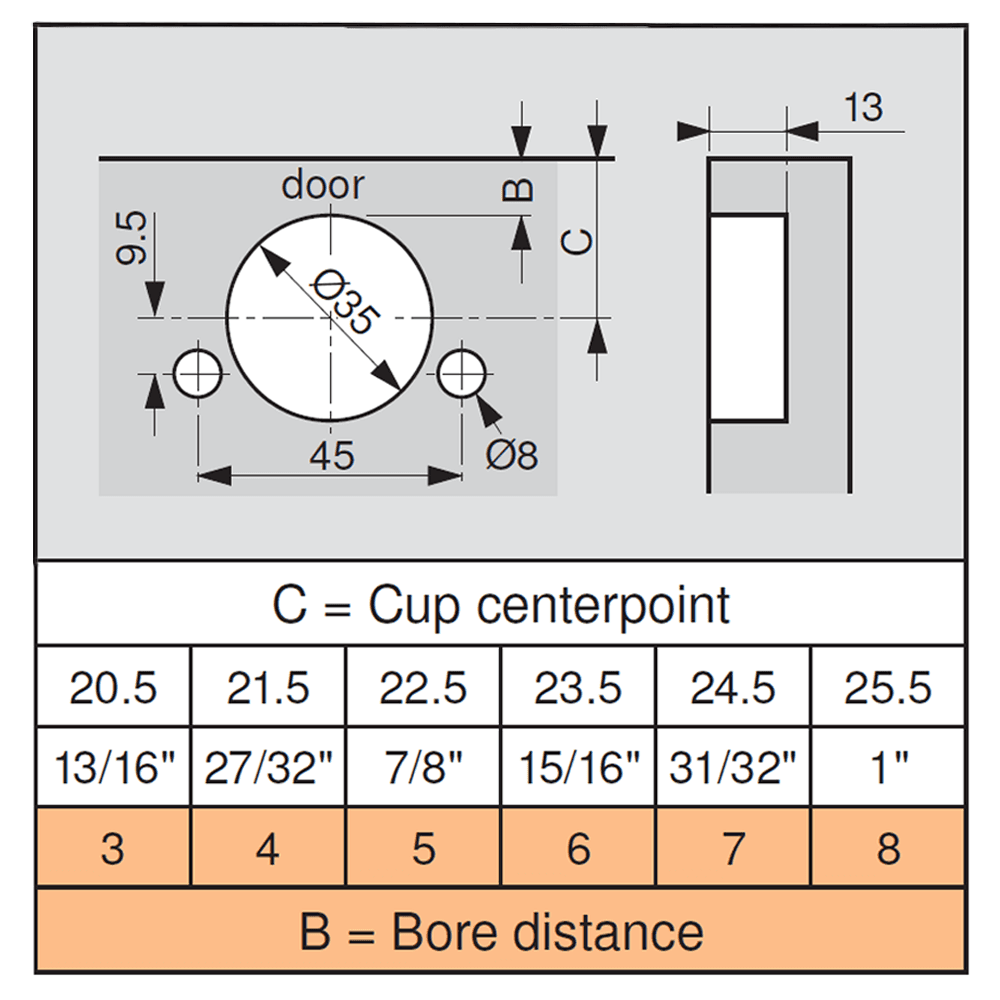

| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 11.5mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
