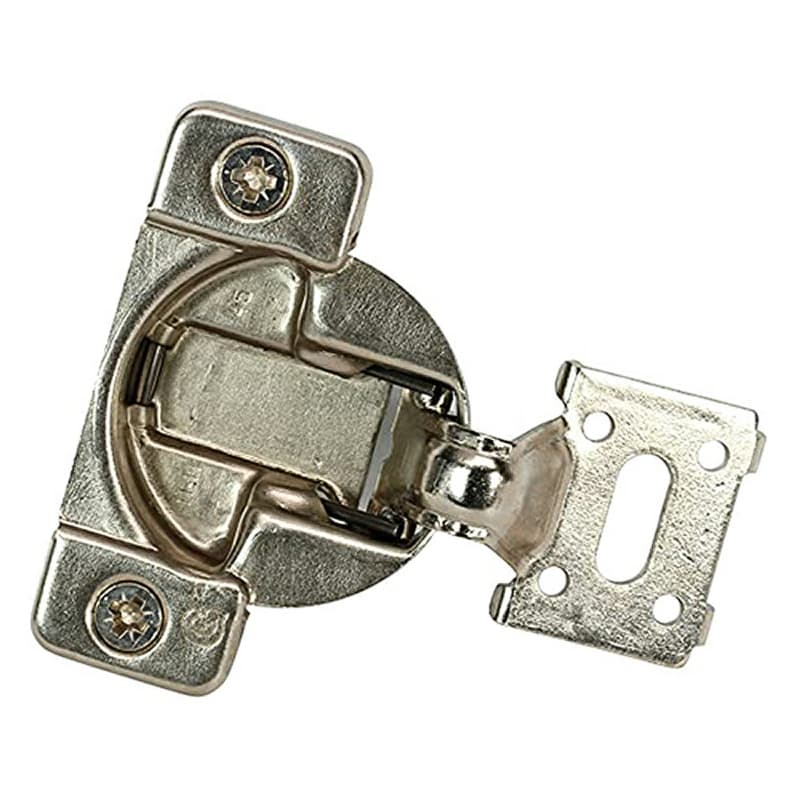

Tec 864 108° Opening Side-Mount Face Frame Hinge, 45mm Boring Pattern, Self-Closing, 5/8" Overlay, Dowelled
Item # GTEC864VS8-0745
•Mfr # 01864-15
$2.10
/Each
300 items
$1.78/Each
1500 items
$1.72/Each
Min Order: 1
Qty mult. by: 1
Product Details

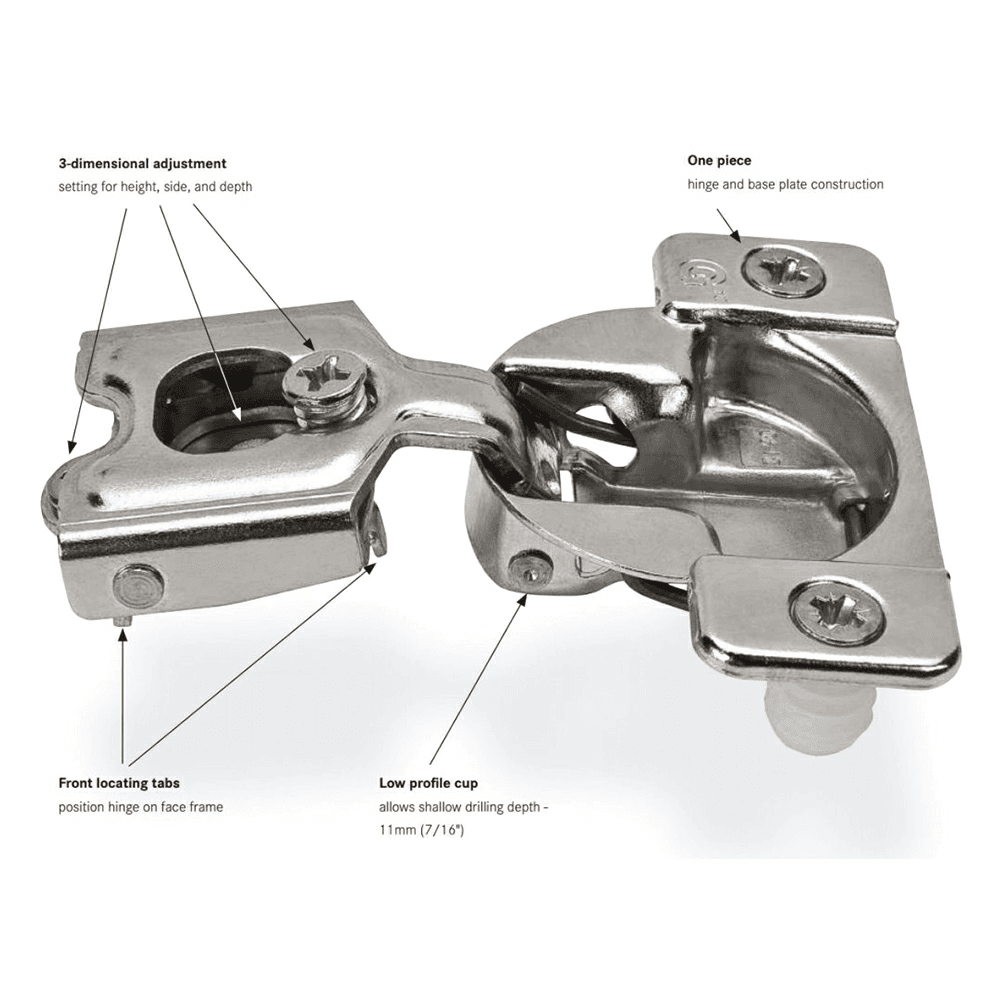

Features:
• One piece hinge and base plate combination
• 3 dimensional adjustment
• 11mm (7/16") cup drilling depth
• Front locating tabs position hinge on face frame
• Cam side adjustment
• Cam depth adjustment
• Height adjustment at mounting screw
• Works with current GRASS insertion machinery
• One piece hinge and base plate combination
• 3 dimensional adjustment
• 11mm (7/16") cup drilling depth
• Front locating tabs position hinge on face frame
• Cam side adjustment
• Cam depth adjustment
• Height adjustment at mounting screw
• Works with current GRASS insertion machinery
Specifications
| Box Quantity | 300 |
| Product Type | |
| Mounting Type | Dowelled |
| Overlay | 5/8" |
| Closing Type | Self-Closing |
| Opening Angle | 108° |
| Model | |
| Hinge Type | Side-Mount Face Frame |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 11mm |
| Material | Steel |
| Cabinet Type | Face Frame |
