90° Opening Fascia Hinge With Spring, 45mm Bore Pattern, Nickel-Plated
Item # HET1019879
•Mfr # 1019879
$12.71
/Each
200 items
$11.52/Each
Min Order: 1
Quantity Multiple by: 1
Drop Ship Item
This item ships directly from the vendor. Additional freight charges may apply.
Product Details
Features:
• Fascia hinge is finished in Nickel-plated

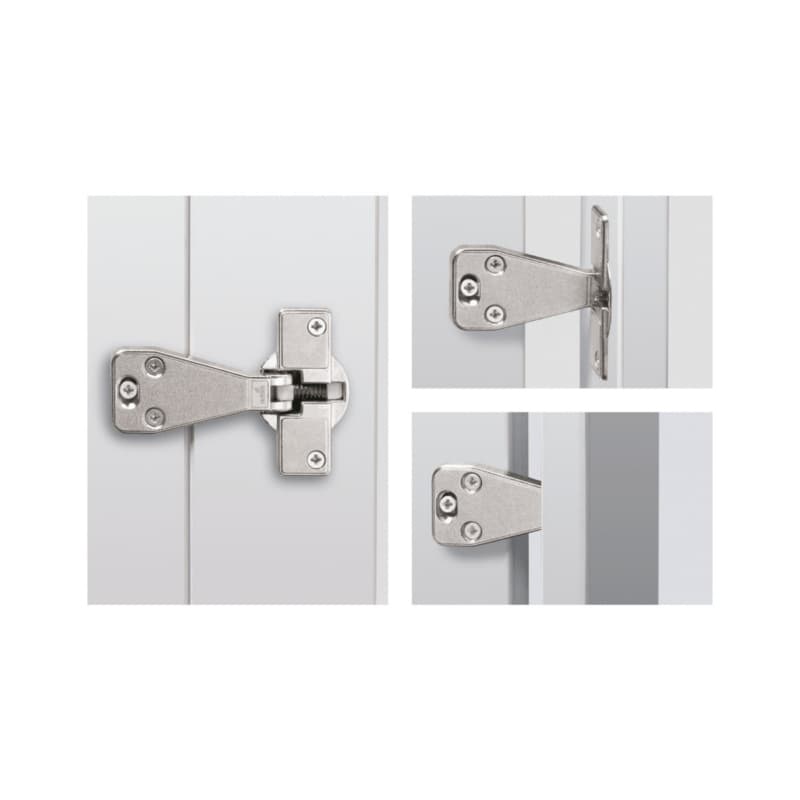

• Suitable for mounting hinged fascia's or for connecting two door sections on folding/sliding doors
• The integrated spring system keeps the door closed in a 90? position and also keeps the fascia aligned with the door
• The flat side arm takes up little space when the door is pushed into position between side panel and auxiliary panel
• Fascia hinge is finished in Nickel-plated
• Suitable for mounting hinged fascia's or for connecting two door sections on folding/sliding doors
• The integrated spring system keeps the door closed in a 90? position and also keeps the fascia aligned with the door
• The flat side arm takes up little space when the door is pushed into position between side panel and auxiliary panel
Specifications
| Mounting Type | |
| Overlay | |
| Closing Type | |
| Opening Angle | 90° |
| Model | |
| Hinge Type | Fascia Hinge |
| Finish | Nickel-Plated |

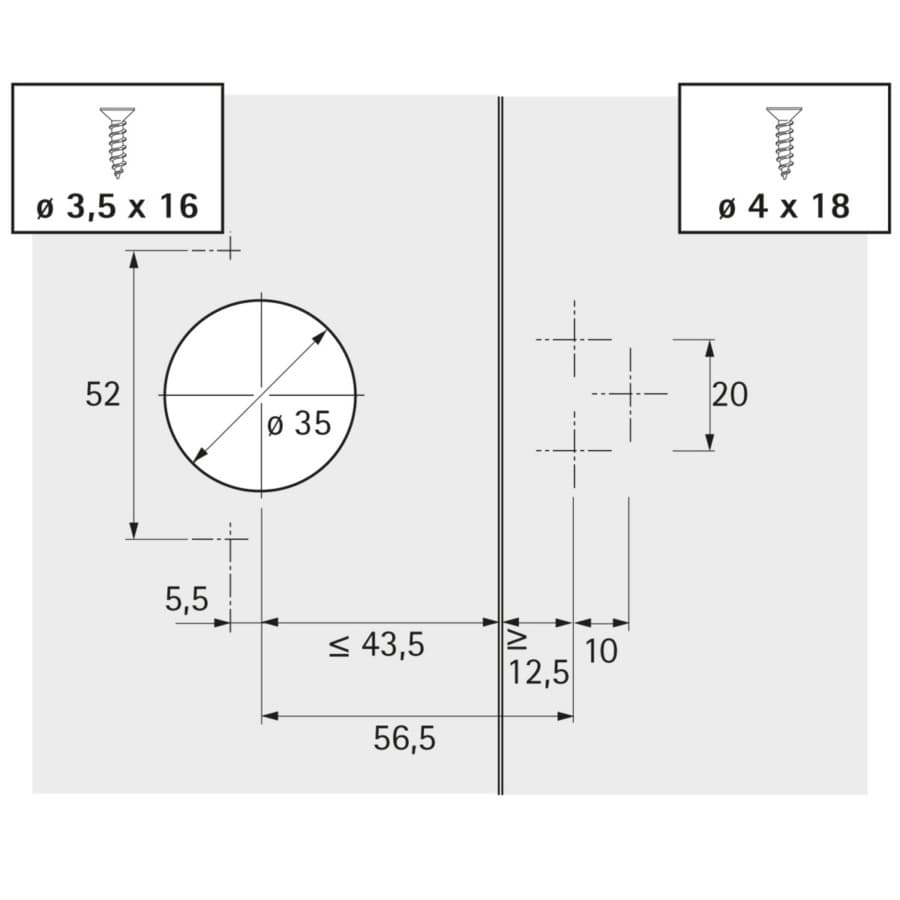

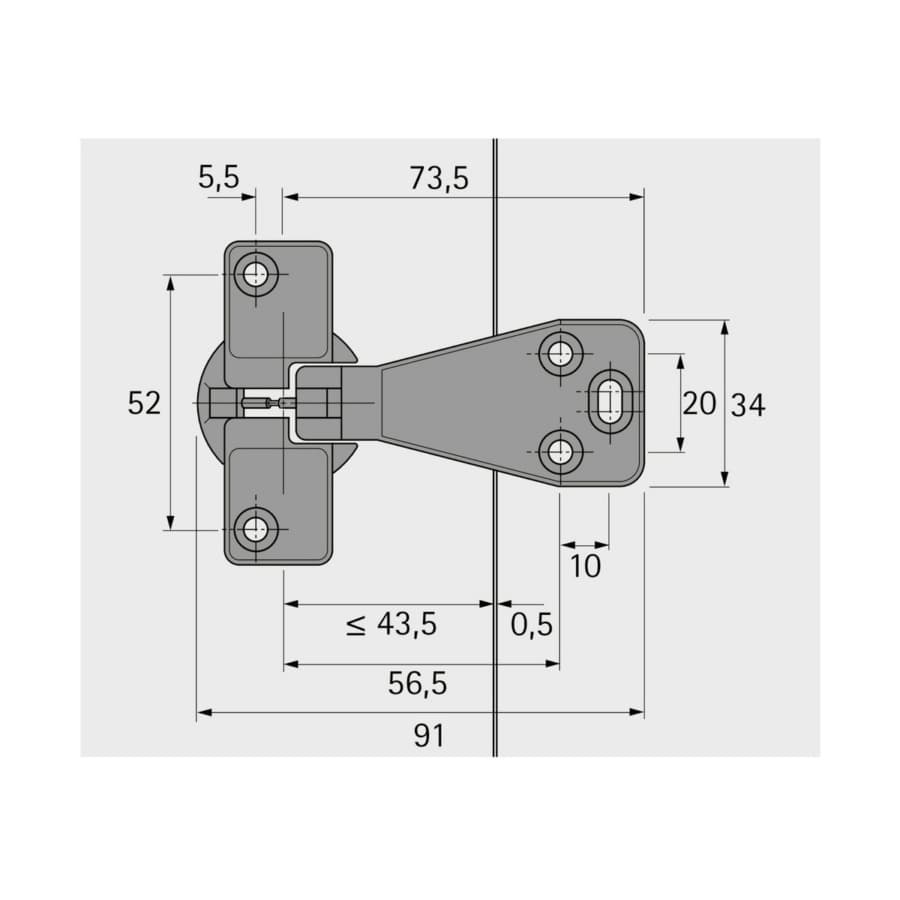

| Boring Pattern | 35mm |

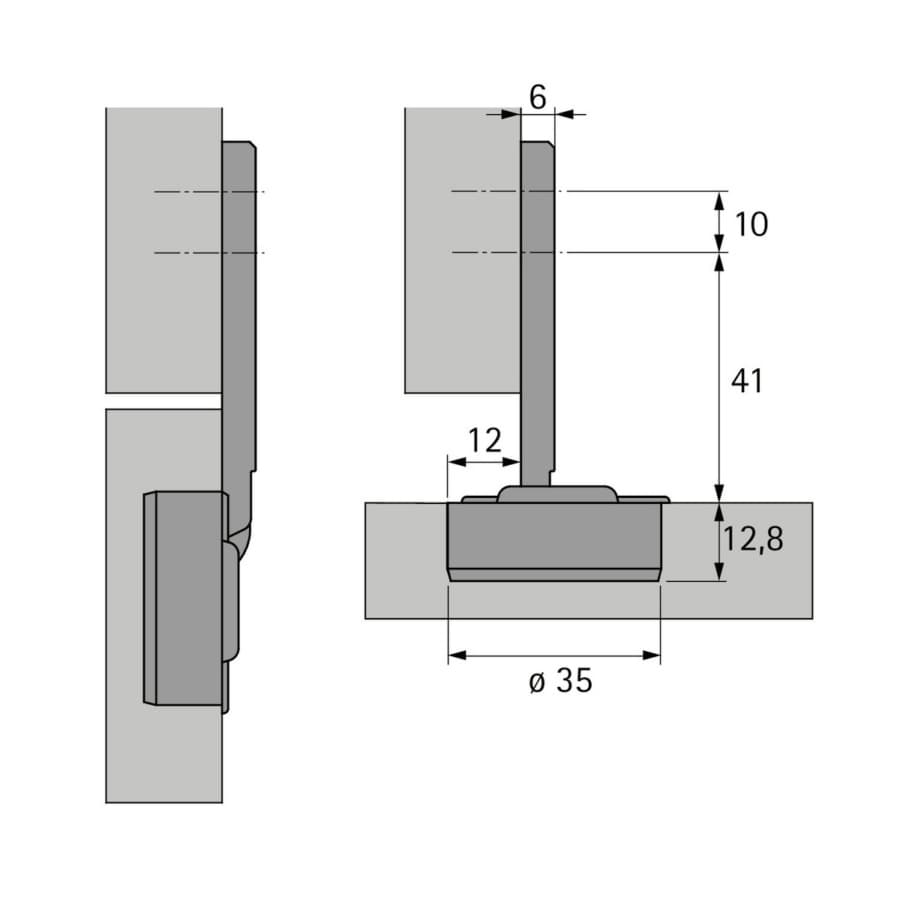

| Cup Diameter | 35mm |
| Cup Depth | |
| Material | Steel |
| Cabinet Type |
