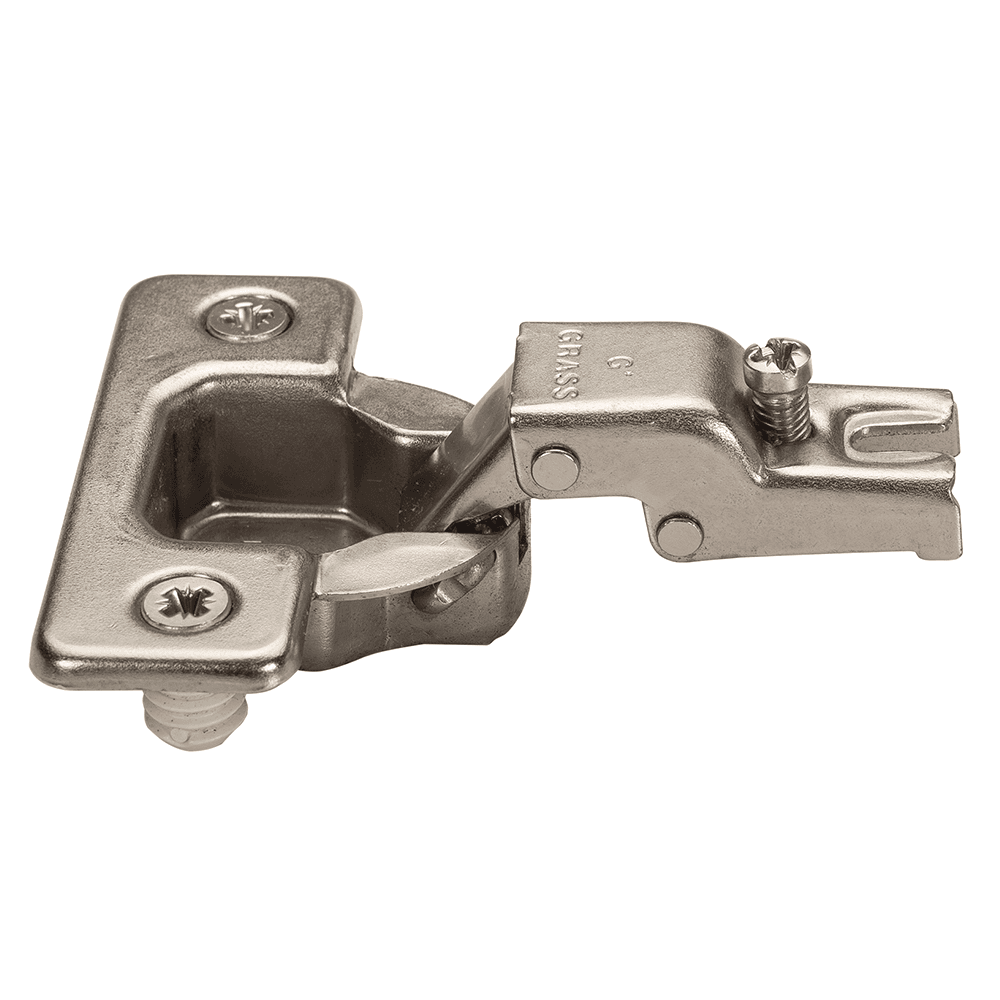

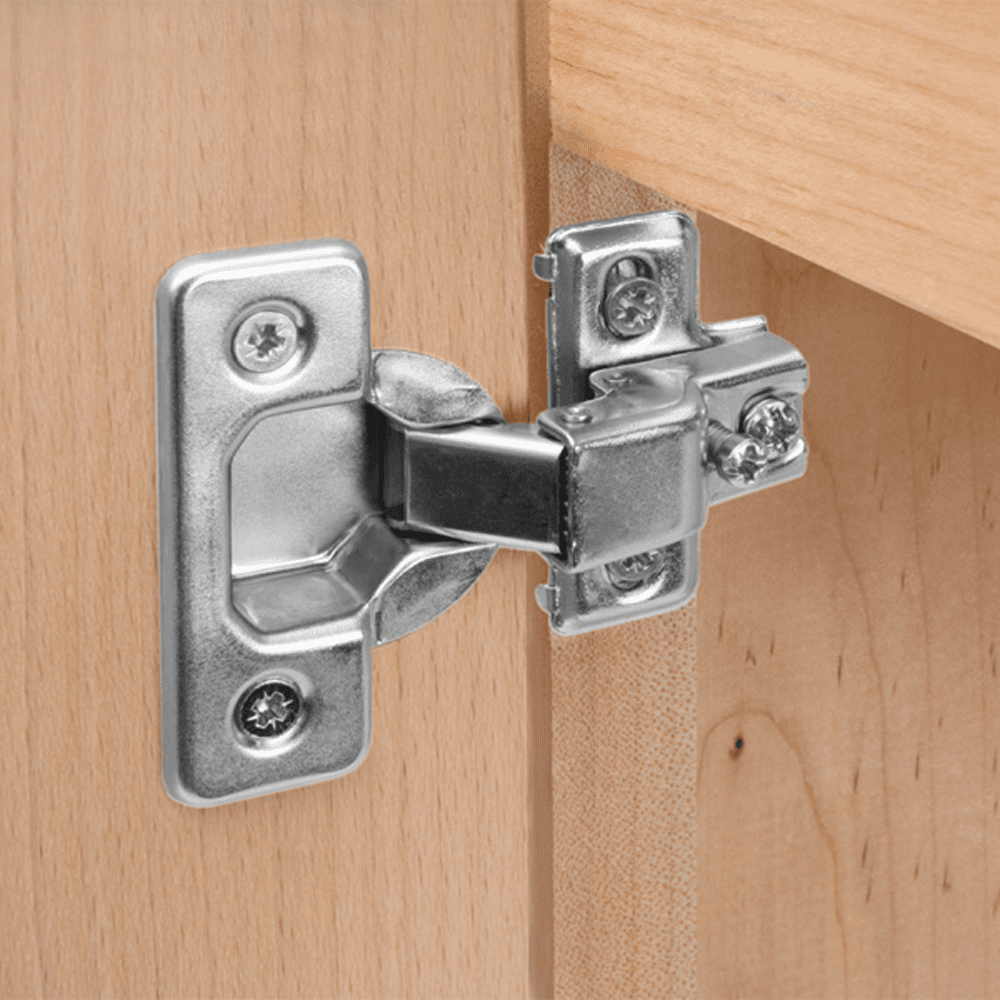

TEC 872 110° Opening Euro Face Frame Hinge, 45mm Boring Pattern, Self-Closing, 1/2" Overlay, Dowelled
Item # GTEC872VS8-45
•Mfr # 43729-17
Product Details
Features:
• 1/2" overlay achievable on profile door
• 3-way adjustability
• All-metal hinge and baseplate
• 42mm and 45mm dowel spreads
• Tight gap between door and frame
• Minimal protrusion back into cabinet
• 1/2" overlay achievable on profile door
• 3-way adjustability
• All-metal hinge and baseplate
• 42mm and 45mm dowel spreads
• Tight gap between door and frame
• Minimal protrusion back into cabinet
Specifications
| Box Quantity | 500 |
| Mounting Type | Dowelled |
| Overlay | 1/2" |
| Closing Type | Self-Closing |
| Opening Angle | 110° |
| Hinge Type | Euro Face Frame |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 11mm |
| Material | Steel |
| Cabinet Type | Face Frame |
