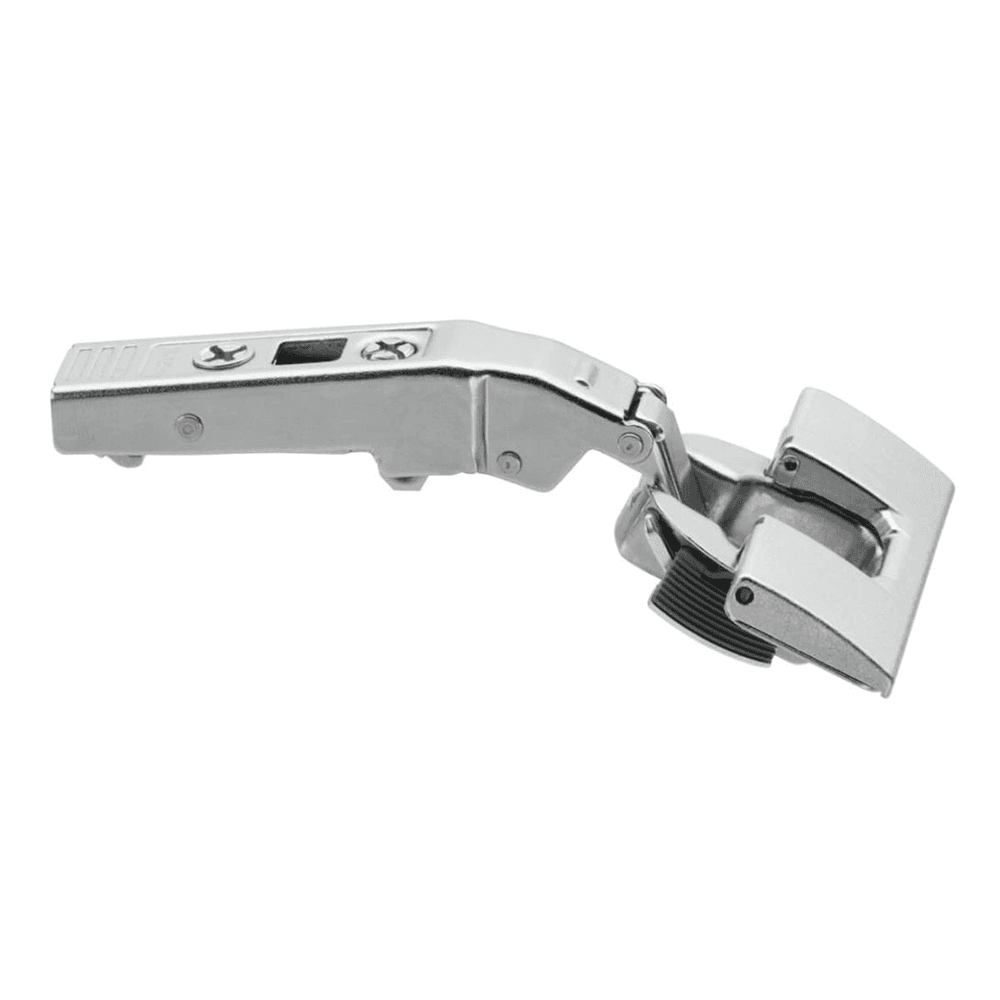

Clip Top -30° Angled 110° Opening Hinge, 45mm Boring Pattern, Self-Closing, Overlay, Nickel-Plated, Inserta
Item # B79A5491T
•Mfr # 79A5491BT
$6.54
/Each
50 items
$6.04/Each
250 items
$5.78/Each
Hinge Type: -30° Angled
Min Order: 1
Quantity Multiple by: 1
Product Details
Angled hinges provide a tremendous array of possibilities for the professional cabinet designer. Specifically designed for panel constructed (frameless) cabinets, the system accommodates cabinet front angles from -45˚ to +45˚, in 5˚ increments. This is achieved by combining any of ten angled hinges, or three standard hinges with a wedge spacer and any of five standard CLIP mounting plates.
All CLIP top hinges feature "spiral tech" depth adjustment which eliminates loosening and retightening the adjustment screws. When the doors are ready to be attached to the cabinet, the time-proven CLIP mechanism connects the hinge arm to the mounting plate, again without tools. All components are nickel plated and have self-closing action, eliminating the need for additional hardware.
Features:
• Hinge cup assembly: INSERTA
• Hinge cup material: Steel hinge cup
• Closing mechanism: with spring
• Side adjustment: +/- 2 mm
• Depth adjustment: +/- 2 mm, convenient with spiral screw
All CLIP top hinges feature "spiral tech" depth adjustment which eliminates loosening and retightening the adjustment screws. When the doors are ready to be attached to the cabinet, the time-proven CLIP mechanism connects the hinge arm to the mounting plate, again without tools. All components are nickel plated and have self-closing action, eliminating the need for additional hardware.
Features:
• Hinge cup assembly: INSERTA
• Hinge cup material: Steel hinge cup
• Closing mechanism: with spring
• Side adjustment: +/- 2 mm
• Depth adjustment: +/- 2 mm, convenient with spiral screw
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Mounting Type | Tool-Free |
| Overlay | Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 110° |
| Hinge Type | -30° Angled |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 13mm |
| Material | Steel |
| Cabinet Type | Frameless |
