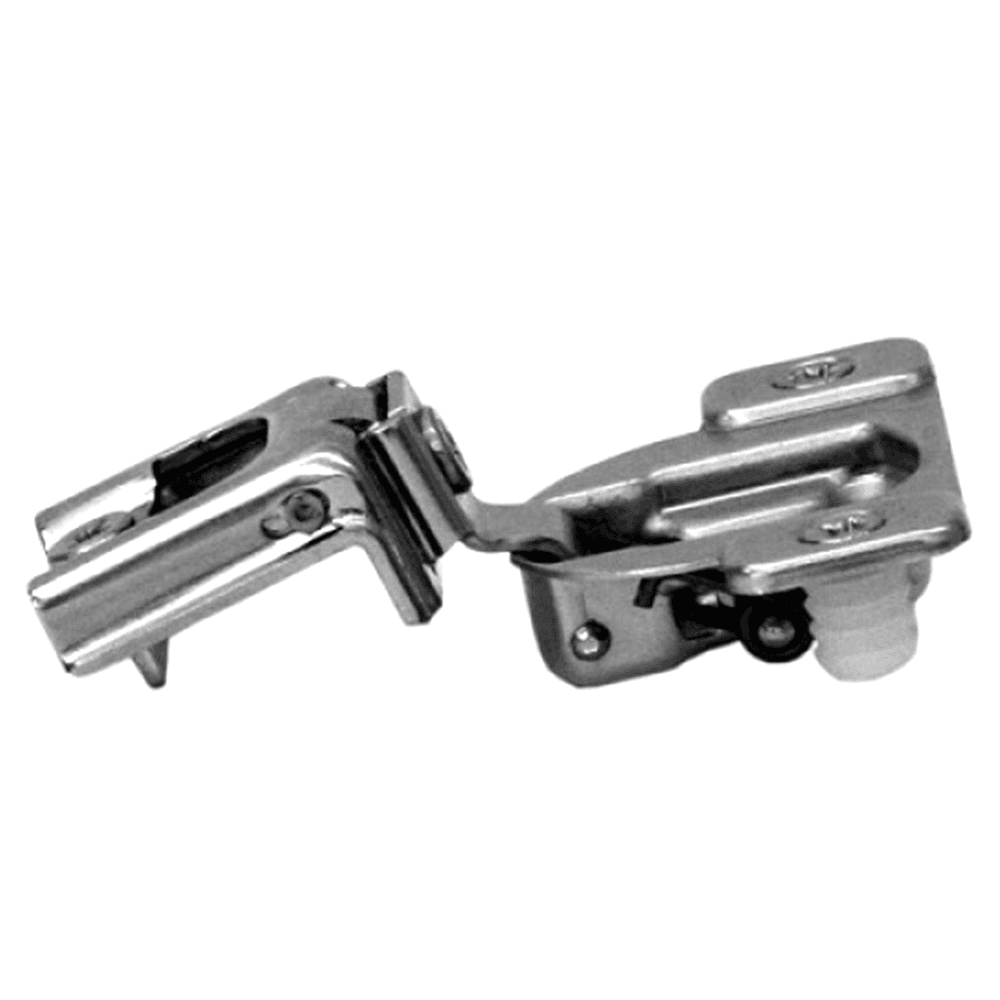

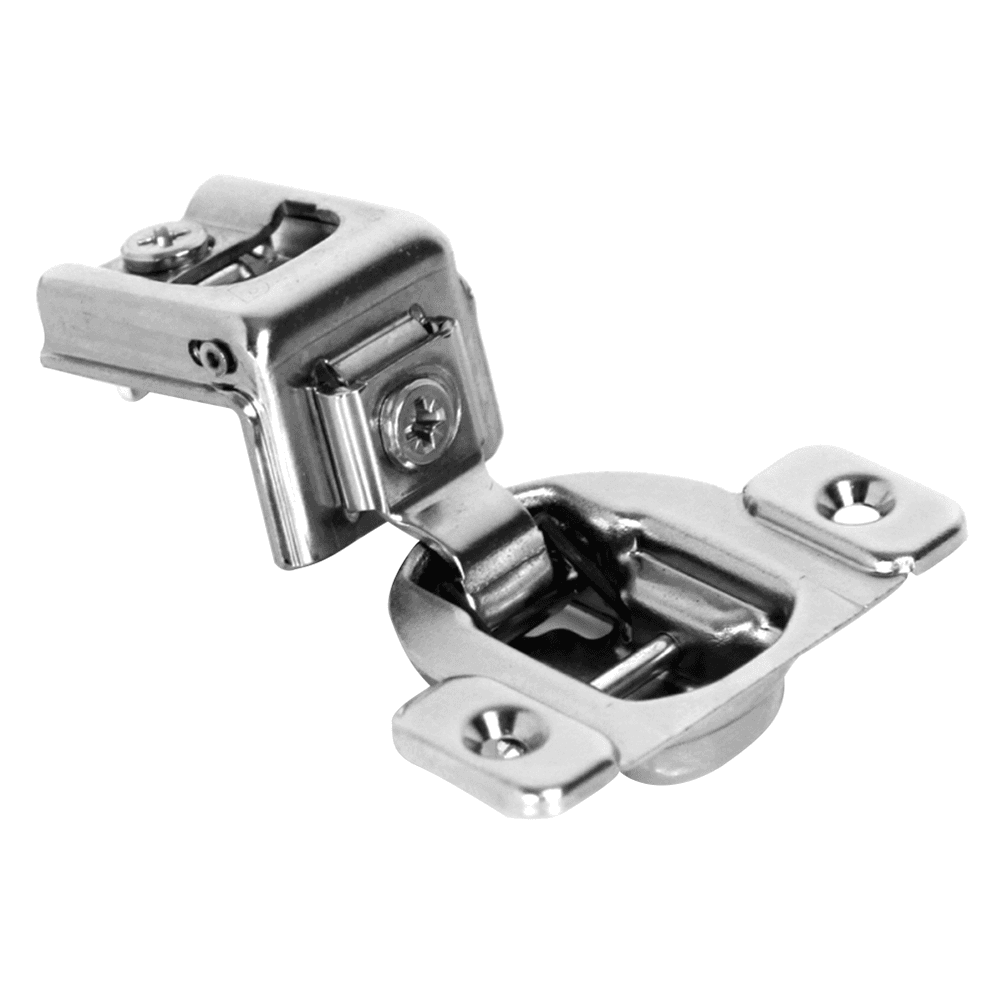

Compact 38C 107° Opening Wrap-Around Face Frame Hinge, 45mm Boring Pattern, Self-Closing, 1-3/8" Overlay, Dowelled
Item # B38C358.22
•Mfr # 38C358C.22
$1.83
/Each
300 items
$1.80/Each
1500 items
$1.72/Each
Mounting Type: Dowelled
Overlay: 1-3/8"
In Stock
325 in stock at Brea, CA
Min Order: 1
Qty mult. by: 1
Product Details
Features:
• Opening angle: 107˚
• Closing mechanism: With spring
• Plate arm design and it's assembly: Wrap around, for pre-hanging
• Frame thickness: 19 mm
• Hinge cup material: Steel hinge cup , Nickel-plated
• Hinge cup assembly: Screw-on
• Height adjustment: +/-3.2mm, with elongated hole
• Opening angle: 107˚
• Closing mechanism: With spring
• Plate arm design and it's assembly: Wrap around, for pre-hanging
• Frame thickness: 19 mm
• Hinge cup material: Steel hinge cup , Nickel-plated
• Hinge cup assembly: Screw-on
• Height adjustment: +/-3.2mm, with elongated hole
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Downloads
Specifications
| Box Quantity | 300 |
| Product Type | |
| Mounting Type | Dowelled |
| Overlay | 1-3/8" |
| Closing Type | Self-Closing |
| Opening Angle | 107° |
| Model | |
| Hinge Type | Wrap-Around Face Frame |
| Finish | Nickel-Plated |

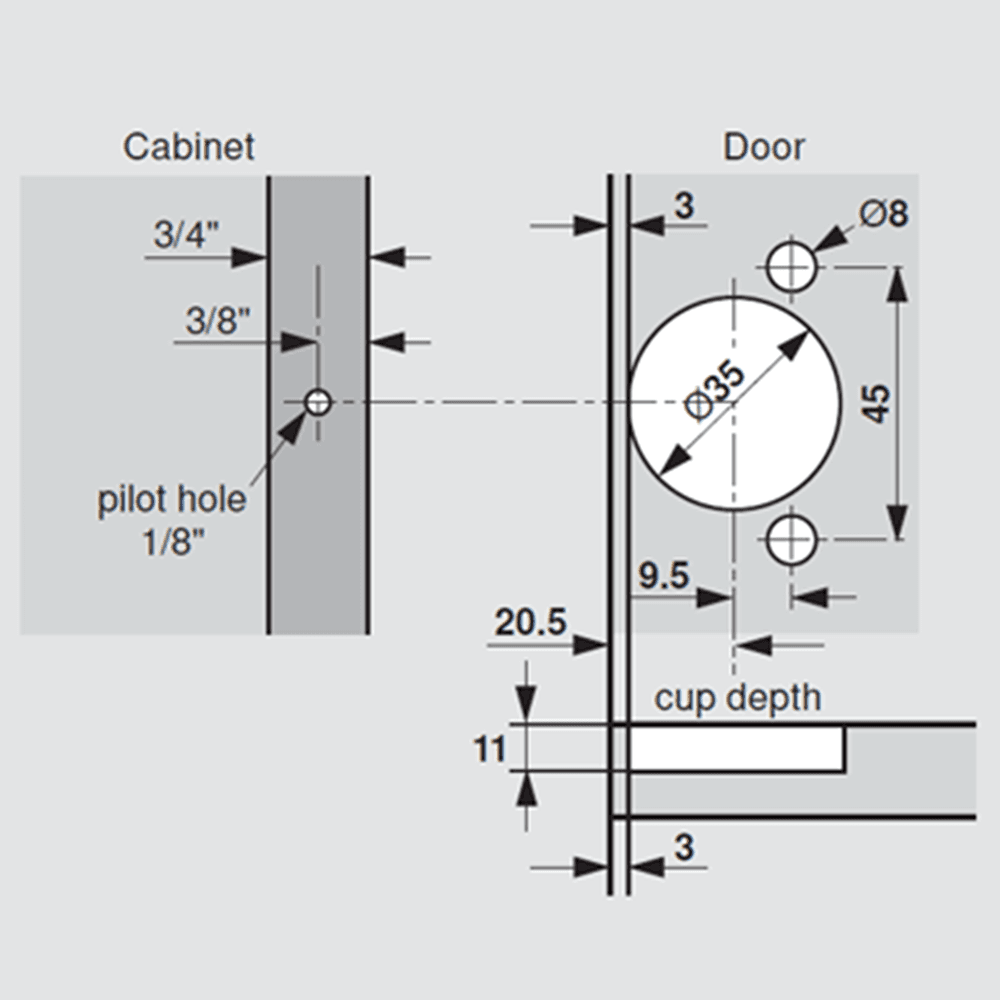

| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 11mm |
| Material | Steel |
| Cabinet Type | Face Frame |
