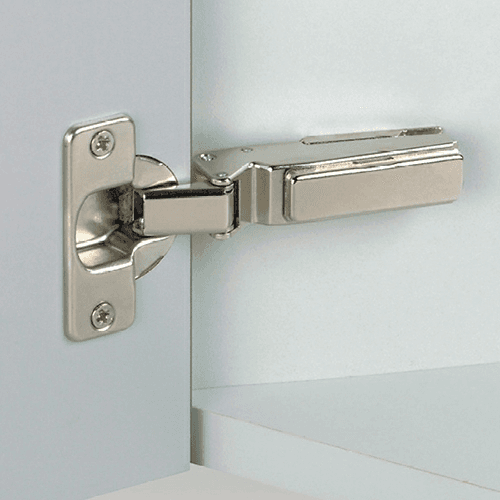

Nexis -24° Angle Corner 125° Opening Hinge, 45mm Boring Pattern, Self-Closing, Overlay, Dowelled
Item # GNX148.429.54.4515
•Mfr # DISCONTINUED
Product Details
Features:
• Angled hinges are designed for frameless and face frame cabinets
• Nexis positive and negative angle hinges have cup depths of 12.6mm (Nexis)
• Hinge cup edge drilling distance of 3mm to 6mm
• Single screw side-to-side adjustment of +1mm to -3mm
• Boring pattern of 45mm and 48mm
• Positive angle hinges can be used with doors up to 30mm (1-3/16") thick, negative angle hinges can be used with doors up to 19mm (3/4") thick
• Angled hinges are designed for frameless and face frame cabinets
• Nexis positive and negative angle hinges have cup depths of 12.6mm (Nexis)
• Hinge cup edge drilling distance of 3mm to 6mm
• Single screw side-to-side adjustment of +1mm to -3mm
• Boring pattern of 45mm and 48mm
• Positive angle hinges can be used with doors up to 30mm (1-3/16") thick, negative angle hinges can be used with doors up to 19mm (3/4") thick
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
| Mounting Type | Dowelled |
| Overlay | Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 125° |
| Hinge Type | -24° Angled |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 12.6mm |
| Cabinet Type | Frameless |
