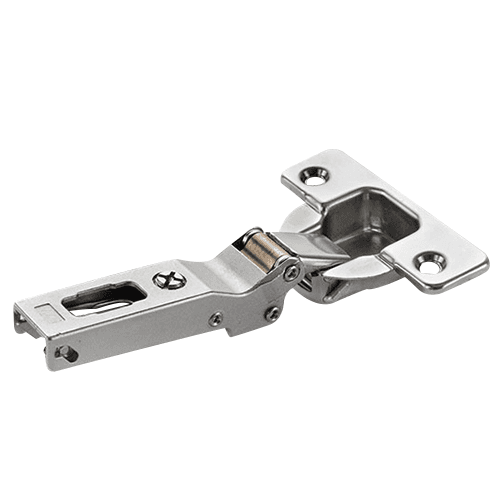

Series 200 -45° Angled Corner 94° Opening Hinge, Self-Closing, Overlay, Nickel-Plated, Rapido
Item # SALC277H99
•Mfr # C27BH99
Mounting Type:
Product Details
The Series 200 make up an integrated system of hinges developed to provide a solution to any situation involving concealed hinges.
Features:
• Hinges for wooden doors with negative angled assembly
• Dimensions of the 35mm cup
• Possible drilling distance on the door (K): from 3mm to 6mm
• Compatible with all traditional Series 200 mounting plates and with all Domi snap-on mounting plates
Features:
• Hinges for wooden doors with negative angled assembly
• Dimensions of the 35mm cup
• Possible drilling distance on the door (K): from 3mm to 6mm
• Compatible with all traditional Series 200 mounting plates and with all Domi snap-on mounting plates
Specifications
| Box Quantity | 150 |
| Mounting Type | Rapido |
| Overlay | Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 94ø |
| Hinge Type | -45˚Angled |
| Finish | Nickel-Plated |
| Cup Diameter | 35mm |
| Cup Depth | 11mm |
