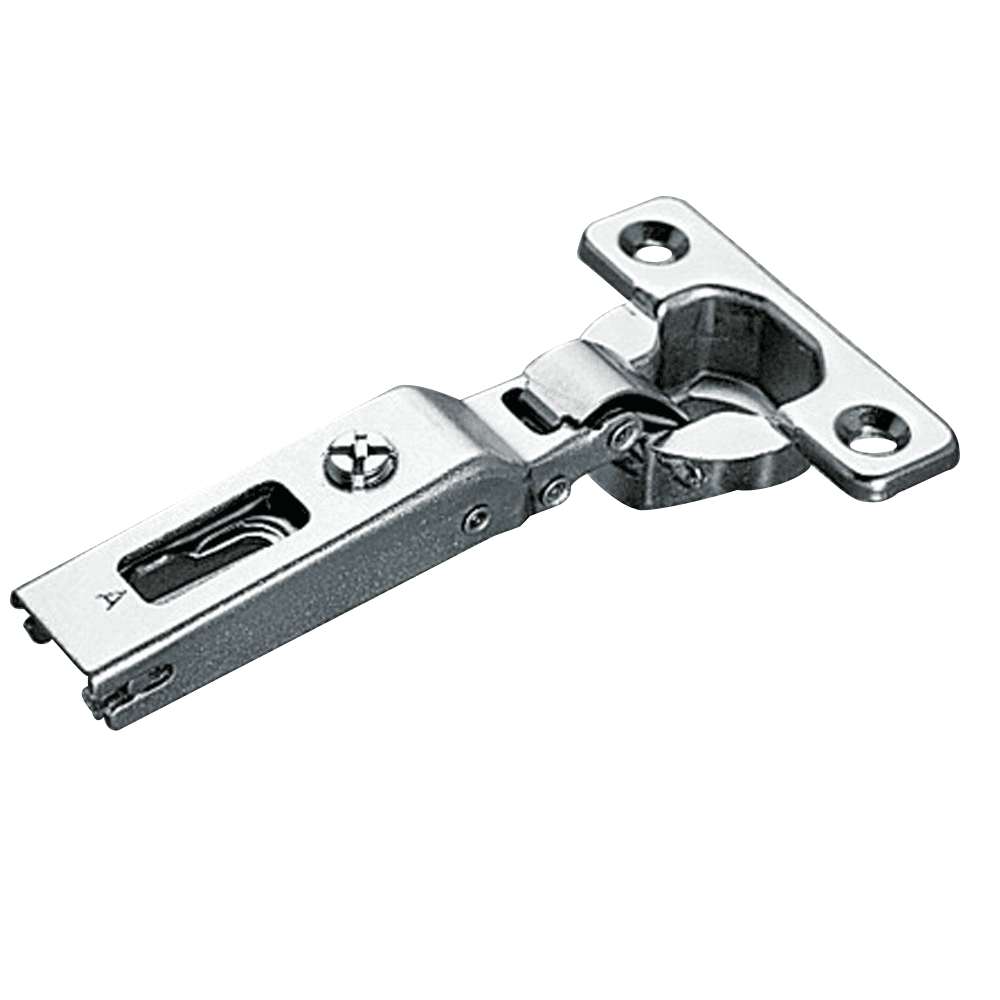

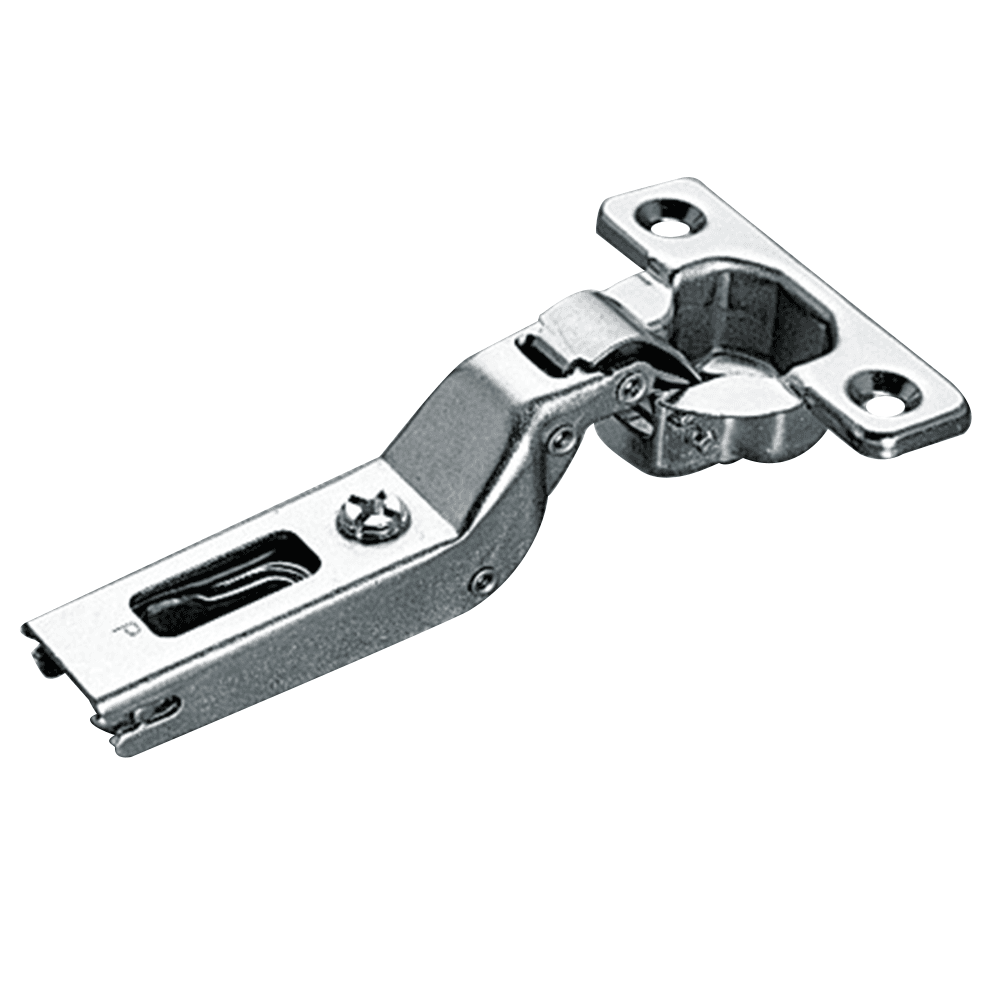

Series 400 94° Opening Mini Hinge, 38mm Bore Pattern, Self-Closing, Inset, Nickel-Plated, Screw-On
Item # SALC4A7P99
•Mfr # C4A7P99
Product Details
Features:
• 26 mm cup diameter
• Possible drilling distance on the door (K): from 3 to 8 mm
• Compatible with all traditional Series 200 mounting plates and with all Domi snap-on mounting plates
• 26 mm cup diameter
• Possible drilling distance on the door (K): from 3 to 8 mm
• Compatible with all traditional Series 200 mounting plates and with all Domi snap-on mounting plates
Specifications
| Box Quantity | 1 |
| Mounting Type | Screw-On |
| Overlay | Inset Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 94° |
| Hinge Type | Mini Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 38mm |
| Cup Diameter | 26mm |
| Cup Depth | 11.5mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
