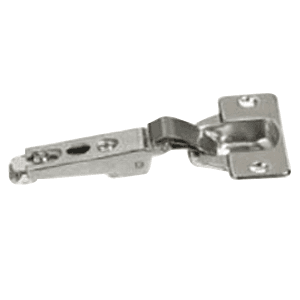

Nexis 95° Opening Hinge, 48mm Bore Pattern, Self-Closing, Full Overlay, Nickel-Plated, Screw-On
Item # G146.425.53.0015
•Mfr # F015072820225
Product Details
All metal hinge. 40mm cup, Self-Closing. Self-Close compatible. Minimal cup depth of 11mm. Designed for thin or profile doors. Excellent minimum gap requirements with door thicknesses up to 20mm.
Specifications
| Box Quantity | 125 |
| Product Type | |
| Mounting Type | Screw-On |
| Overlay | Full Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 95° |
| Model | |
| Hinge Type | Standard Euro Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 48mm |
| Cup Diameter | 35mm |
| Cup Depth | 11mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
