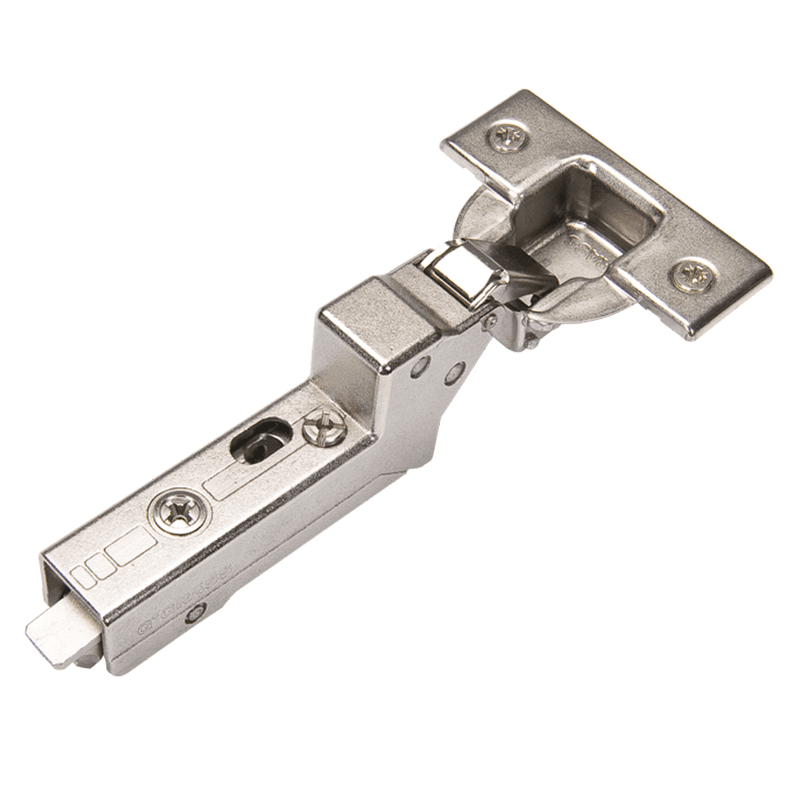

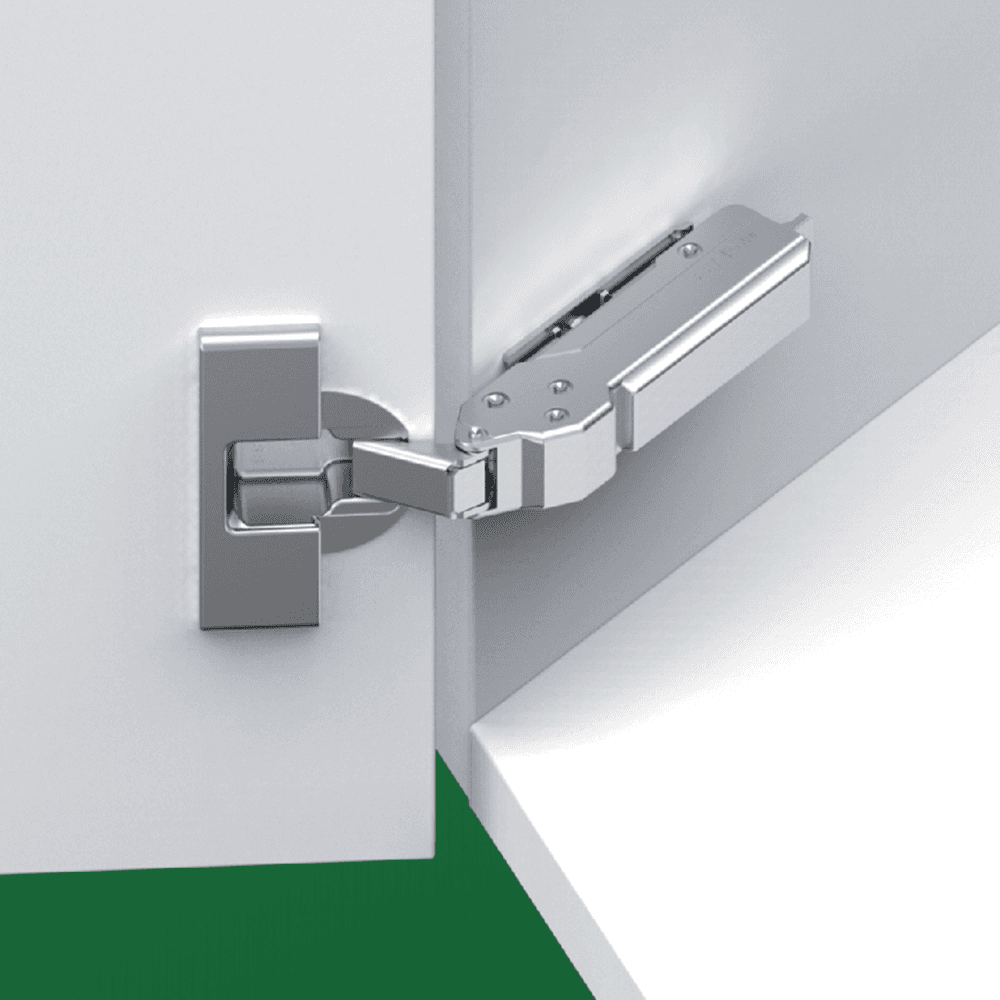

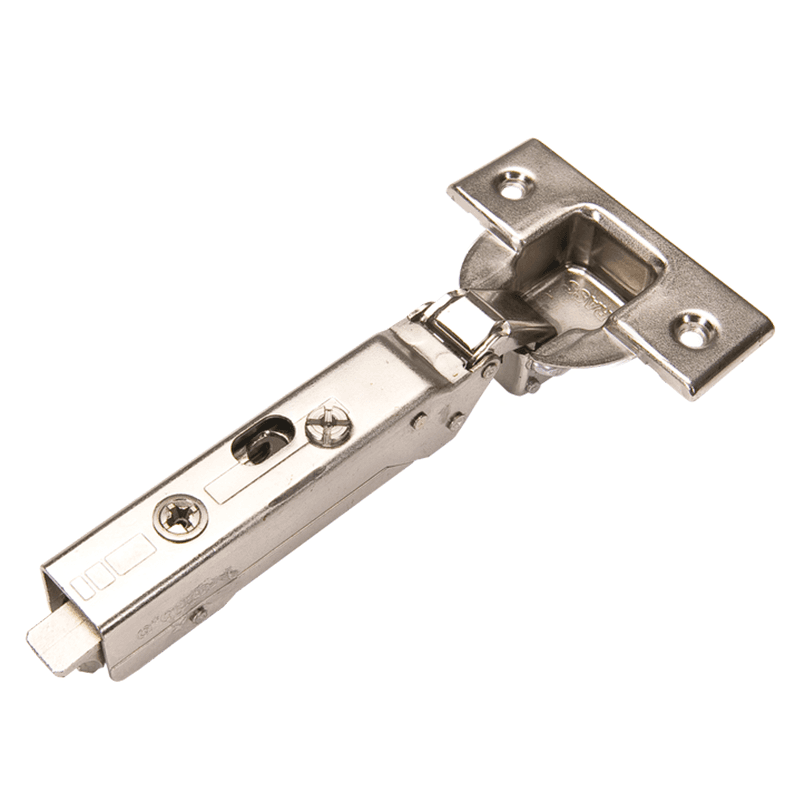

Tiomos +37° Angled Corner 110° Opening Hinge, 45mm Boring Pattern, Self-Closing, Overlay, Nickel-Plated, Screw-On
Item # GTIOF045138469223
•Mfr # F045138469223
Product Details
Features:
• Screw-on +37˚ angled corner hinge
• For 37˚ angle corner cabinets
• 110˚ opening angle
• 3-dimensional adjustment with suitable base plate
• Soft-close or Self-close hinges available
• Convenient depth adjustment with worm gear
• Screw-on +37˚ angled corner hinge
• For 37˚ angle corner cabinets
• 110˚ opening angle
• 3-dimensional adjustment with suitable base plate
• Soft-close or Self-close hinges available
• Convenient depth adjustment with worm gear
Specifications
| Box Quantity | 100 |
| Mounting Type | Screw-On |
| Overlay | Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 110° |
| Hinge Type | +37° Angled |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 12.6mm |
| Material | Steel/Die-Cast Zinc |
| Cabinet Type | Frameless |
