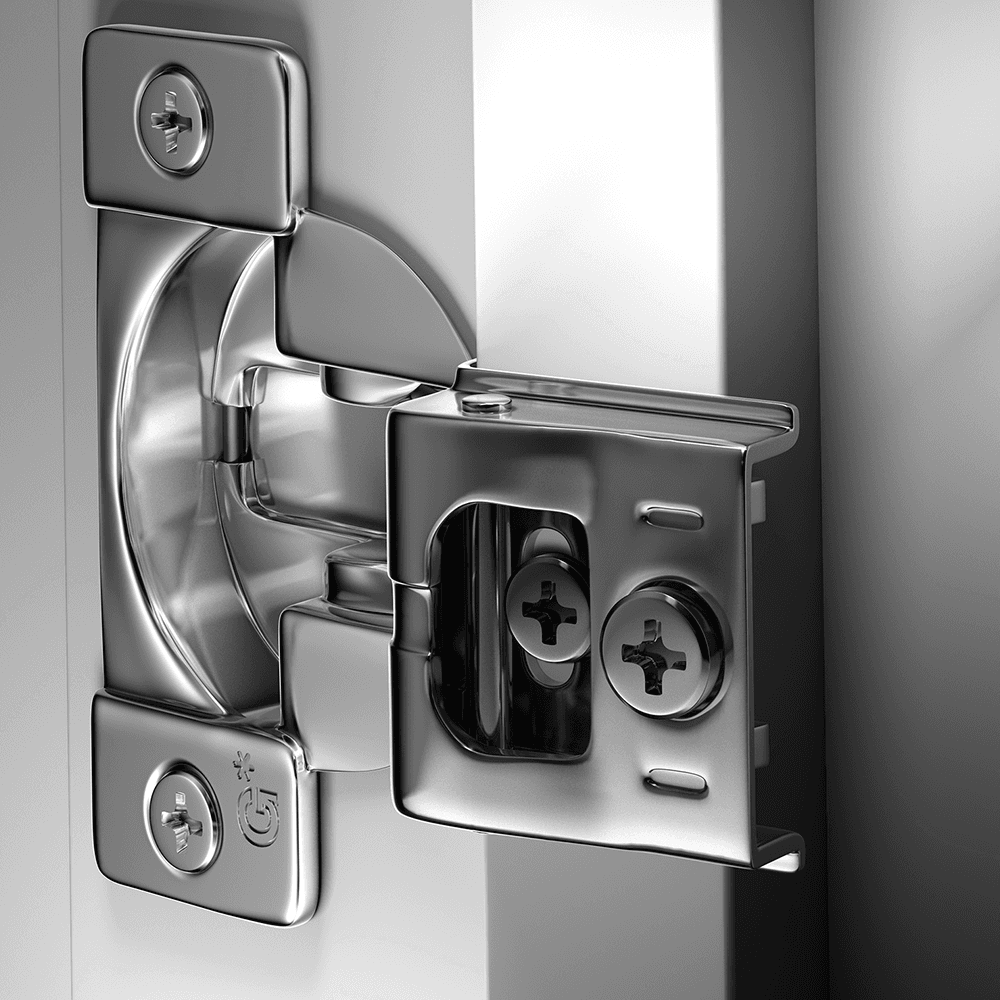

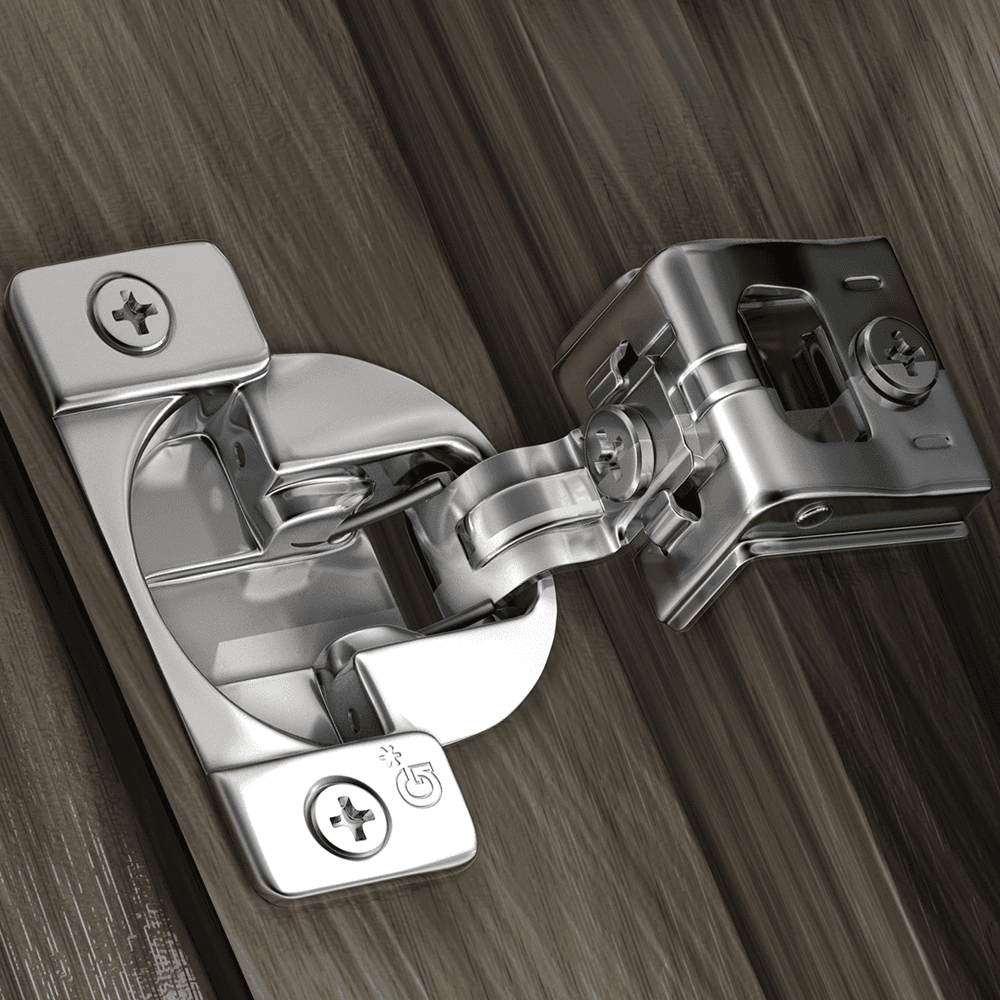

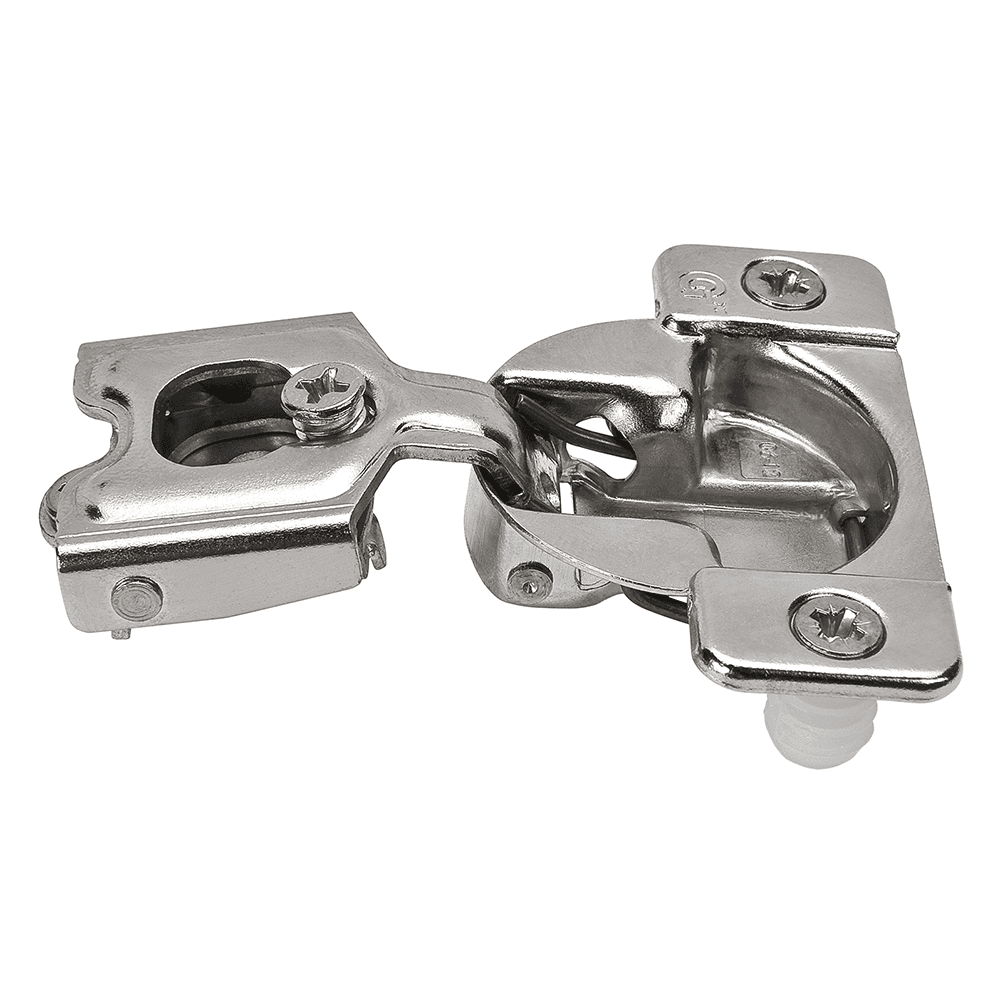

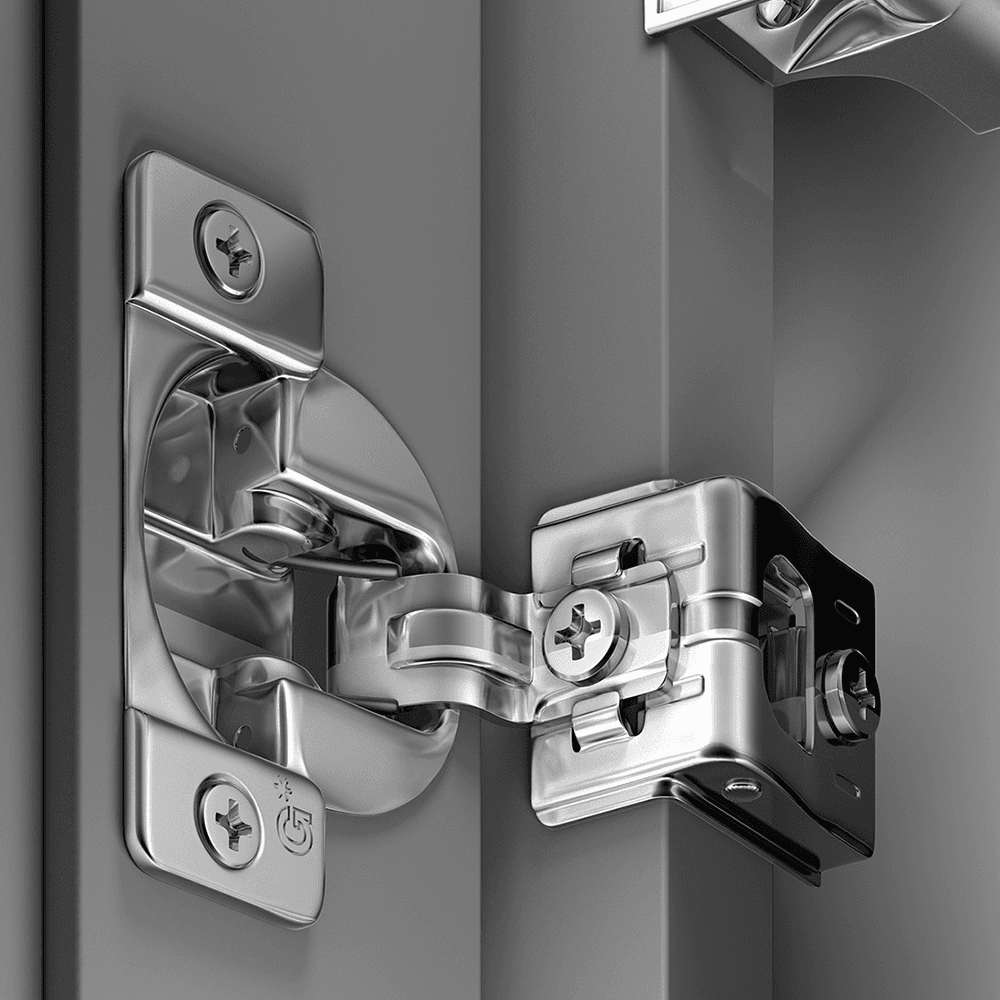

TEC 864 108° Opening Wrap-Around Face Frame Hinge, 42mm Boring Pattern, Soft-Closing, 7/16" Overlay, Dowelled
Item # GTEC02809A-15
•Mfr # 02809A-15
Product Details
Features:
• Soft-close damper is premounted in the hinge cup
• One piece hinge and base plate combination
• Three dimensional adjustment. 10.7 mm (7/16") cup drilling depth
• Front locating tabs position hinge on face frame
• Cam side adjustment
• Cam depth adjustment
• Height adjustment at mounting screw.
• Soft-close damper is premounted in the hinge cup
• One piece hinge and base plate combination
• Three dimensional adjustment. 10.7 mm (7/16") cup drilling depth
• Front locating tabs position hinge on face frame
• Cam side adjustment
• Cam depth adjustment
• Height adjustment at mounting screw.
Specifications
| Box Quantity | 300 |
| Mounting Type | Dowelled |
| Overlay | 7/16" |
| Closing Type | Soft-Closing |
| Opening Angle | 108° |
| Hinge Type | Wrap-Around Face Frame |
| Finish | Nickel-Plated |
| Boring Pattern | 42mm |
| Cup Diameter | 35mm |
| Cup Depth | 11mm |
| Material | Steel |
| Cabinet Type | Face Frame |
