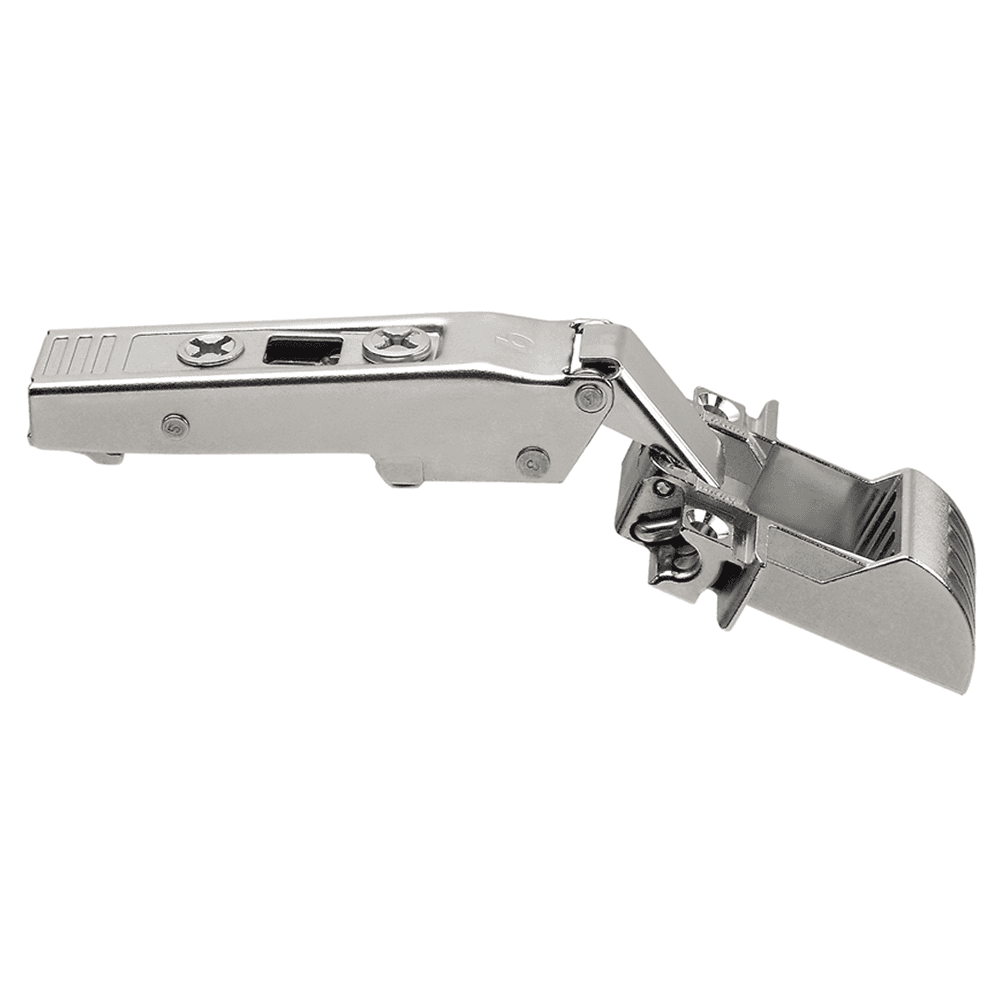

Clip Top 120° Opening Narrow Aluminum Door Hinge, 45mm Bore Pattern, Self-Closing, Full Overlay, Nickel-Plated, Screw-On
Item # B73T550AB
•Mfr # 73T550AB
$0.43
/Each
Min Order: 1
Qty mult. by: 1
Product Details
Clip top hinges are concealed hinges for cabinet doors, meaning they cannot be seen when the door is closed. These hinges are easy to use and they work in almost any hinge application because of the wide variety of mounting plates available. These Euro hinges can be used in frameless and face frame cabinets.
Features
Tool-free assembly\r
Easy three-dimensional adjustment
Features
Tool-free assembly\r
Easy three-dimensional adjustment
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Downloads
Specifications
Box Quantity | 1 |
Product Type | |
Mounting Type | Screw-On |
Overlay | Full Overlay |
Closing Type | Self-Closing |
Opening Angle | 120° |
Model | |
Hinge Type | Narrow Aluminum Door Hinge |
Finish | Nickel-Plated |
Boring Pattern | 45mm |
Cup Diameter | 35mm |
Cup Depth | 11.4mm |
Material | Steel |
Cabinet Type | Face Frame/Frameless |
