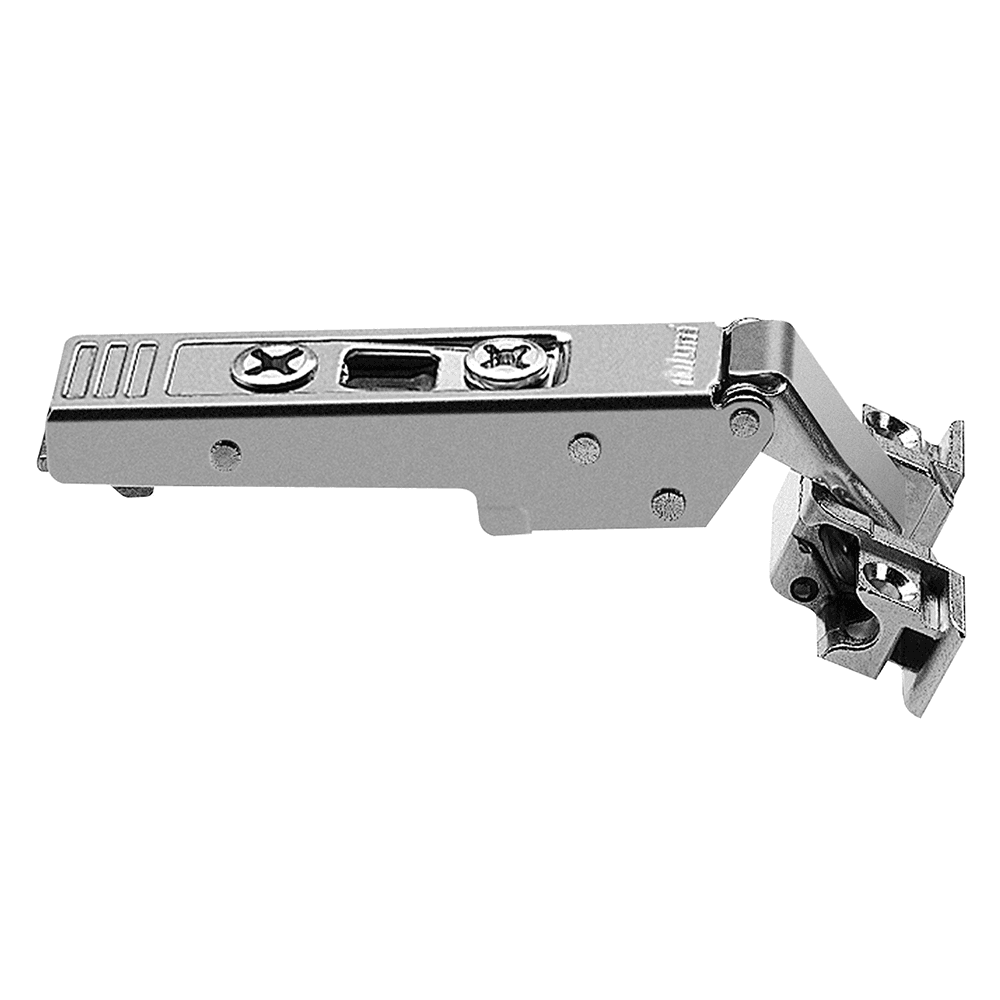

Clip Top 120° Opening Narrow Aluminum Door Hinge, 45mm Bore Pattern, Free-Swinging, Full Overlay, Nickel-Plated, Screw-On
Item # B72T550A.TL
•Mfr # 72T550A.TL
$5.69
/Each
20 items
$5.22/Each
Min Order: 1
Quantity Multiple by: 1
Product Details
Features:
• Opening angle: 120?
• Closing mechanism: unsprung
• Cranking: Corner merge application
• Hinge cup material: Zinc hinge cup
• Hinge cup assembly: screw-on
• Side adjustment: +/- 2 mm
• Depth adjustment: plus 3/minus 2 mm, convenient with spiral screw
• Opening angle: 120?
• Closing mechanism: unsprung
• Cranking: Corner merge application
• Hinge cup material: Zinc hinge cup
• Hinge cup assembly: screw-on
• Side adjustment: +/- 2 mm
• Depth adjustment: plus 3/minus 2 mm, convenient with spiral screw
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Mounting Type | Screw-On |
| Overlay | Full Overlay |
| Closing Type | Free-Swinging |
| Opening Angle | 120° |
| Model | |
| Hinge Type | Narrow Aluminum Door Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 13mm |
| Material | Steel/Die-Cast Zinc |
| Cabinet Type | Face Frame/Frameless |
