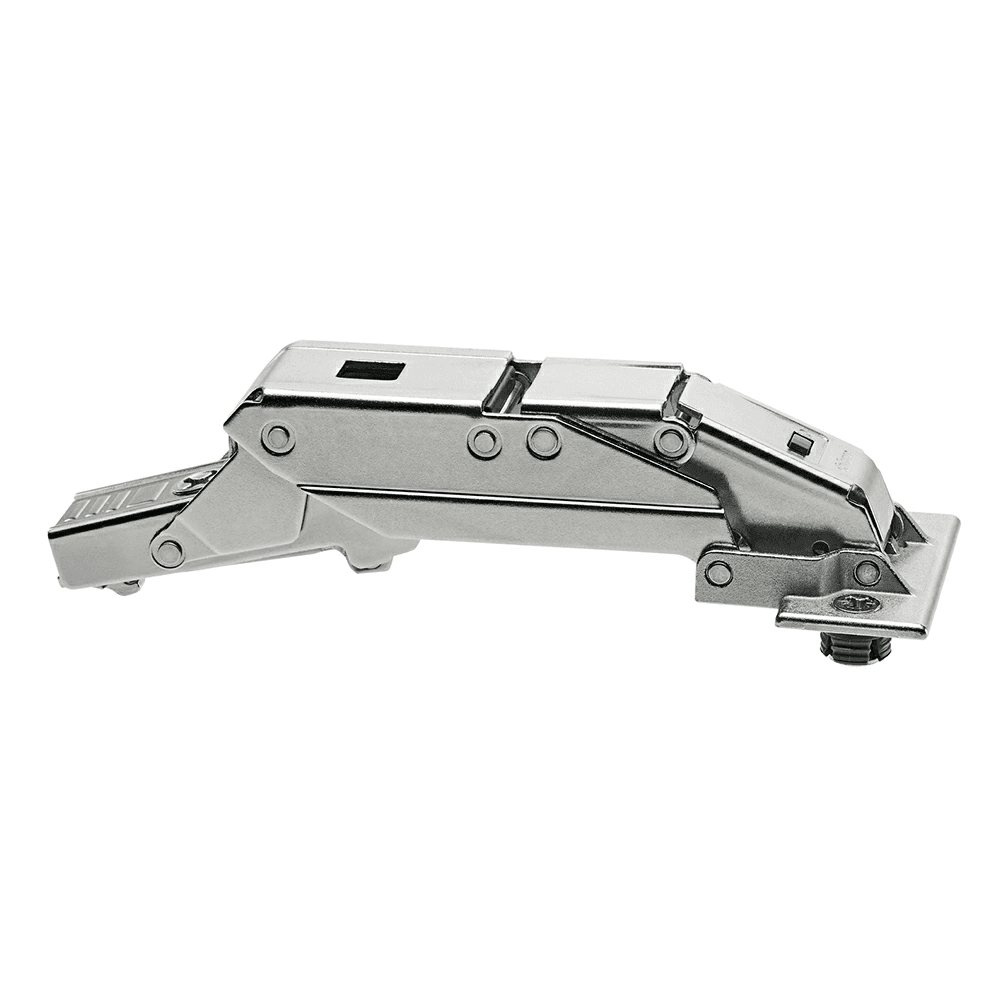

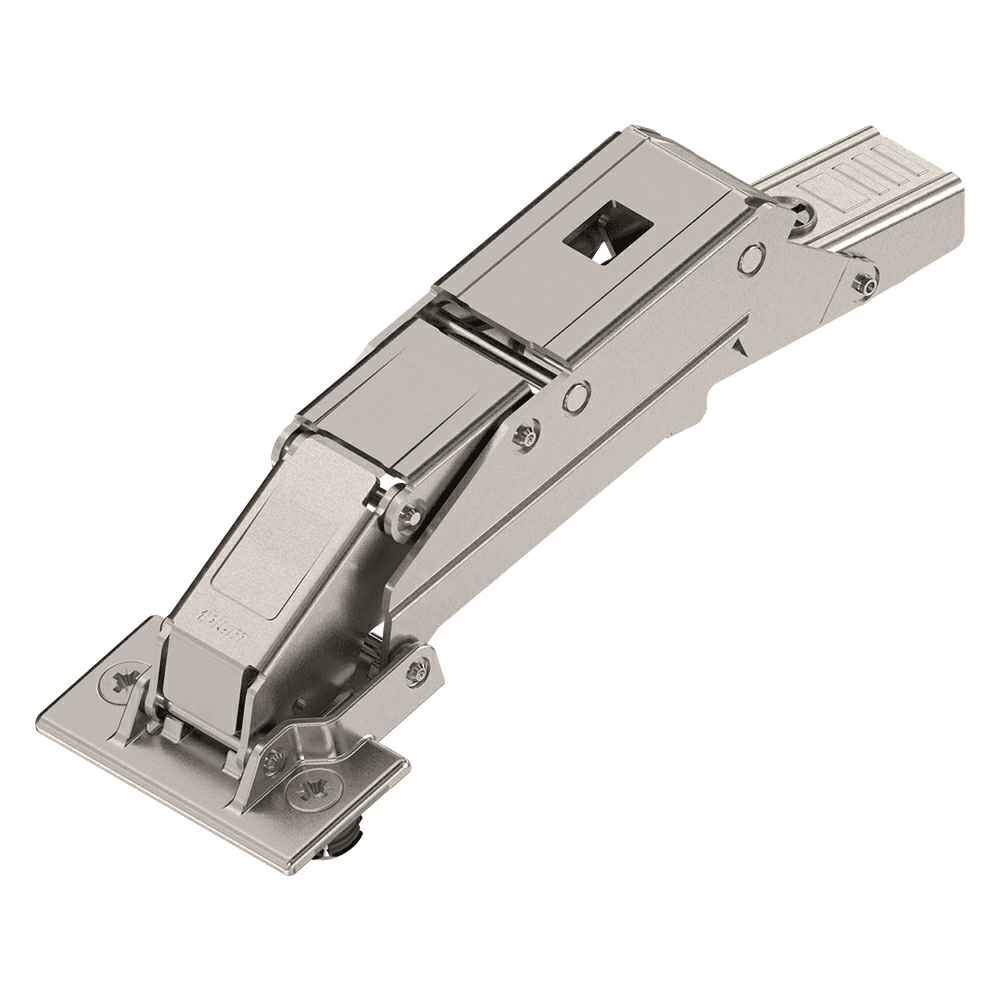

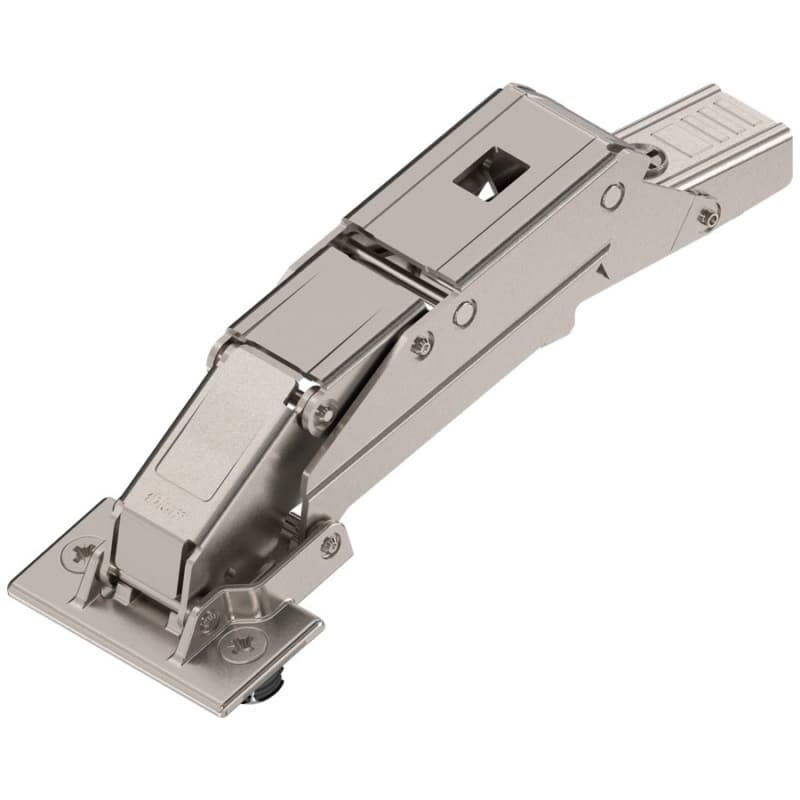

Clip Top 110° Opening Hinge, 32mm Boring Pattern, Free-Swing, Full Overlay, Nickel-Plated, Expando
25 items
125 items
Product Details
The revolutionary design for CLIP top BLUMOTION for thin doors was reimagined from the inside out. Our soft close technology has been integrated into the hinge, eliminating the need for a hinge cup. With a 110° opening angle and zero protrusion, this solution can work for a variety of applications.
Features:
• 110° opening angle
• Integrated BLUMOTION
• Deactivation for small/light doors
• Zero protrusion
• Overload safety feature
• Compatible with existing CLIP mounting plates
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Downloads
Specifications
| Mounting Type | Expanding Dowels |
| Overlay | Full Overlay |
| Closing Type | Free-Swinging |
| Opening Angle | 110° |
| Model | |
| Hinge Type | Standard Euro Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 32mm |
| Cup Diameter | 35mm |
| Cup Depth | 11mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
