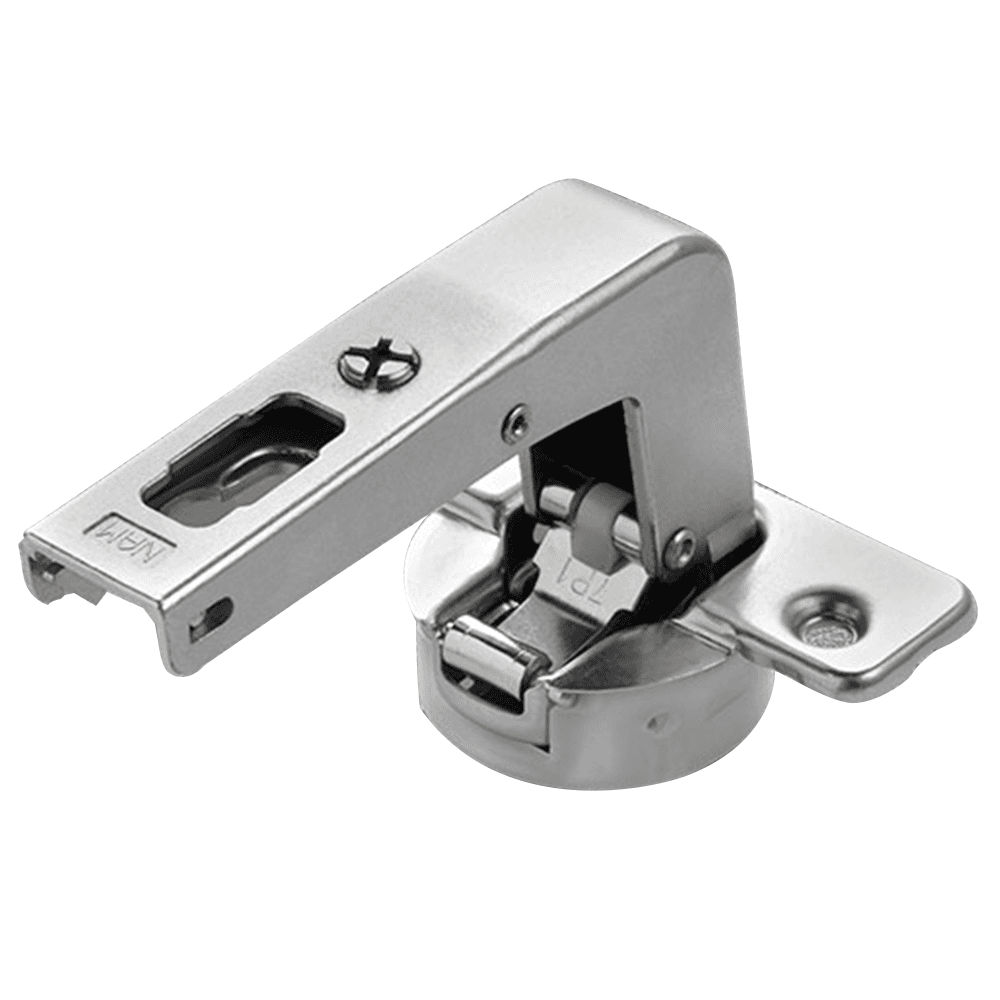

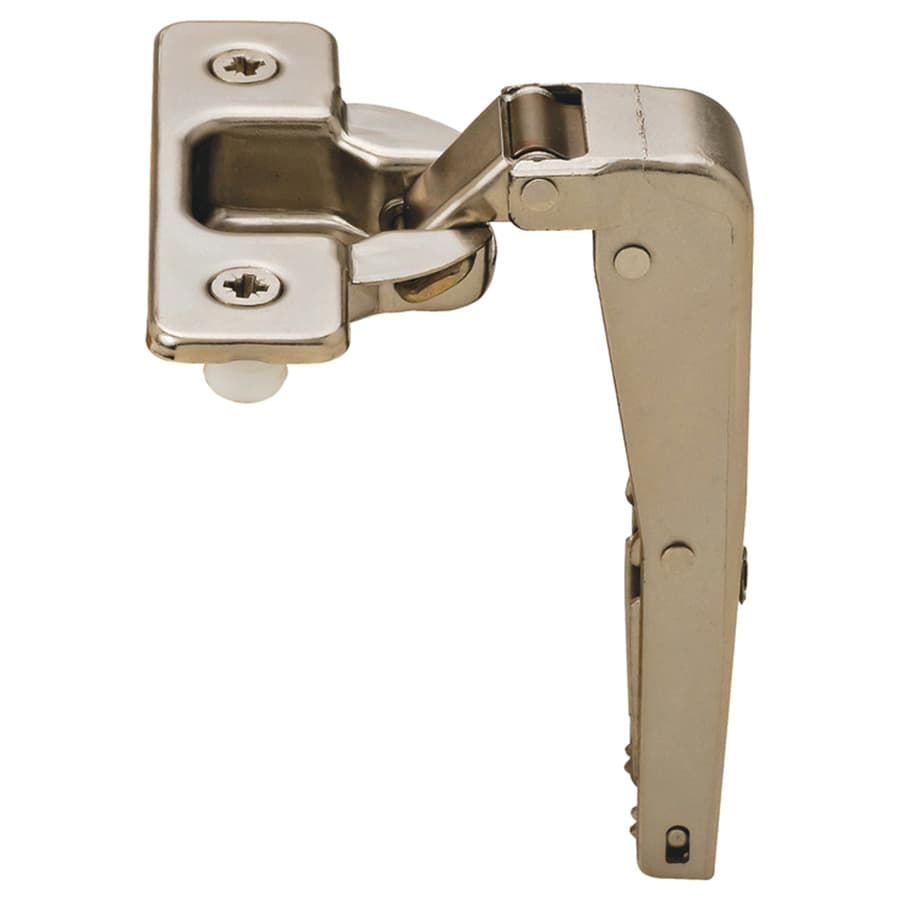

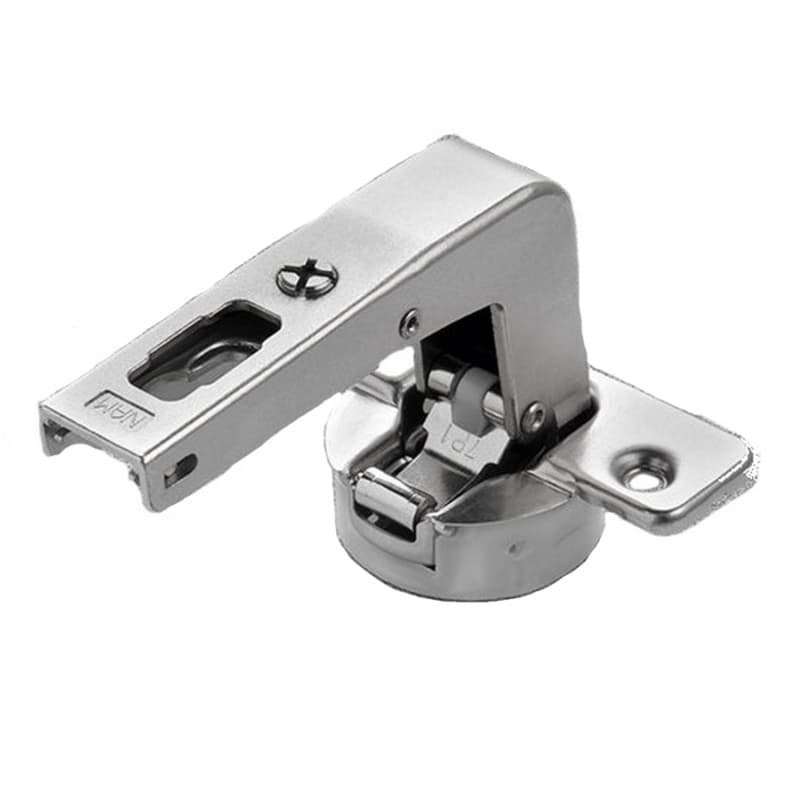

Series 700 Blind Corner 110° Opening Hinge, 45mm Bore Pattern, Silentia Soft-Closing, Overlay, Dowelled
Item # SALC7R6NE9AM
•Mfr # C7R6NE9AM
$5.71
/Each
150 items
$5.25/Each
Min Order: 1
Quantity Multiple by: 1
Product Details
Features:
• Available in Dowelled mount and Nickel-plated finish
• Silentia Series 700 positive and negative angle hinges are designed for use in both residential and commercial cabinets
• The soft-close mechanism is completely hidden from view within the hinge cup
• Silentia Series 700 positive and negative degree opening soft close hinges
• Cup depth of 13.5mm making the hinge compatible with most cabinet door profiles
• Hinge cup edge drilling distance of 3mm to 8mm
• Patented parallel side-to-side adjustment of +4.5mm to -1.5mm via hinge arm screw
• Series 700 hinges are designed to work with Salice mounting plates
• Available in Dowelled mount and Nickel-plated finish
• Silentia Series 700 positive and negative angle hinges are designed for use in both residential and commercial cabinets
• The soft-close mechanism is completely hidden from view within the hinge cup
• Silentia Series 700 positive and negative degree opening soft close hinges
• Cup depth of 13.5mm making the hinge compatible with most cabinet door profiles
• Hinge cup edge drilling distance of 3mm to 8mm
• Patented parallel side-to-side adjustment of +4.5mm to -1.5mm via hinge arm screw
• Series 700 hinges are designed to work with Salice mounting plates
Specifications
| Mounting Type | Dowelled |
| Overlay | Overlay |
| Closing Type | Soft-Closing |
| Opening Angle | 110° |
| Model | |
| Hinge Type | Blind Corner Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 13.5mm |
| Material | |
| Cabinet Type |
