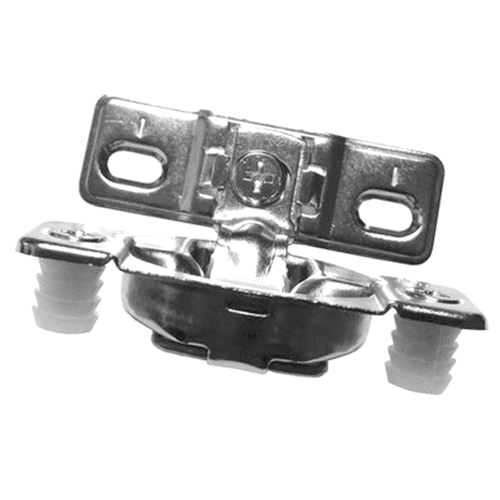

TEC 863 108° Opening Face Mount Hinge, 45mm Boring Pattern, Soft-Closing, Variable Overlay, Dowelled
Item # GTEC2294A-15
•Mfr # 02294A-15
Mounting Type: Dowelled
Product Details
Features:
• Dowelled mounting hinge, variable overlay
• Soft-close damper is pre-mounted in the hinge cup
• Adjustment switch on soft-close to regulate closing action
• One piece hinge and base plate combination
• 2-dimensional adjustment
• 11mm (7/16") cup drilling depth
• Height adjustment at mounting screw
• For overlays 1-7/16" and greater
• 85? angle reduction clip available
• Dowelled mounting hinge, variable overlay
• Soft-close damper is pre-mounted in the hinge cup
• Adjustment switch on soft-close to regulate closing action
• One piece hinge and base plate combination
• 2-dimensional adjustment
• 11mm (7/16") cup drilling depth
• Height adjustment at mounting screw
• For overlays 1-7/16" and greater
• 85? angle reduction clip available
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 300 |
| Product Type | |
| Mounting Type | Dowelled |
| Overlay | Variable |
| Closing Type | Soft-Closing |
| Opening Angle | 108° |
| Model | |
| Hinge Type | Face Mount |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 11mm |
| Material | Steel |
| Cabinet Type | Face Frame |
