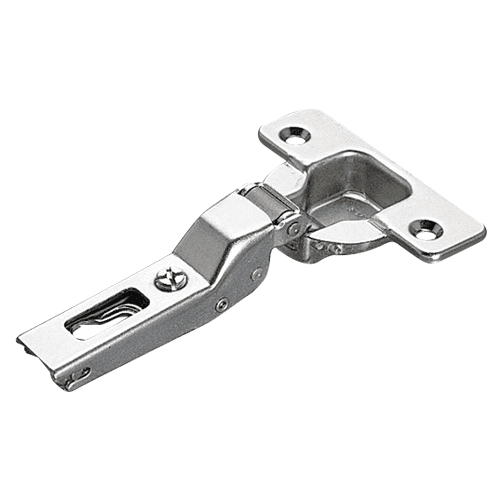

Series 200 94° Opening Thick Door Hinge, 45mm Bore Pattern, Self-Closing, Half Overlay, Nickel-Plated, Screw-On
Item # SALC2PBG99
•Mfr # C2PBG99
Product Details
Features:
• Screw-on mount
• Full overlay
• For kitchen cabinets and furniture
• For doors up to 32mm with special profiles
• 11mm deep steel cup
• Possible drilling distance on the door from 3mm to 9mm
• Compatible with all traditional Series 200 mounting plates and with all Dome snap-on mounting plates
• Compensating side adjustment from -1.5mm to +4.5mm
• Anti-sliding safety stop
• Screw-on mount
• Full overlay
• For kitchen cabinets and furniture
• For doors up to 32mm with special profiles
• 11mm deep steel cup
• Possible drilling distance on the door from 3mm to 9mm
• Compatible with all traditional Series 200 mounting plates and with all Dome snap-on mounting plates
• Compensating side adjustment from -1.5mm to +4.5mm
• Anti-sliding safety stop
Specifications
| Box Quantity | 1 |
| Mounting Type | Screw-On |
| Overlay | Half Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 105ø |
| Hinge Type | Thick Door Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 11mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
