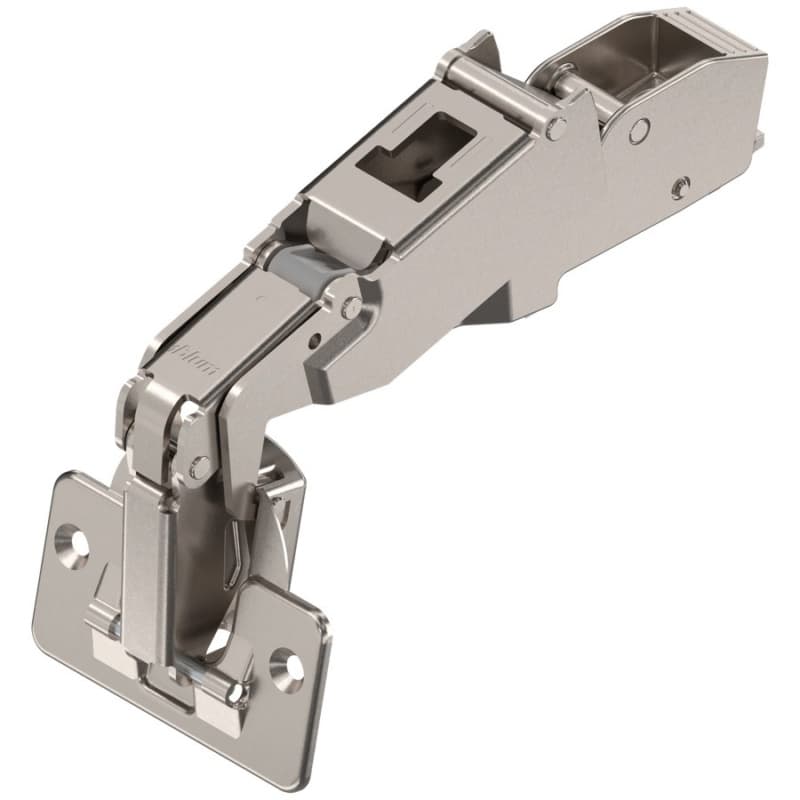

Clip Top 170° Opening Hinge, 45mm Bore Pattern, Free-Swinging, Half Overlay, Nickel-Plated, Screw-On
25 items
125 items
Product Details

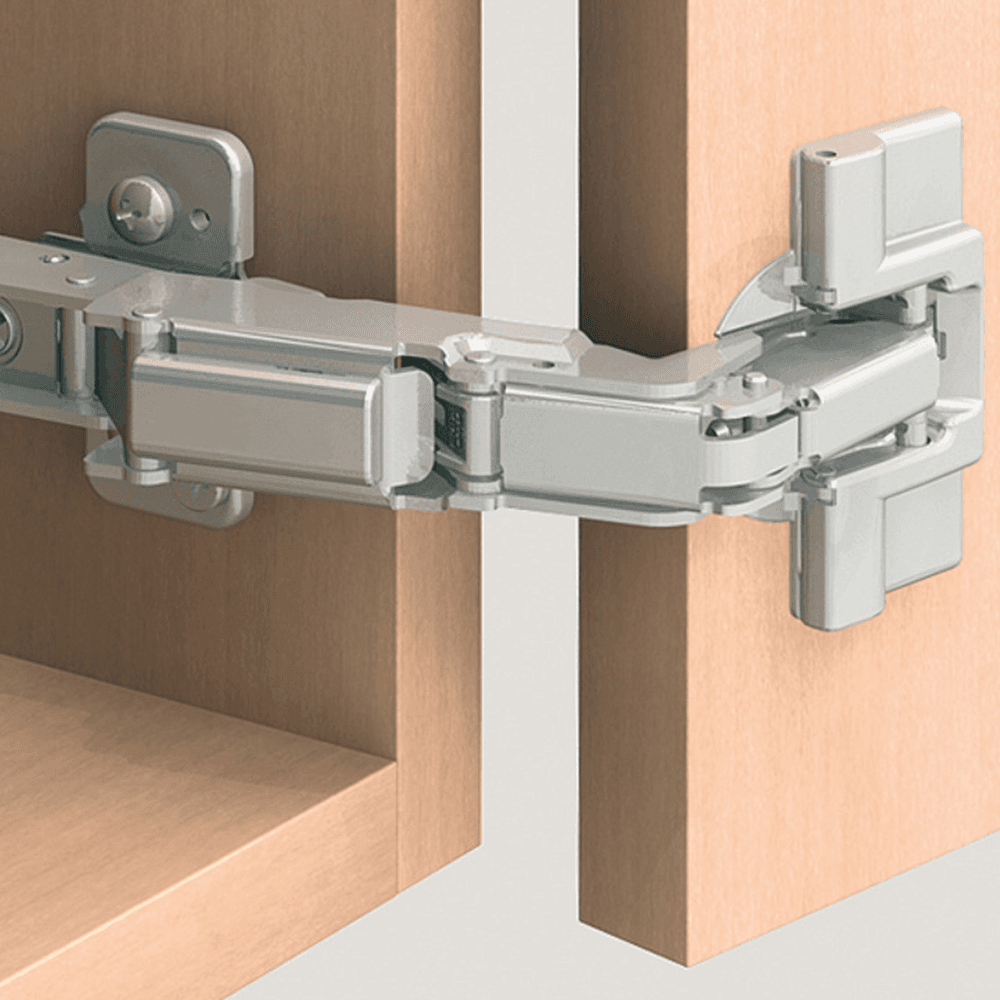

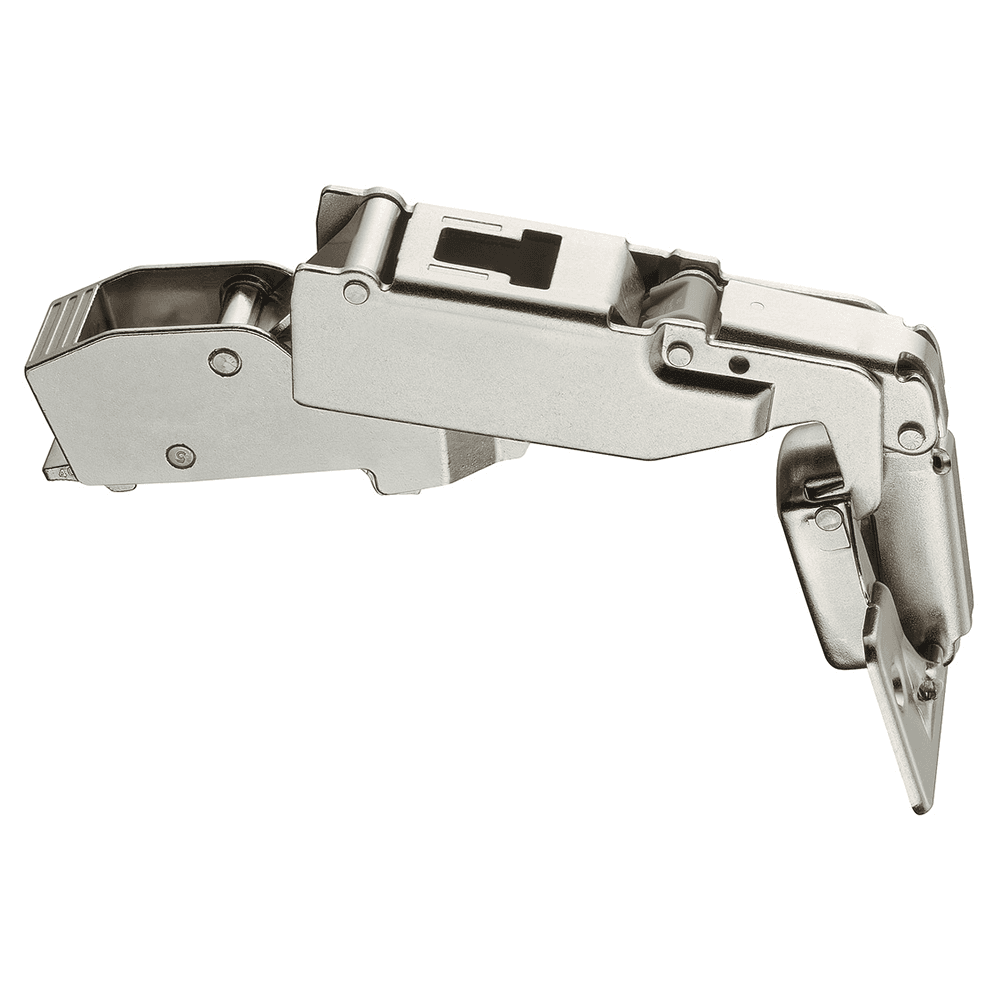

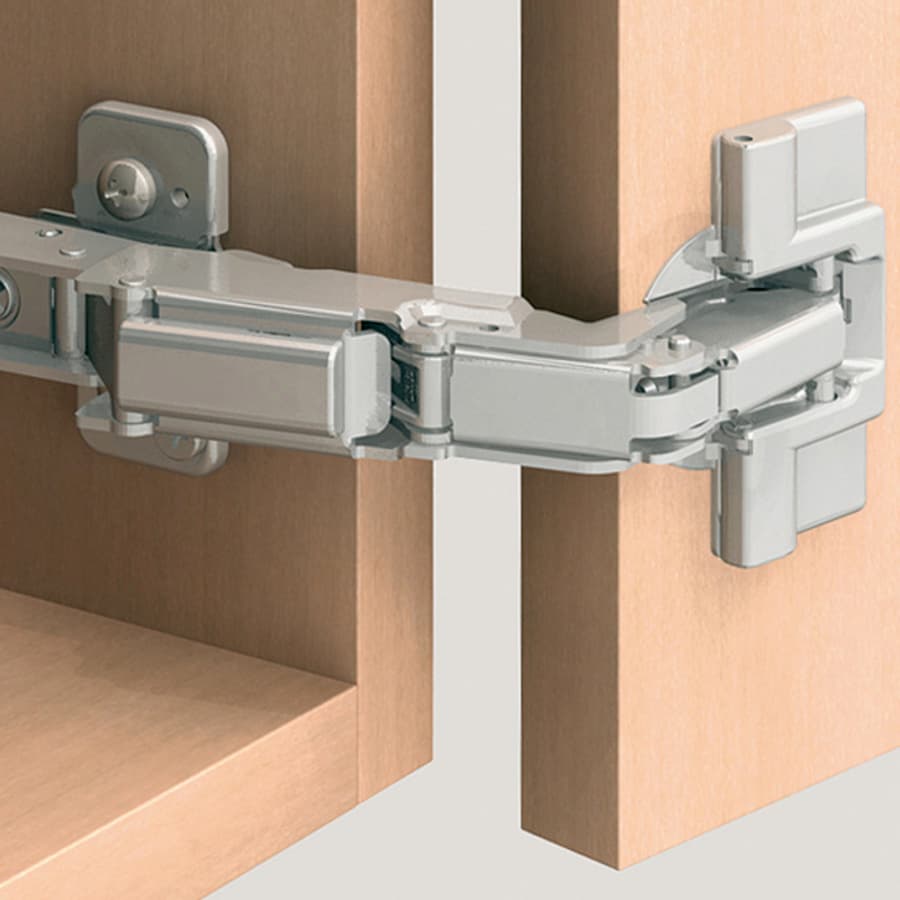

The Blum CLIP top 170° free-swinging hinge delivers enhanced performance with an elegant and systematic design. Enhanced with the tool-free INSERTA feature, this full-overlay hinge is snapped on the doors in a lesser time. The 3-dimensional adjustment allowing modifications to its height, side and depth facilitates easy door alignment. Its straight-arm provides more stability to it on the door surface. This all-metal hinge is plated with nickel to prevent corrosion.
Features:
• 170° door opening angle
• 3-dimensional adjustment
• Durable construction
• For door thicknesses up to 30 (1-3/16")
• All metal hinge, nickel-plated
• Add-on BLUMOTION soft close available
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 125 |
| Product Type | |
| Mounting Type | Screw-On |
| Overlay | Half Overlay |
| Closing Type | Free-Swinging |
| Opening Angle | 170° |
| Model | |
| Hinge Type | Standard Euro Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 11mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
