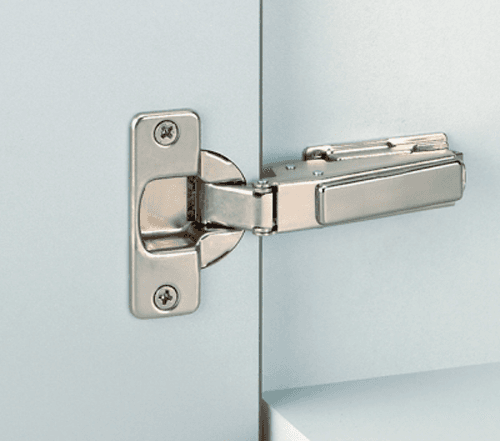

Nexis 95° Opening Thick Door Hinge, 48mm Bore Pattern, Self-Closing, Full Overlay, Nickel-Plated, Dowelled
Item # G146.305.54.0015
•Mfr # 146.305.54.0015
Product Details
The Nexis hinges series offers added value through a number of design solutions that will meet any application requirements whether it be frame or frameless.
Features:
• 3-dimensional adjustment with suitable base plate
• Soft-close compatible
• Accommodates overlays up to 19mm [3/4"]
• Minimal gap dimensions on thick doors
• For door thickness up to 30 mm [1 3/16"]
• Self-close or free-swing hinges available
• For face frame and frameless cabinets
• Combination drilling pattern for Nexis Impresso
Features:
• 3-dimensional adjustment with suitable base plate
• Soft-close compatible
• Accommodates overlays up to 19mm [3/4"]
• Minimal gap dimensions on thick doors
• For door thickness up to 30 mm [1 3/16"]
• Self-close or free-swing hinges available
• For face frame and frameless cabinets
• Combination drilling pattern for Nexis Impresso
Specifications
| Box Quantity | 50 |
| Mounting Type | Dowelled |
| Overlay | Full Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 95° |
| Hinge Type | Thick Door Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 48mm |
| Cup Diameter | 35mm |
| Cup Depth | 12mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
