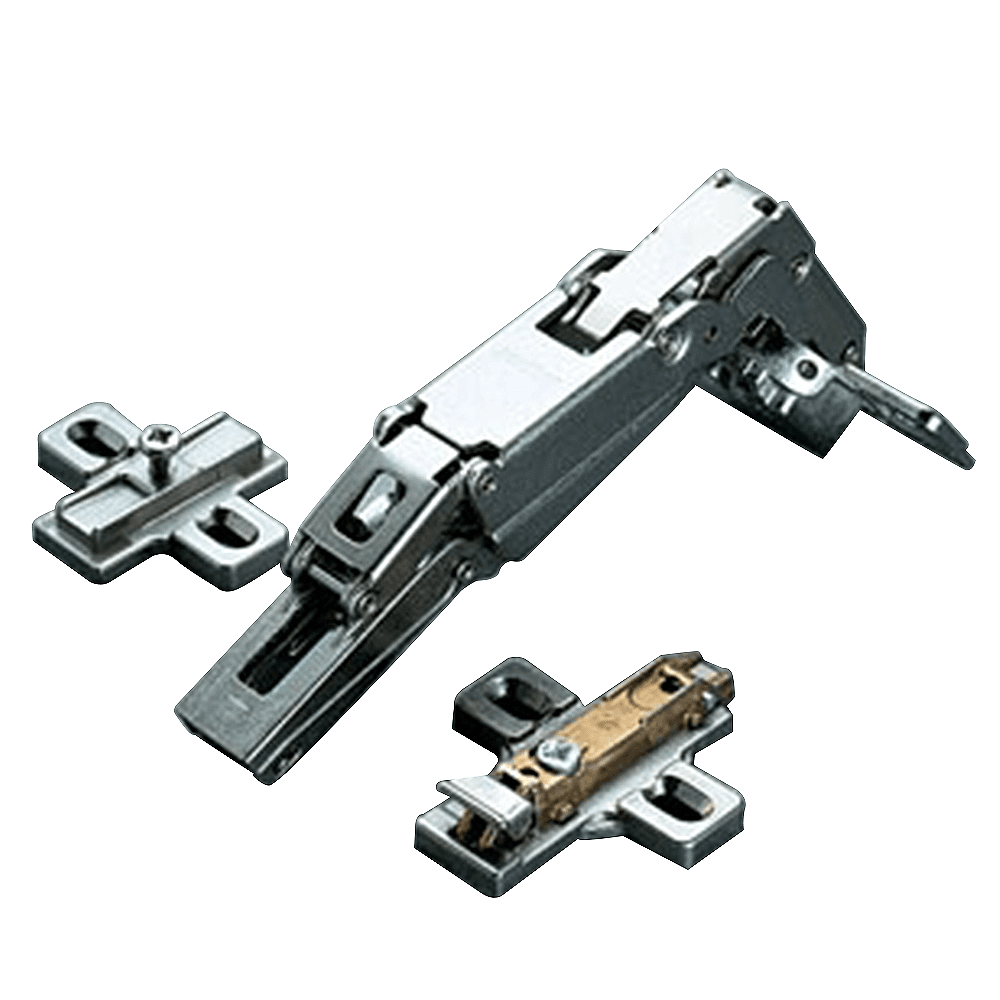

Push Series 200 165° Opening Hinge, 45mm Bore Pattern, Self-Closing, Half Overlay, Nickel-Plated, Dowelled

Features:
• Dowel cup mount
• Half overlay
• 11mm deep die-cast cup
• Adjustable, self-opening hinges incorporate a reverse spring action which causes the door to swing fully open when light pressure is applied to the face of the door
• When the door is closed, it is held in position by a hook shaped catch which functions like a touch latch
• No finger pulls, back levels or decorative hardware are ever required resulting in a very clean look to the cabinet
• Compatible with all traditional Series 200 mounting plates and with all Domer snap-on mounting plates
• Compensating side adjustment from -0.5mm to +5.5mm
• Height adjustment +/- 2mm
• Depth adjustment with Series 200 mounting plates +/-2.8mm
• Depth adjustment with Domer snap-on mounting plates from -0.5mm to +2.8mm
• Anti-sliding safety stop
