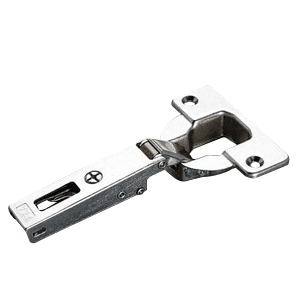

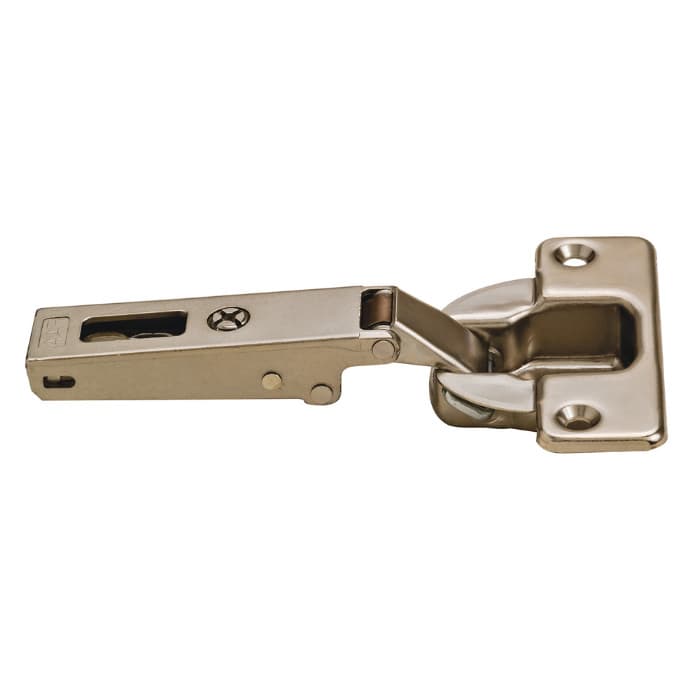

Series F 94° Opening Thick Door Hinge, 52mm Bore Pattern, Self-Closing, Full Overlay, Nickel-Plated, Screw-On
Item # SALCFA7A99
•Mfr # CFA7A99
$3.37
/Each
300 items
$3.11/Each
Min Order: 1
Quantity Multiple by: 1
Product Details
Features:
• Compensated side adjustment from -0.5 mm to +5.5 mm
• Height adjustment ?2 mm
• Depth adjustment with Series 200 mounting plates +2.8 mm
• Depth adjustment with Dome mounting plates from -0.5 mm to +2.8 mm
• Compensated side adjustment from -0.5 mm to +5.5 mm
• Height adjustment ?2 mm
• Depth adjustment with Series 200 mounting plates +2.8 mm
• Depth adjustment with Dome mounting plates from -0.5 mm to +2.8 mm
Specifications
| Mounting Type | Screw-On |
| Overlay | Full Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 94° |
| Model | |
| Hinge Type | Euro Thick Door Hinge |
| Finish | Nickel-Plated |

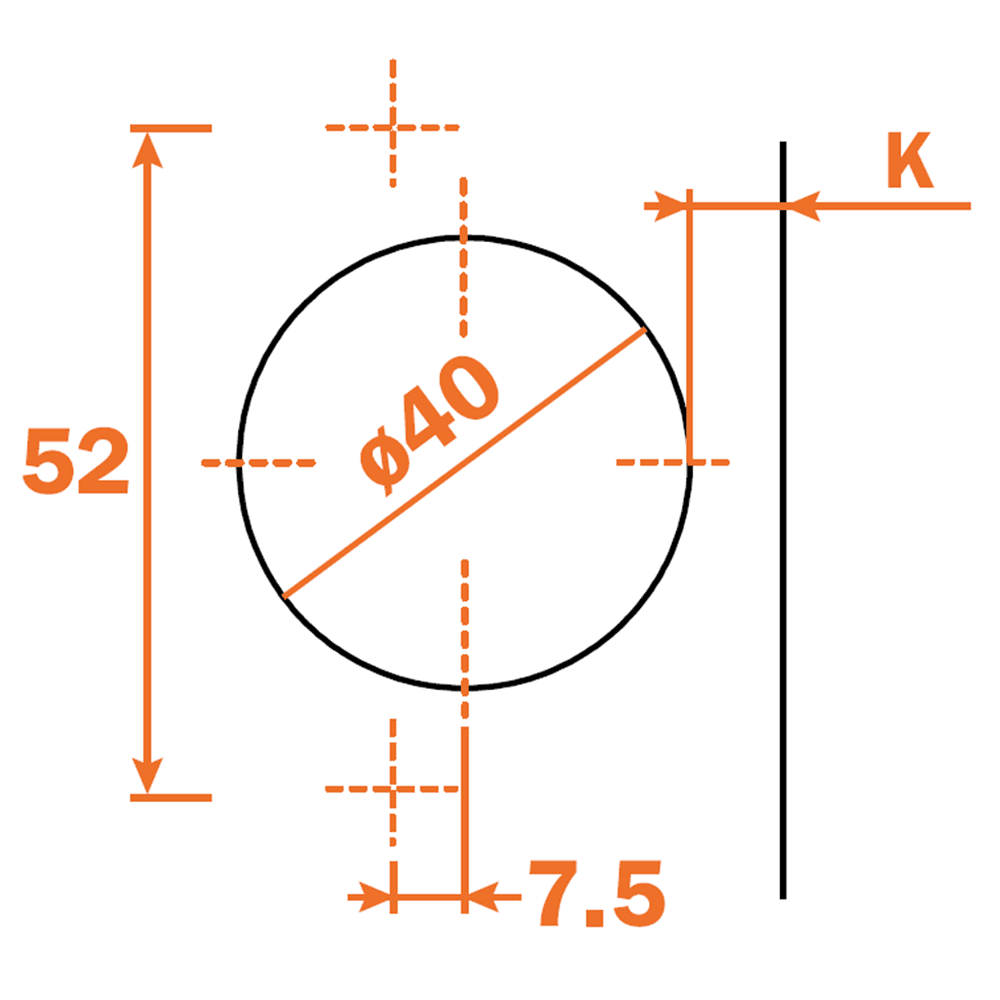

| Boring Pattern | 52mm |
| Cup Diameter | 40mm |
| Cup Depth | 11mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
