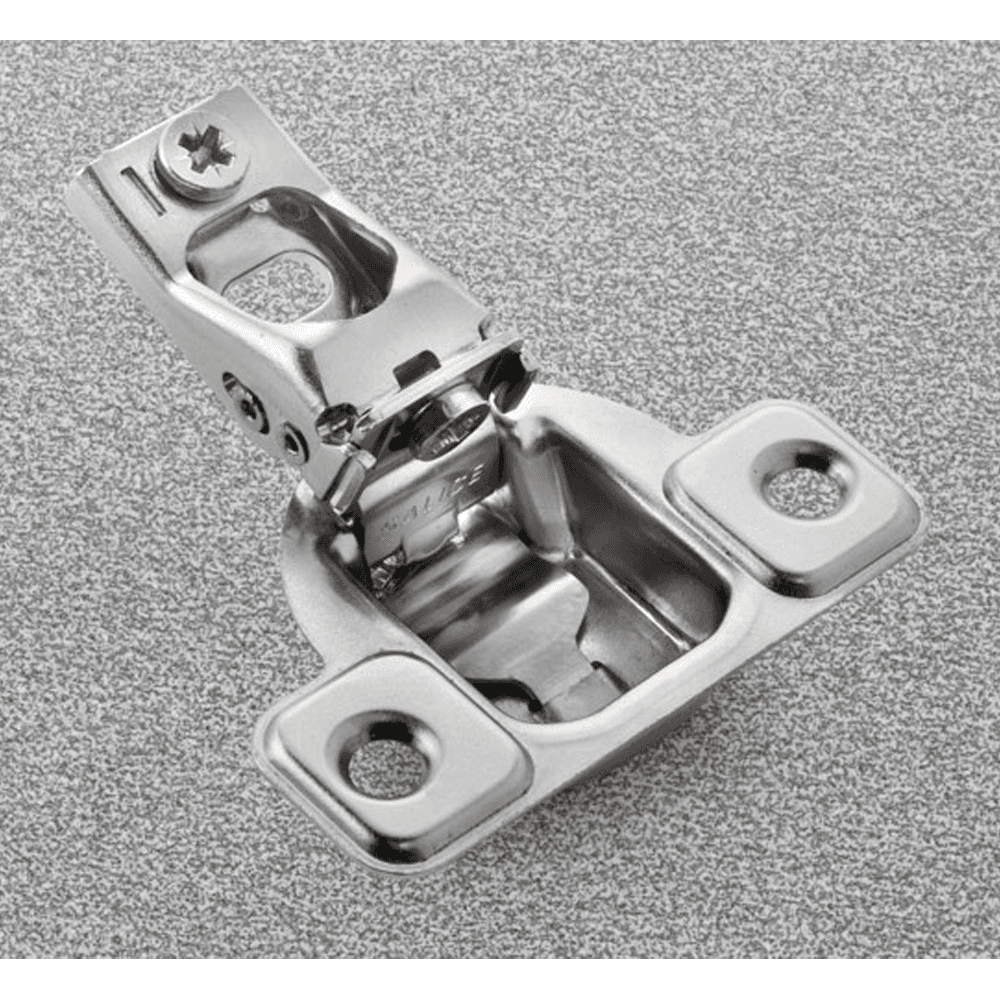

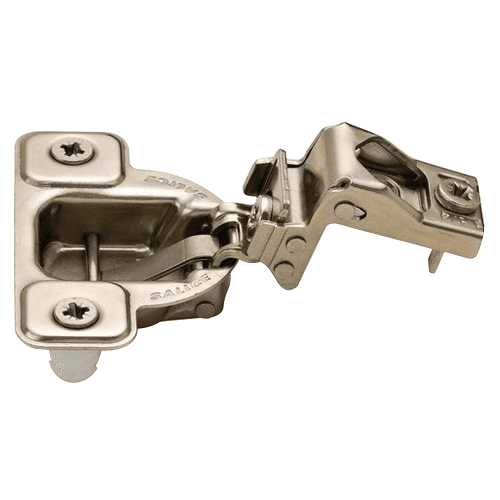

Excentra S 106° Opening Wrap-Around Face Frame Hinge, 45mm Boring Pattern, Self-Closing, 5/8" Overlay, Dowelled
Item # SALCSR3599
•Mfr # CSR3599
$1.54
/Each
300 items
$1.30/Each
1200 items
$1.25/Each
Mounting Type: Dowelled
Overlay: 5/8"
Min Order: 1
Qty mult. by: 1
Product Details
Features:
• Salice Excentra face frame hinges have all steel one piece construction with nickel plating to resist corrosion and have a lifetime warranty
• A cup depth of only 11mm allows this hinge to be used on most door styles
• Excentra, two cam adjustment hinges provide: cam depth adjustment (+2.8mm to -0.5mm), cam lateral adjustment (+3.0mm to -2mm) and slotted screw hole height adjustment (+/-2mm)
• Hinge cup edge drilling distance is 2.5mm
• Excentra hinges with overlays of 1/2" and greater have "zero door protrusion"
• Hinge is designed to work with cabinet doors up to 3/4" thick
• Excentra hinges are available in two cabinet door fixing designs: "Screw-On" via two #6 x 5/8" wood screws (not included) and "Press-In" 8mm dowels
• All hinges are self-closing design
• Excentra face frame hinges are designed to work with Salice Type U soft-close devices
• Salice Excentra face frame hinges have all steel one piece construction with nickel plating to resist corrosion and have a lifetime warranty
• A cup depth of only 11mm allows this hinge to be used on most door styles
• Excentra, two cam adjustment hinges provide: cam depth adjustment (+2.8mm to -0.5mm), cam lateral adjustment (+3.0mm to -2mm) and slotted screw hole height adjustment (+/-2mm)
• Hinge cup edge drilling distance is 2.5mm
• Excentra hinges with overlays of 1/2" and greater have "zero door protrusion"
• Hinge is designed to work with cabinet doors up to 3/4" thick
• Excentra hinges are available in two cabinet door fixing designs: "Screw-On" via two #6 x 5/8" wood screws (not included) and "Press-In" 8mm dowels
• All hinges are self-closing design
• Excentra face frame hinges are designed to work with Salice Type U soft-close devices
Specifications
| Box Quantity | 1 |
| Product Type | |
| Mounting Type | Dowelled |
| Overlay | 5/8" |
| Closing Type | Self-Closing |
| Opening Angle | 106° |
| Model | |
| Hinge Type | Wrap-Around Face Frame |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 11mm |
| Material | Steel |
| Cabinet Type | Face Frame |
