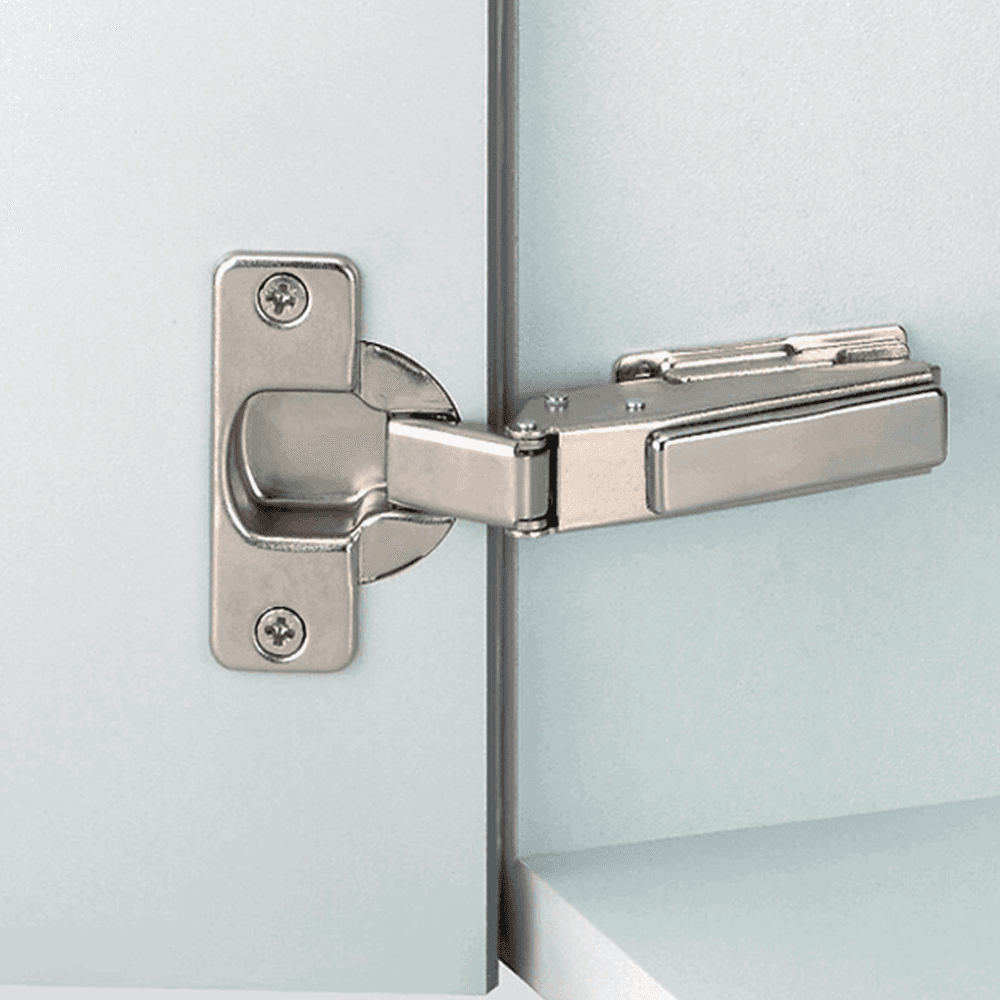

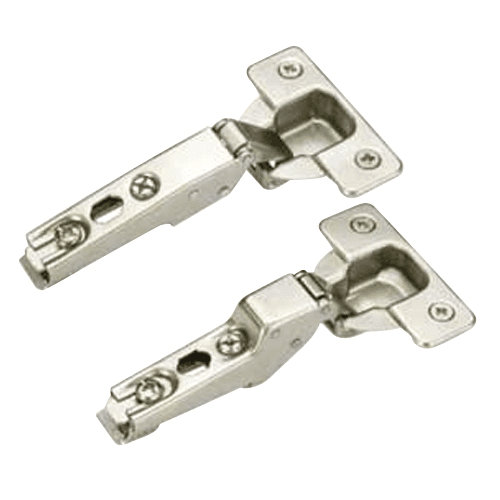

Nexis 125° Opening Hinge, 45/48mm Bore Pattern, Soft-Closing, Half Overlay, Nickel-Plated, Impresso
Item # G146.629.35.0815
•Mfr # 146.629.35.0815
Product Details
Features:
• All metal hingeSelf closing.
• Soft Close compatible
• Minimal cup depth of 12mm
• Designed for thin or profile doors.
• Excellent minimum gap requirements with door thicknesses up to 20mm
• Works with 45mm and 48mm boring pattern
• All metal hingeSelf closing.
• Soft Close compatible
• Minimal cup depth of 12mm
• Designed for thin or profile doors.
• Excellent minimum gap requirements with door thicknesses up to 20mm
• Works with 45mm and 48mm boring pattern
Specifications
| Box Quantity | 125 |
| Mounting Type | Tool-Free |
| Overlay | Half Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 125° |
| Hinge Type | Standard Euro Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 45/48mm |
| Cup Diameter | 35mm |
| Cup Depth | 12mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
