Clip Top 94° Opening Mini Hinge, 38mm Bore Pattern, Self-Closing, Inset, Nickel-Plated, Screw-On
50 items
Overlay: Inset Overlay
Product Details

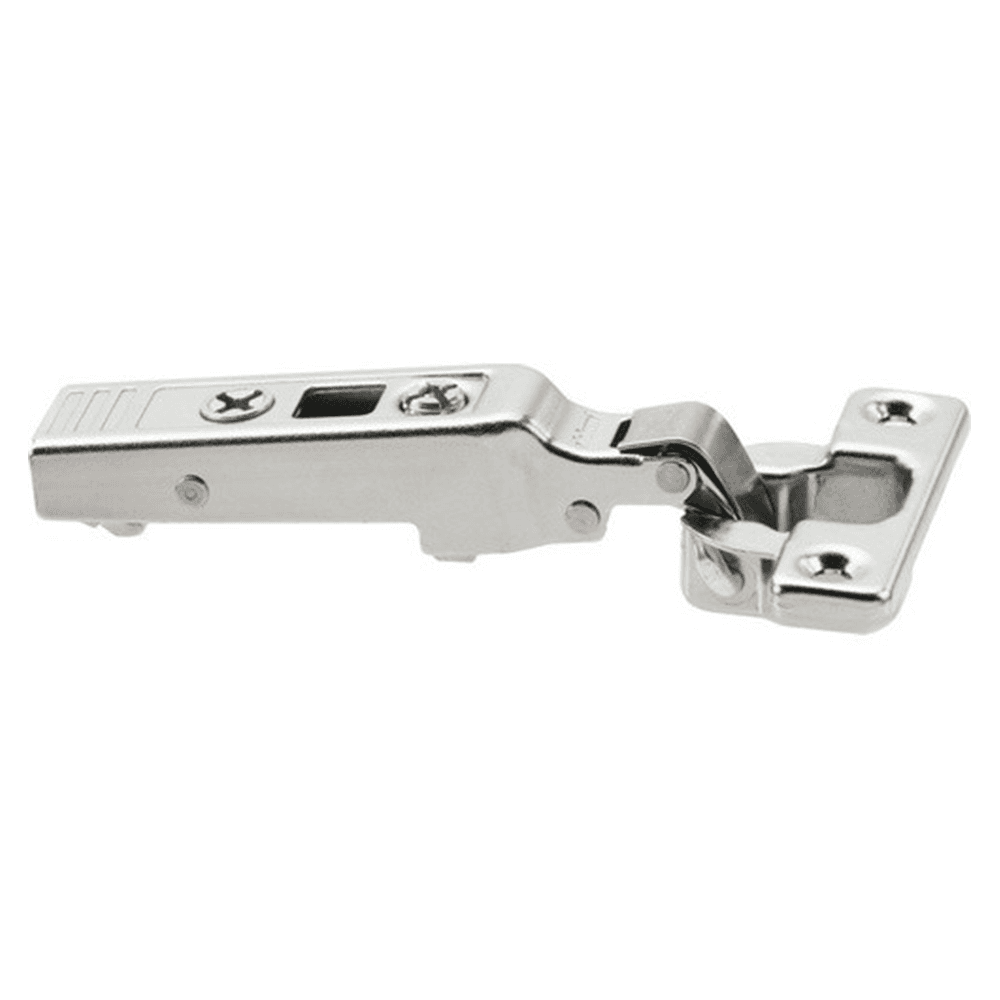

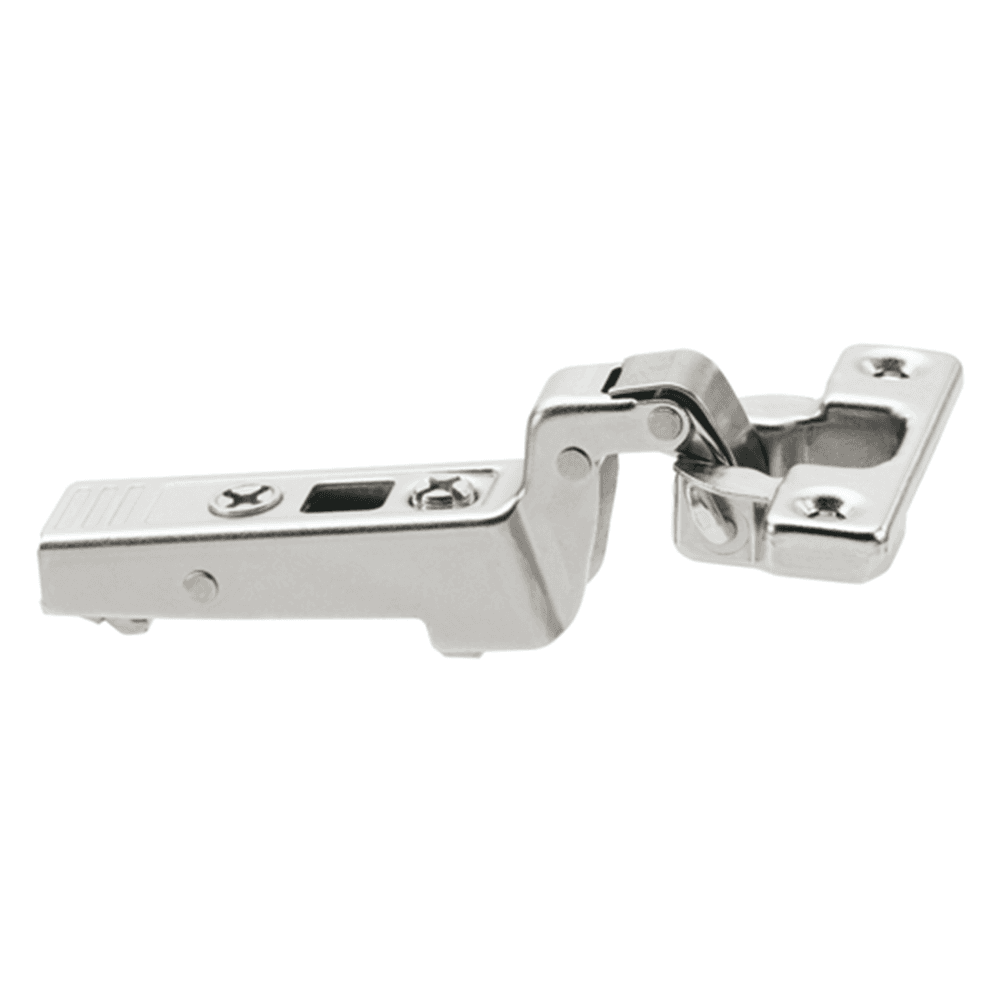

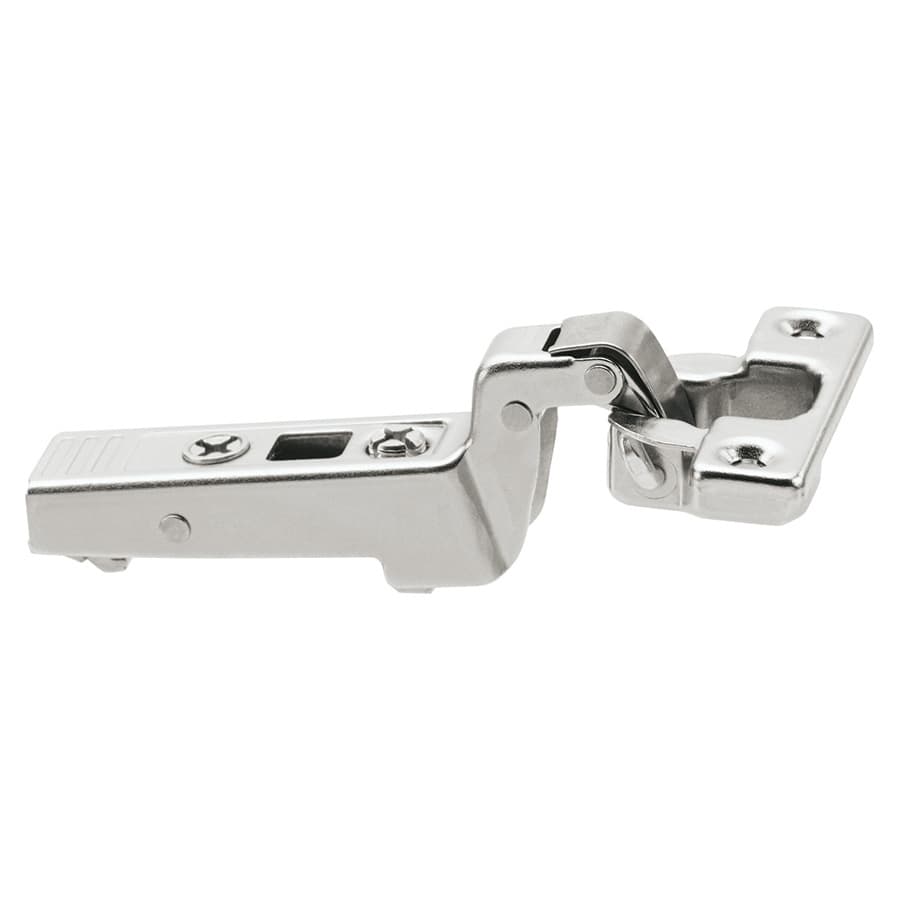

CLIP top hinges are concealed hinges for cabinet doors, meaning they cannot be seen when the door is closed. These hinges are easy to use and they work in almost any hinge application because of the wide variety of mounting plates available. That's right, these Euro hinges can be used in frameless and face frame cabinets. CLIP top hinges can also be easily upgraded with soft closing BLUMOTION making them a flexible and reliable option for any cabinet.
Features:
• For small doors or doors with small frames
• Side adjustment of 0.5 mm to 3.5 mm
• 26 mm drill bit required
• Three-dimensional adjustment
• For door thicknesses up to 26 (1")
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 250 |
| Product Type | |
| Mounting Type | Screw-On |
| Overlay | Inset Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 94° |
| Model | |
| Hinge Type | Mini Hinge |
| Finish | Nickel-Plated |

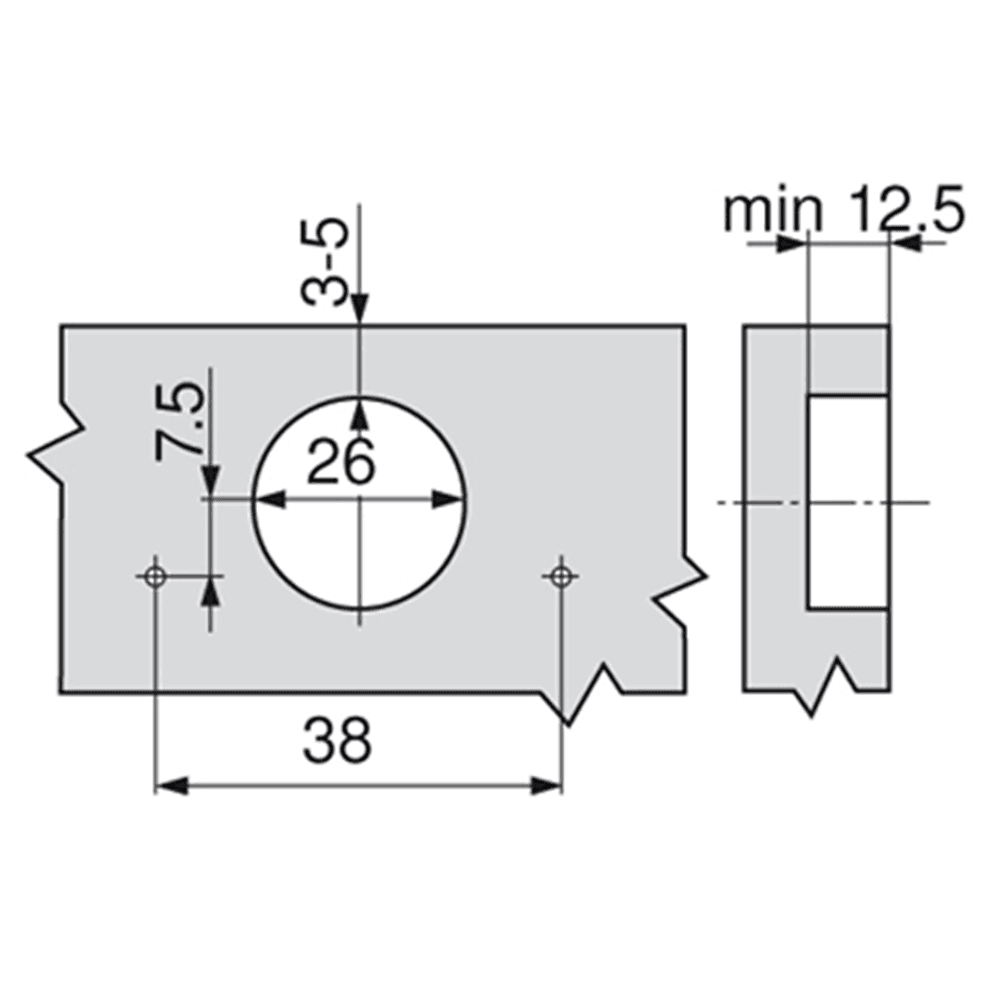

| Boring Pattern | 38mm |
| Cup Diameter | 26mm |
| Cup Depth | 12.5mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
