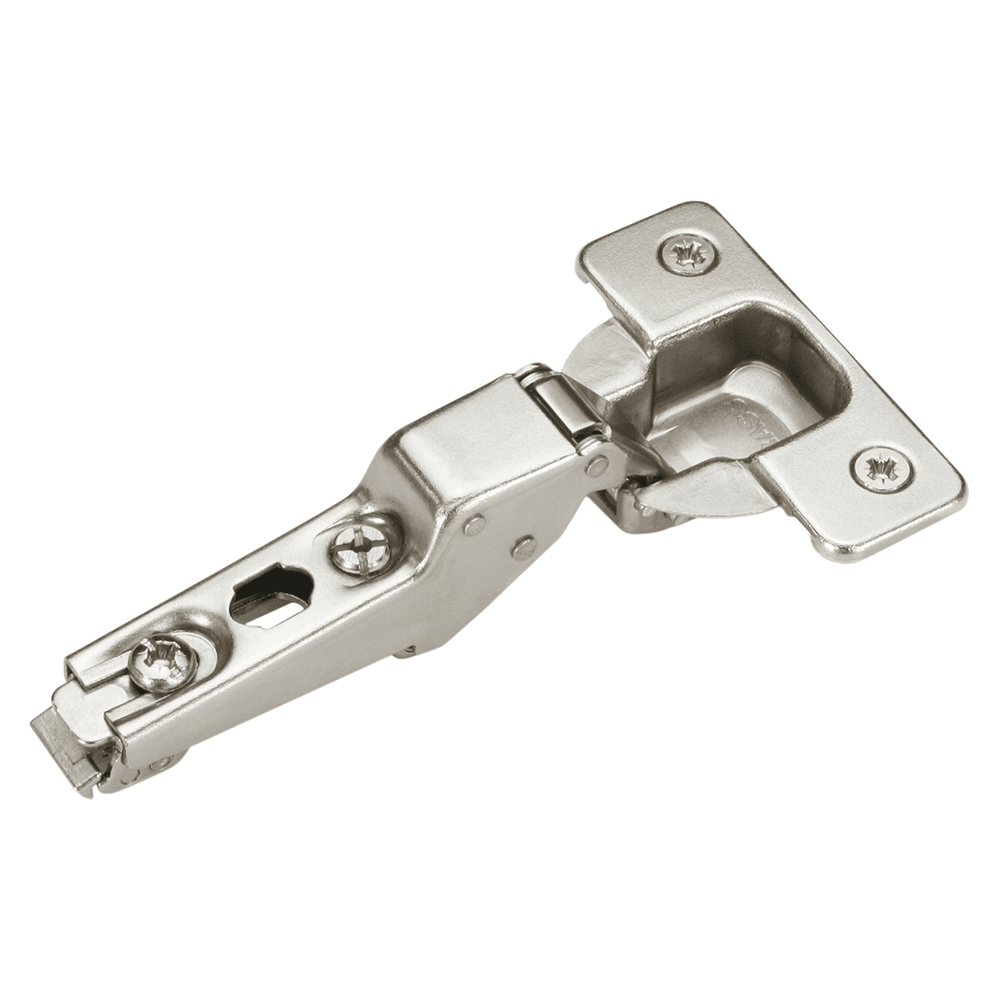

Nexis Blind Corner 95° Opening Hinge, 45mm Bore Pattern, Soft-Closing, Inset, Screw-On
Item # GNX148.405.11.9616
•Mfr # F015072625225
Product Details
The Nexis hinges series offers added value through a number of design solutions that will meet any application requirements whether it be frame or frameless.
Features:
• 3-dimensional adjustment with suitable base plate
• Soft-close compatible
• Minimal gap dimensions on door thickness of up to 30 mm
• For blind corner cabinets
Features:
• 3-dimensional adjustment with suitable base plate
• Soft-close compatible
• Minimal gap dimensions on door thickness of up to 30 mm
• For blind corner cabinets
Specifications
| Box Quantity | 125 |
| Mounting Type | Screw-On |
| Overlay | Inset Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 95° |
| Hinge Type | Blind Corner Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 12.6mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
