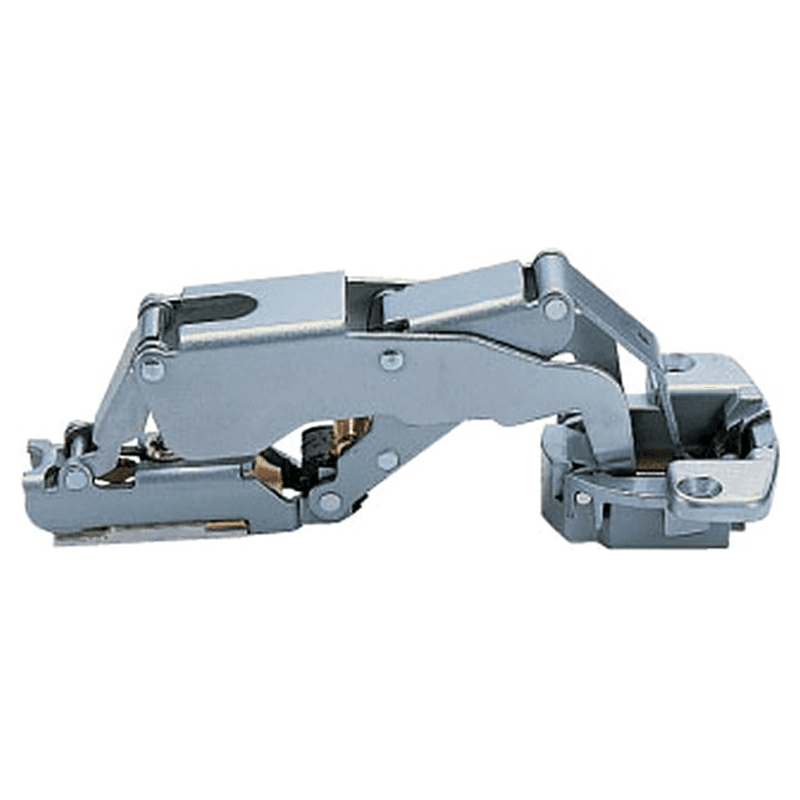

H160 European Concealed 90° Opening Hinge, 28mm Overlay, Self-Closing, Satin Chrome
Item # SGH160-C34/28
•Mfr # H160-C34/28
$22.77
/Each
20 items
$18.98/Each
Product Details
Features:
• European Concealed 90? Opening Hinge is finished in Satin Chrome
• Concealed hinge for thick doors with 28mm overlay
• Max. Opening: 160?
• Overlay: 28mm
• Door Thickness: 33~40mm (1-5/16"~1-9/16")
• Screws not included
• Mounting plate (SL100-04A-W-32) sold separately
• European Concealed 90? Opening Hinge is finished in Satin Chrome
• Concealed hinge for thick doors with 28mm overlay
• Max. Opening: 160?
• Overlay: 28mm
• Door Thickness: 33~40mm (1-5/16"~1-9/16")
• Screws not included
• Mounting plate (SL100-04A-W-32) sold separately
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
| Product Type | |
| Finish | Satin Chrome |
| Opening Angle | 90° |
| Hinge Type | European Concealed Hinge |
| Material | Zinc/Steel |
| Length | |
| Barrel Diameter | |
| Material Thickness | 1-9/16" |
| Screw Hole | |
| Door Thickness | |
| Height | |
| Width | |
| Closing Type |
