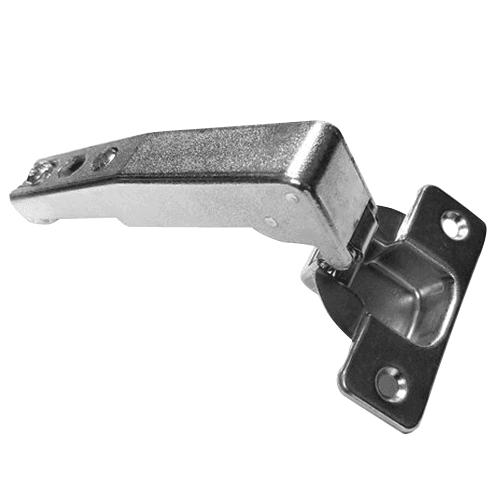

Nexis Blind Corner 95° Opening Hinge, 45mm Bore Pattern, Self-Closing, Inset, Screw-On
Item # GNX148.405.11.9615
•Mfr # F015072625225
Product Details
Features:
• Nexis hinges have dowelled mounting type with Nickel-plated finish
• Nexis hinges are suitable for both frameless and face frame applications
• Zinc die cast arm and stamped steel cup with bright nickel finish
• Minimal gap dimensions on door thickness of up to 30mm ( 1-13/16")
• Nexis 95 degree opening blind corner hinges have cup depths of 11.8mm
• Hinge cup edge drilling distance of 3mm to 6mm
• Single screw side-to-side adjustment of +1mm to -3mm
• Boring pattern of 45mm
• Nexis hinges are compatible with Grass soft-close devices
• Nexis hinges are designed to work with Grass mounting
• Nexis hinges have dowelled mounting type with Nickel-plated finish
• Nexis hinges are suitable for both frameless and face frame applications
• Zinc die cast arm and stamped steel cup with bright nickel finish
• Minimal gap dimensions on door thickness of up to 30mm ( 1-13/16")
• Nexis 95 degree opening blind corner hinges have cup depths of 11.8mm
• Hinge cup edge drilling distance of 3mm to 6mm
• Single screw side-to-side adjustment of +1mm to -3mm
• Boring pattern of 45mm
• Nexis hinges are compatible with Grass soft-close devices
• Nexis hinges are designed to work with Grass mounting
Specifications
| Box Quantity | 125 |
| Mounting Type | Dowelled |
| Overlay | Inset Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 95° |
| Hinge Type | Blind Corner Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 12.6mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
