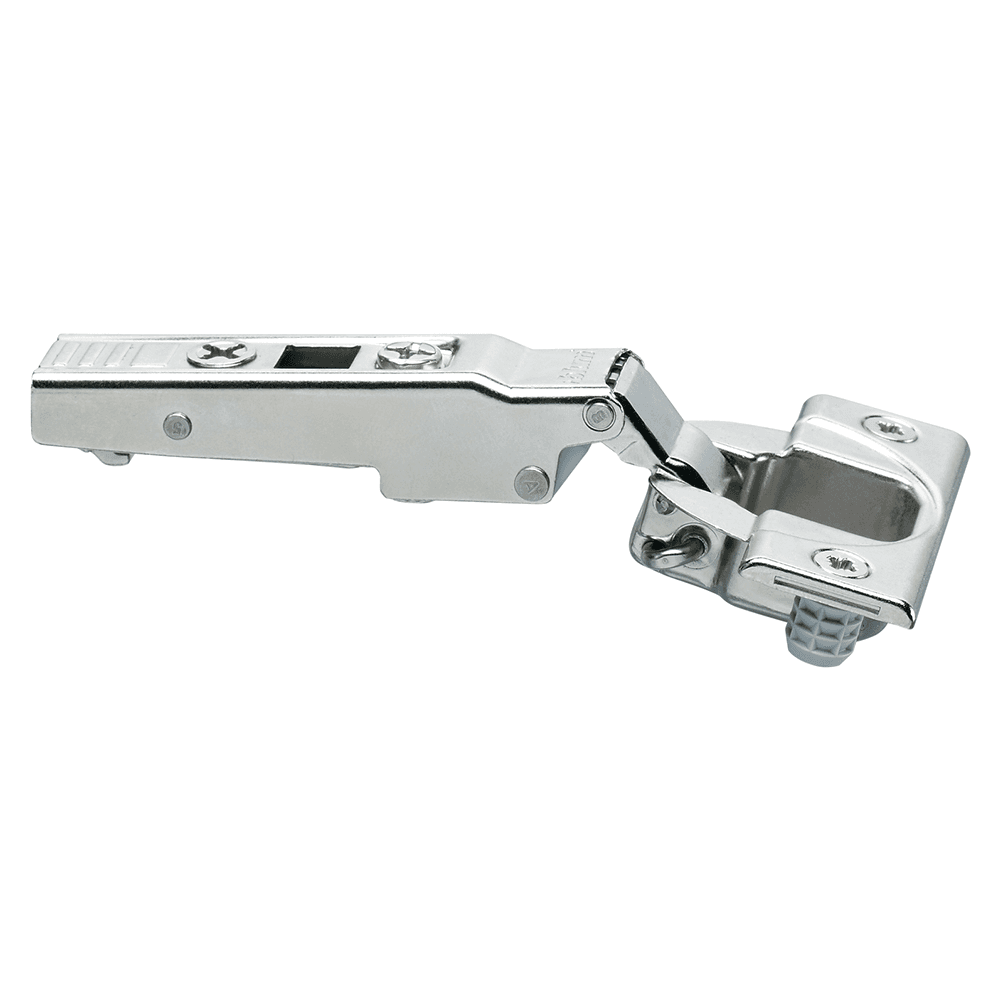

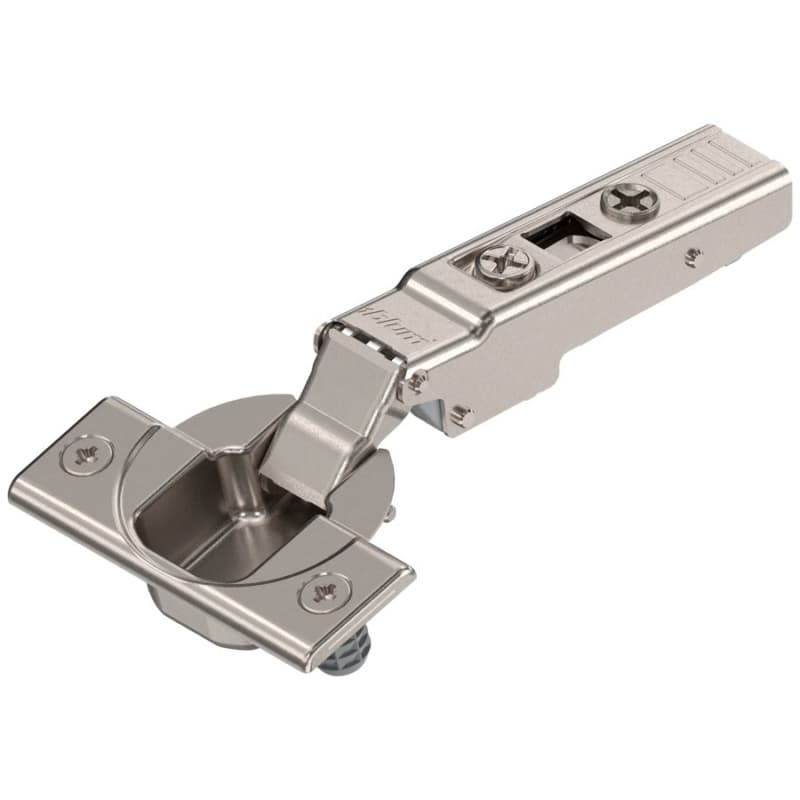

Clip Top 110°+ Opening Hinge, 45mm Bore Pattern, Free-Swinging, Full Overlay, Nickel-Plated, Dowelled
Item # B72T358
•Mfr # 72T3580.TL
$2.23
/Each
50 items
$2.20/Each
250 items
$2.15/Each
Min Order: 1
Qty mult. by: 1
Product Details

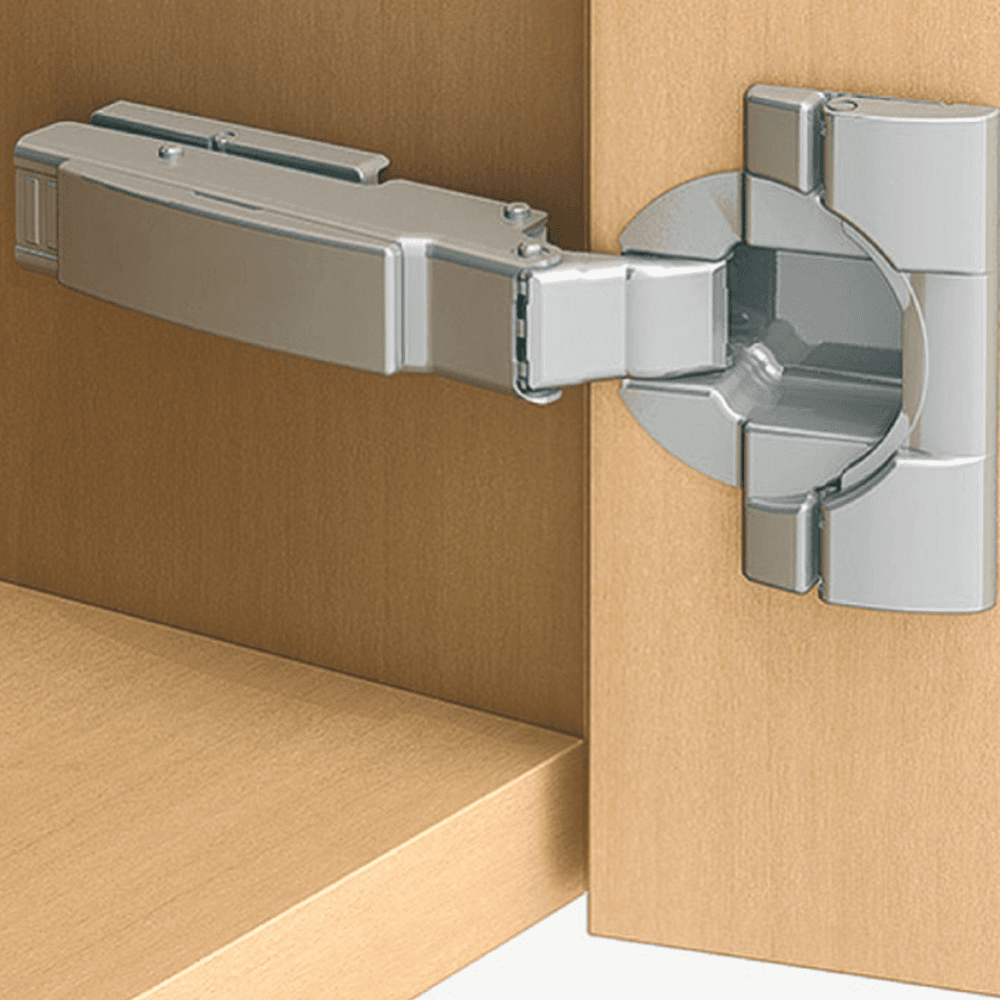

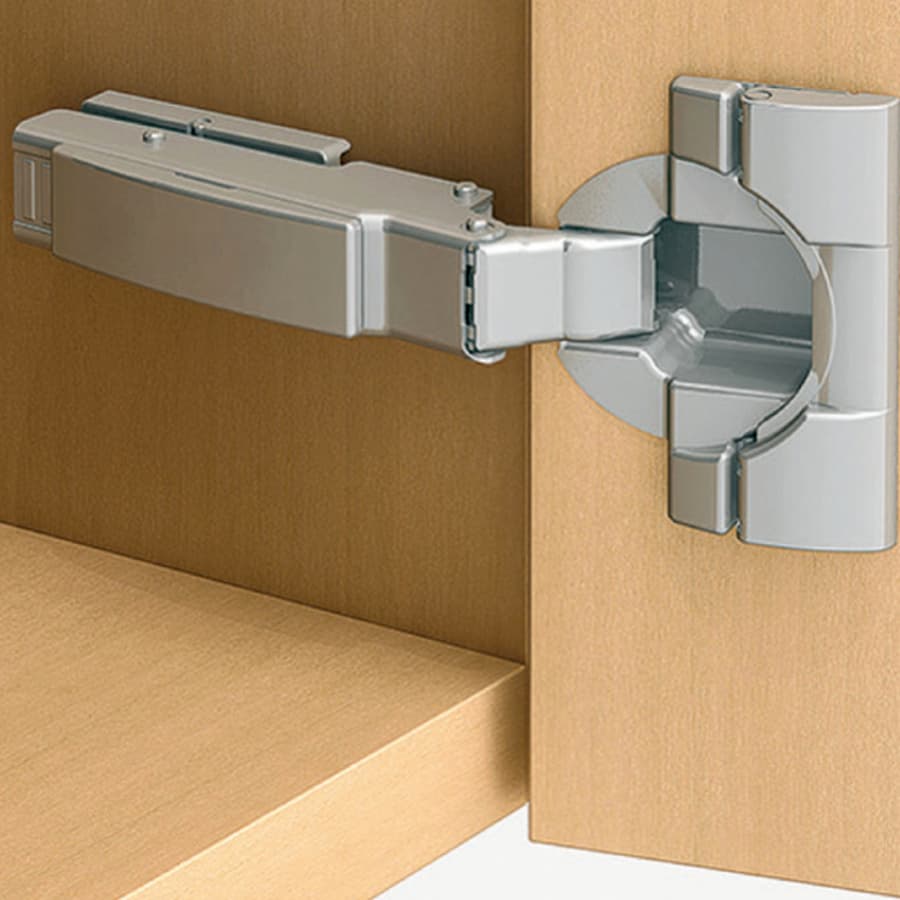

CLIP top hinges are concealed hinges for cabinet doors, meaning they cannot be seen when the door is closed. These hinges are easy to use and they work in almost any hinge application because of the wide variety of mounting plates available. That's right, these Euro hinges can be used in frameless and face frame cabinets.
Features:

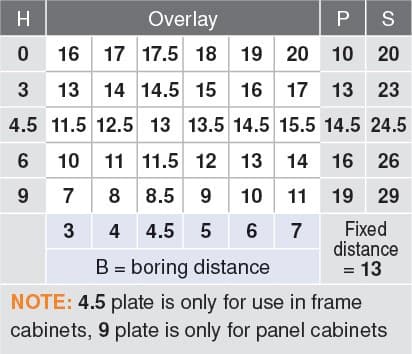

• For larger overlays (22 mm maximum)
• Three-dimensional adjustment
• Available with INSERTA attachment
• INSERTA lever expands in O8 mm holes
• For door thicknesses up to 26 (1")
• 86˚ angle restriction clip available (70T3553)
• All metal hinge, nickel plated
Features:
• For larger overlays (22 mm maximum)
• Three-dimensional adjustment
• Available with INSERTA attachment
• INSERTA lever expands in O8 mm holes
• For door thicknesses up to 26 (1")
• 86˚ angle restriction clip available (70T3553)
• All metal hinge, nickel plated
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 250 |
| Product Type | |
| Mounting Type | Dowelled |
| Overlay | Full Overlay |
| Closing Type | Free-Swinging |
| Opening Angle | 110°+ |
| Model | |
| Hinge Type | Standard Euro Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 13mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
