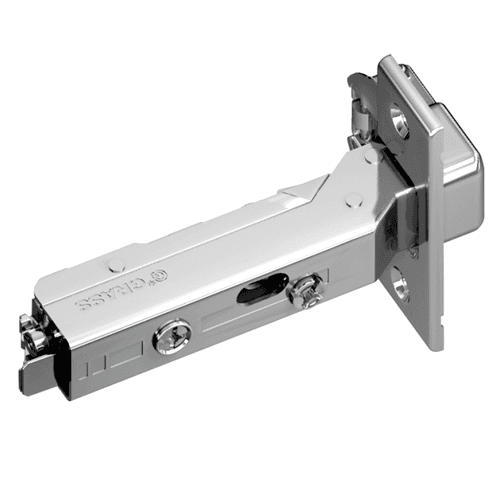

Tiomos 110° Opening Hinge, 45mm Bore Pattern, Soft-Closing, Full Overlay, Nickel-Plated, Screw-On
Item # GTIOF045138457228
•Mfr # F045138457228
Product Details

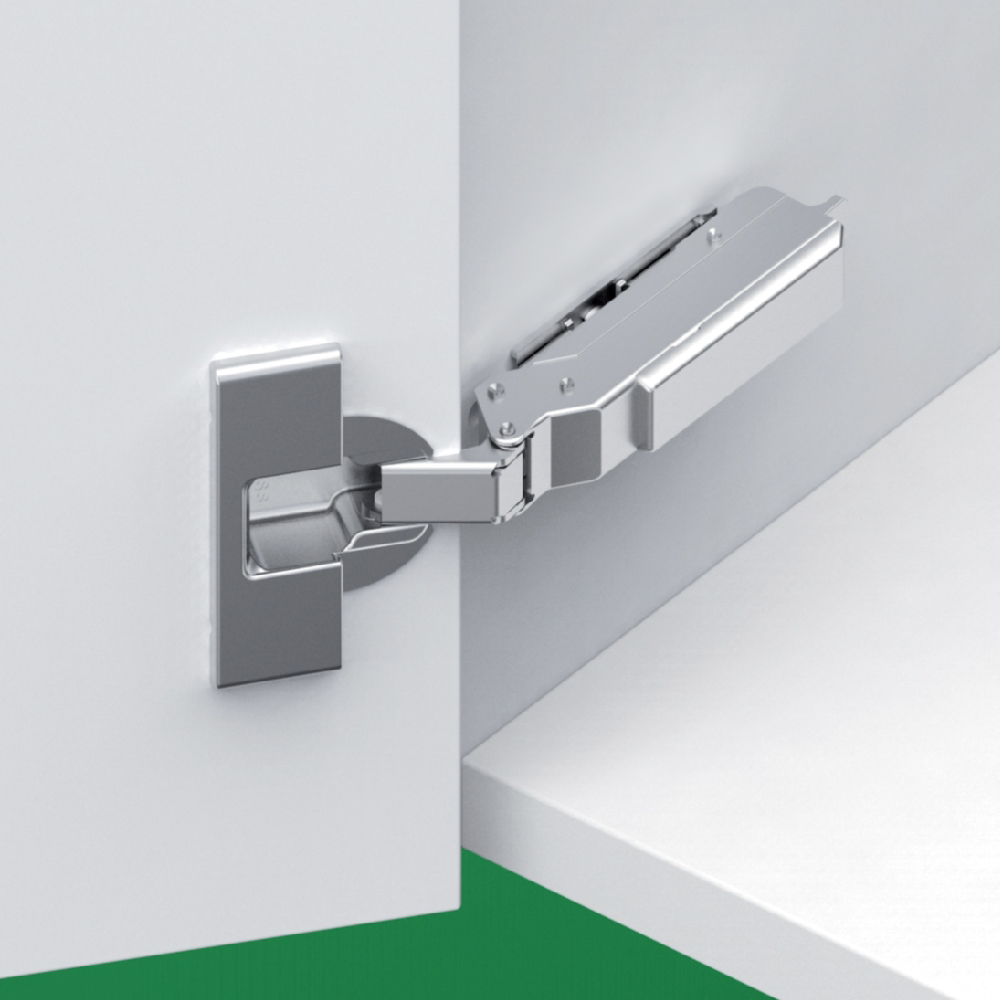

With a durable construction and sleek finish, the GRASS Tiomos 110˚ full-overlay hinge adds style to wooden cabinet designs. It mounts to face-frame and frameless cabinets. This nickel-plated hinge with 30% larger bearing surface offers extra stability to doors. Soft-closing mechanism is activated using the Tiomos damper technology integrated to its hinge arm. Its flexible 3-dimensional adjustment allows easy door alignment.
Features
• Sturdy construction lasts long
• Accommodates 22mm overlay doors
• Optimal reveal up to 24mm
• Minimum gaps and reveals
• Easy depth adjustment with worm gear
Features
• Sturdy construction lasts long
• Accommodates 22mm overlay doors
• Optimal reveal up to 24mm
• Minimum gaps and reveals
• Easy depth adjustment with worm gear
Specifications
| Box Quantity | 150 |
| Mounting Type | Screw-On |
| Overlay | Full Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 110° |
| Hinge Type | Standard Euro Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 12.6mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
