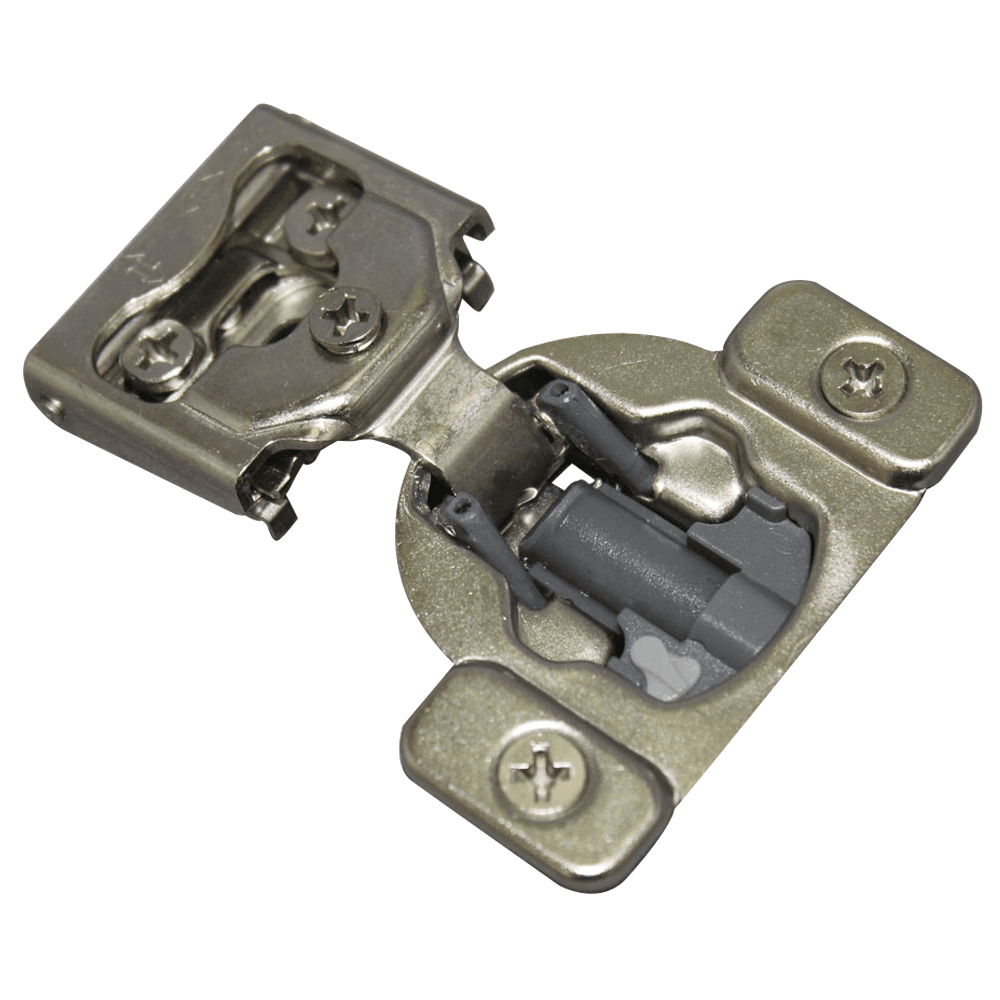

H9 105° Opening Wrap-Around Face Frame Hinge, 45mm Boring Pattern, Soft-Closing, 1/2" Overlay, Dowelled
Item # PROH12OLINT-3CAM
•Mfr # 0683114706961 300
Product Details
Features:
• 105? opening\r
• 10.5mm cup depth\r
• Partial overlay\r
• 3 cam, 6-way adjustable\r
• Soft-close damper integrated into the hinge cup\r
• Press-in hinges must be inserted with knock-in tool
• 105? opening\r
• 10.5mm cup depth\r
• Partial overlay\r
• 3 cam, 6-way adjustable\r
• Soft-close damper integrated into the hinge cup\r
• Press-in hinges must be inserted with knock-in tool
This product can expose you to chemicals including Nickel (Metallic), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
| Mounting Type | Dowelled |
| Overlay | 1/2" |
| Closing Type | Soft-Closing |
| Opening Angle | 105° |
| Hinge Type | Wrap-Around Face Frame |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 10.5mm |
| Material | Steel |
| Cabinet Type | Face Frame |
