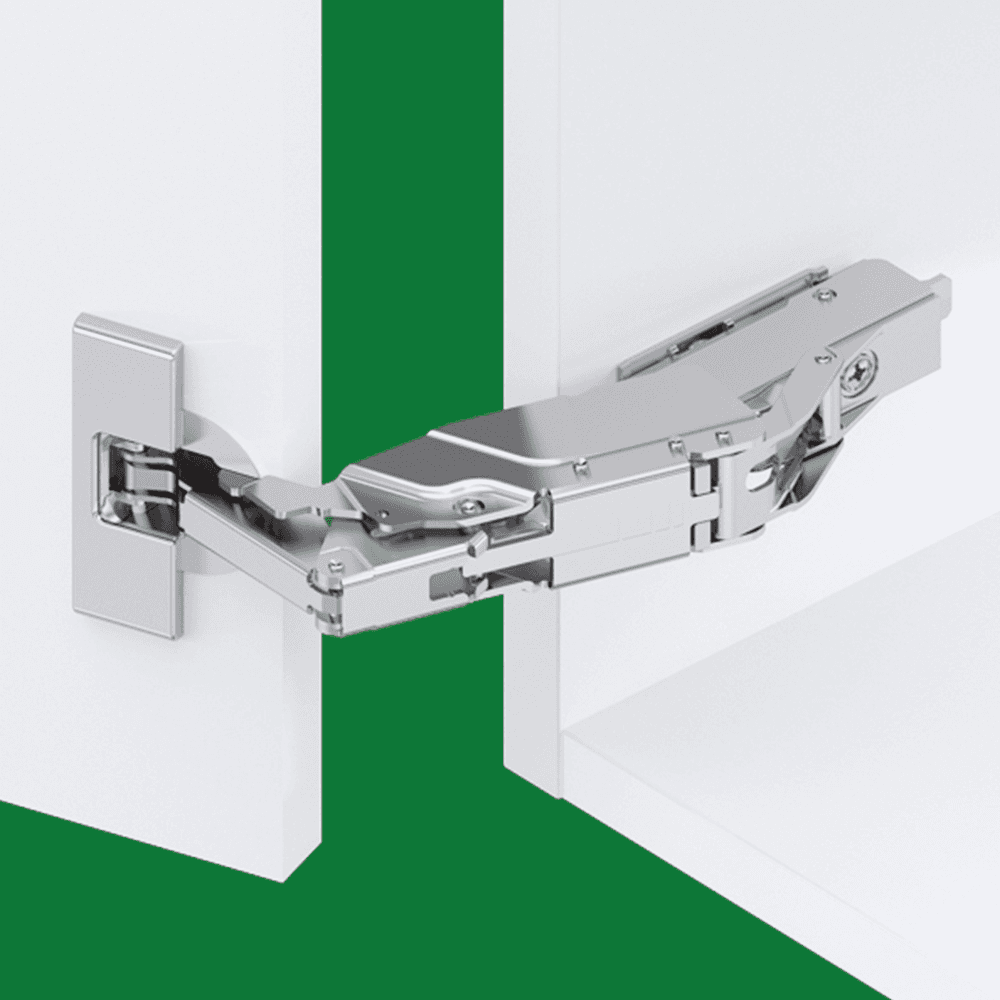

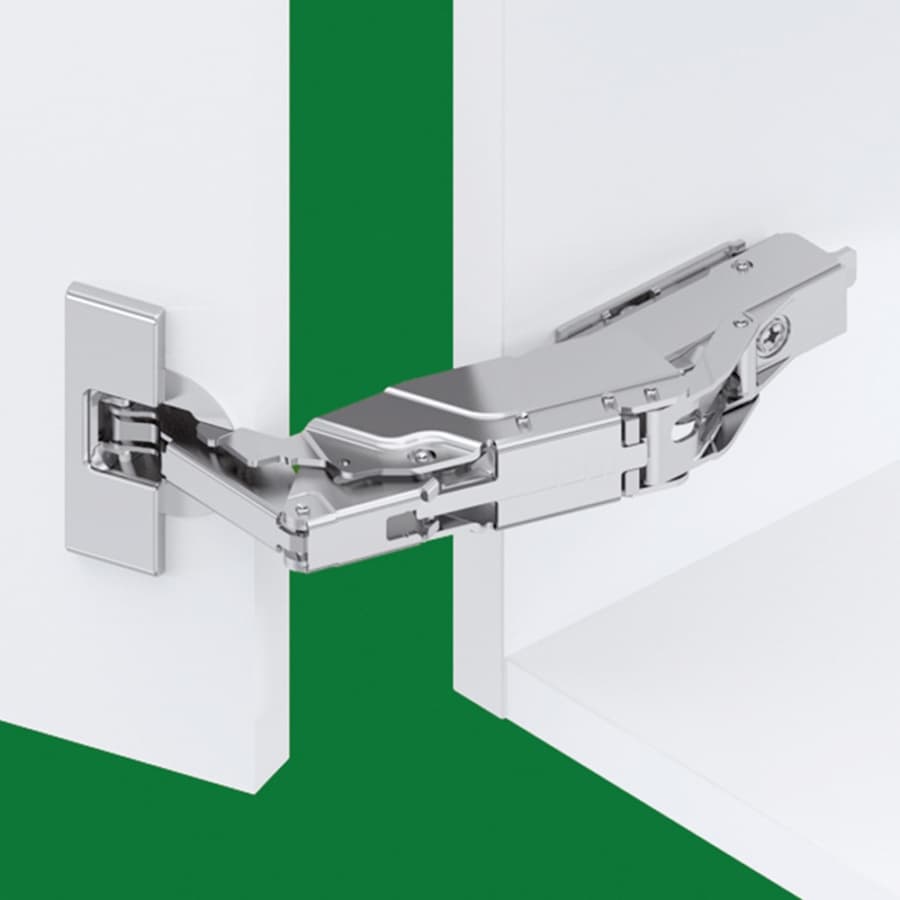

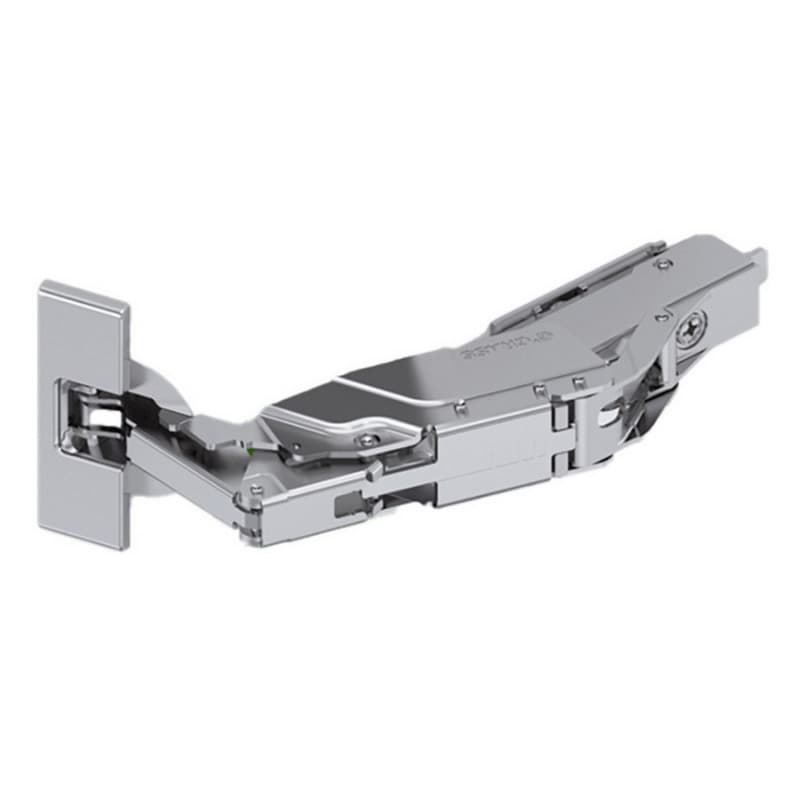

Tiomos 160° Opening Hinge, 42mm Bore Pattern, Soft-Closing, Half Overlay, Nickel-Plated, Dowelled
Item # GTIOF045138322217
•Mfr # F045138322217
$8.18
/Each
150 items
$6.96/Each
750 items
$6.54/Each
Min Order: 1
Quantity Multiple by: 1
Product Details
Features:
• Boring Pattern: 45mm
• Material: Zinc, nickel-plated
• 3-dimensional adjustment with suitable base plate
• Accommodates overlays up to 25.4mm (1")
• Soft-close or Self-close hinges available
• For face frame or frameless cabinets
• Convenient depth adjustment with worm gear
• Zero protrusion when door is opened 90˚
• 10mm cup depth
• For door thicknesses up to 32mm (1 1/4")
• Minimal reveal
• Boring Pattern: 45mm
• Material: Zinc, nickel-plated
• 3-dimensional adjustment with suitable base plate
• Accommodates overlays up to 25.4mm (1")
• Soft-close or Self-close hinges available
• For face frame or frameless cabinets
• Convenient depth adjustment with worm gear
• Zero protrusion when door is opened 90˚
• 10mm cup depth
• For door thicknesses up to 32mm (1 1/4")
• Minimal reveal
Specifications
| Mounting Type | Dowelled |
| Overlay | Half Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 160° |
| Model | |
| Hinge Type | Standard Euro Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 42mm |
| Cup Diameter | 35mm |
| Cup Depth | 12.6mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
