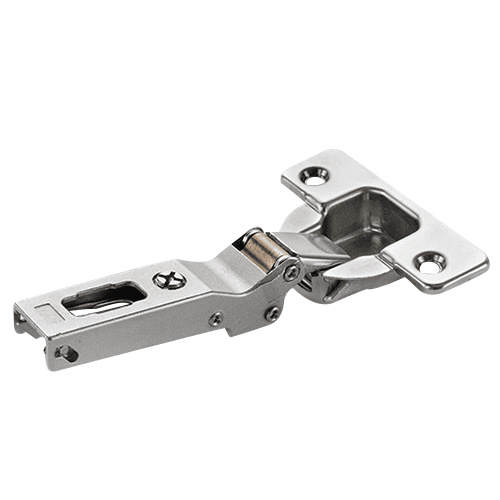

Series 200 -30° Angled Corner 94° Opening Hinge, Self-Closing, Overlay, Nickel-Plated, Dowelled
Item # SALC2RBW99
•Mfr # CR2BW99
$3.99
/Each
150 items
$3.67/Each
Mounting Type: Dowelled
Min Order: 1
Qty mult. by: 1
Product Details
The Series 200 make up an integrated system of hinges developed to provide a solution to any situation involving concealed hinges.
Features:
• Hinges for wooden doors with negative angled assembly
• Dimensions of the 35mm cup
• Possible drilling distance on the door (K): from 3mm to 6mm
• Compatible with all traditional Series 200 mounting plates and with all Domi snap-on mounting plates
Features:
• Hinges for wooden doors with negative angled assembly
• Dimensions of the 35mm cup
• Possible drilling distance on the door (K): from 3mm to 6mm
• Compatible with all traditional Series 200 mounting plates and with all Domi snap-on mounting plates
Specifications
| Box Quantity | 1 |
| Product Type | |
| Mounting Type | Dowelled |
| Overlay | Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 94° |
| Model | |
| Hinge Type | -30° Angled |
| Finish | Nickel-Plated |
| Boring Pattern | |
| Cup Diameter | 35mm |
| Cup Depth | 11mm |
| Material | |
| Cabinet Type |
