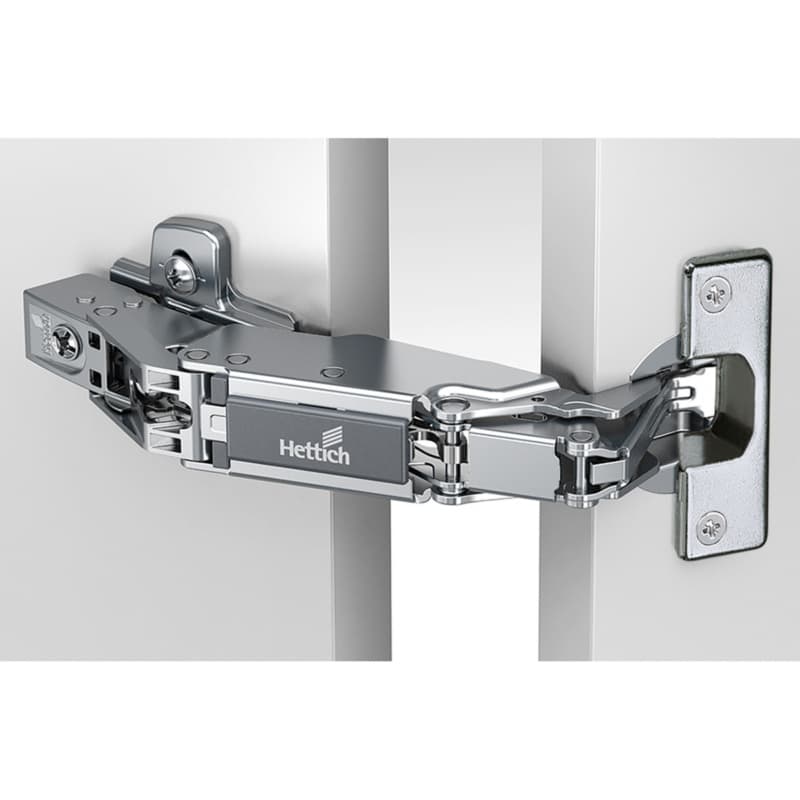

Sensys 8657 165° Opening Zero Protrusion Hinge, 45mm Boring Pattern, Self-Closing, Overlay, Nickel-Plated, Screw-On
Item # HET1076819
•Mfr # 9099770
$6.50
/Each
100 items
$5.26/Each
500 items
$5.06/Each
Min Order: 1
Quantity Multiple by: 1
Drop Ship Item
This item ships directly from the vendor. Additional freight charges may apply.
Product Details
Features:
• Screw-on mount
• Sensys wide angle hinge is finished in Nickel-Plated with zero protrusion
• With self closing feature (Sensys 8657)
• Quality classification under EN 15570, Level 3
• For door thickness 15mm - 24mm
• Door mounting option overlay

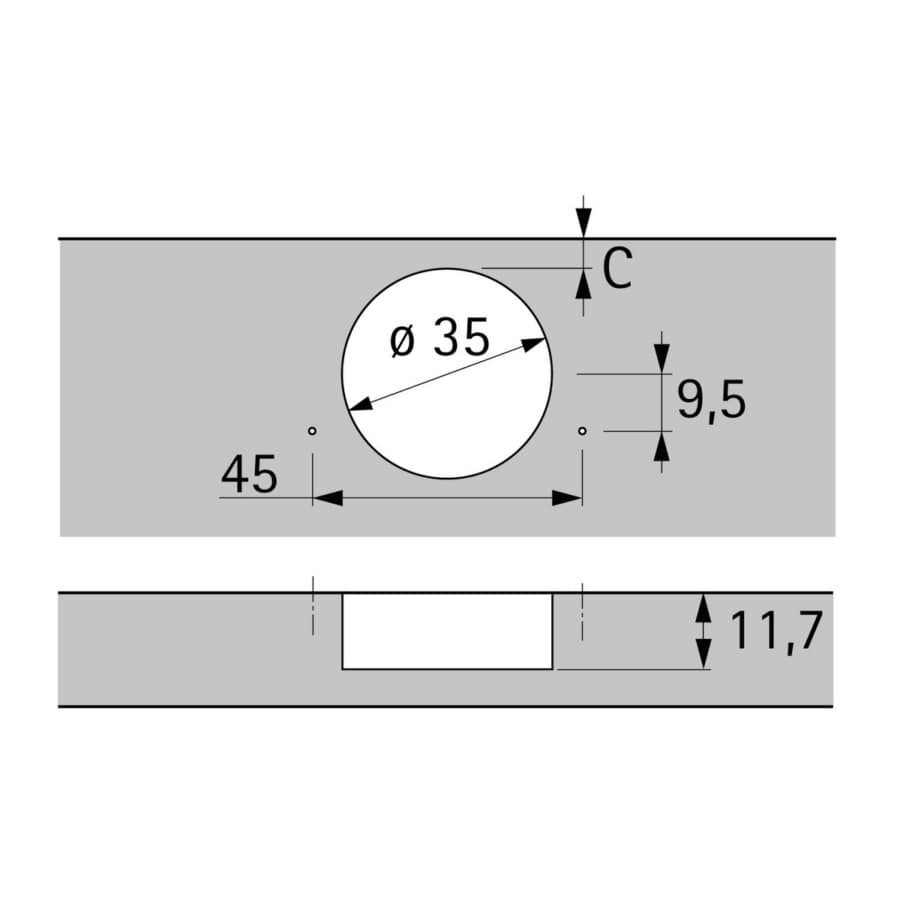

• Drilling pattern TB 45mm x 9.5mm
• Installation for screwing on
• Integrated overlay adjustment +2mm / -2mm
• Integrated depth adjustment +3mm / -2mm
• Height adjustment at mounting plate
• Screw-on mount
• Sensys wide angle hinge is finished in Nickel-Plated with zero protrusion
• With self closing feature (Sensys 8657)
• Quality classification under EN 15570, Level 3
• For door thickness 15mm - 24mm
• Door mounting option overlay
• Drilling pattern TB 45mm x 9.5mm
• Installation for screwing on
• Integrated overlay adjustment +2mm / -2mm
• Integrated depth adjustment +3mm / -2mm
• Height adjustment at mounting plate
Specifications
| Mounting Type | Screw-On |
| Overlay | Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 165° |
| Model | |
| Hinge Type | Zero Protrusion Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 11.6mm |
| Material | Steel/Die-Cast Zinc |
| Cabinet Type |
