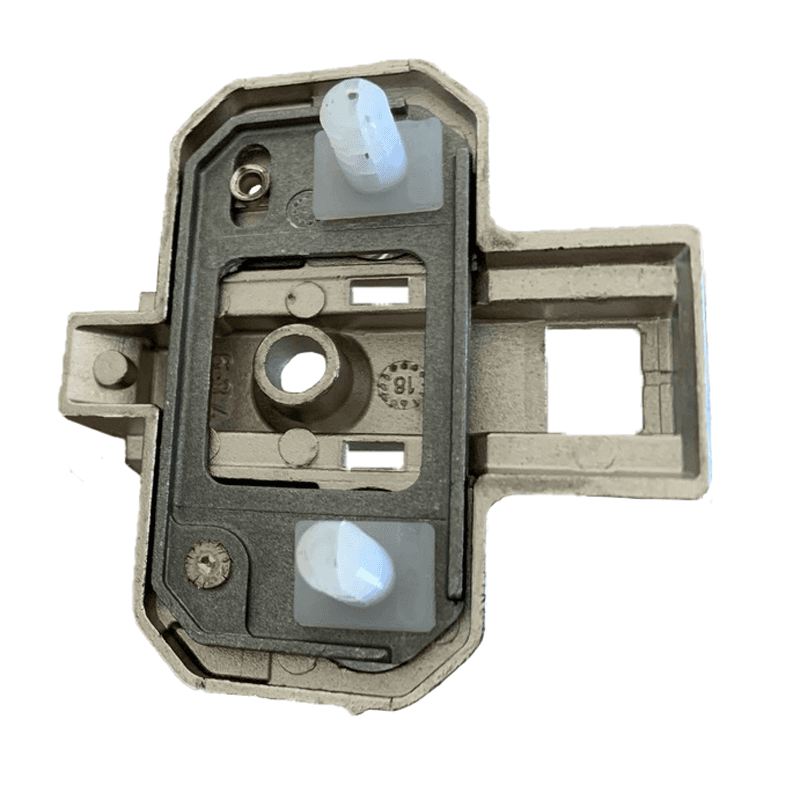

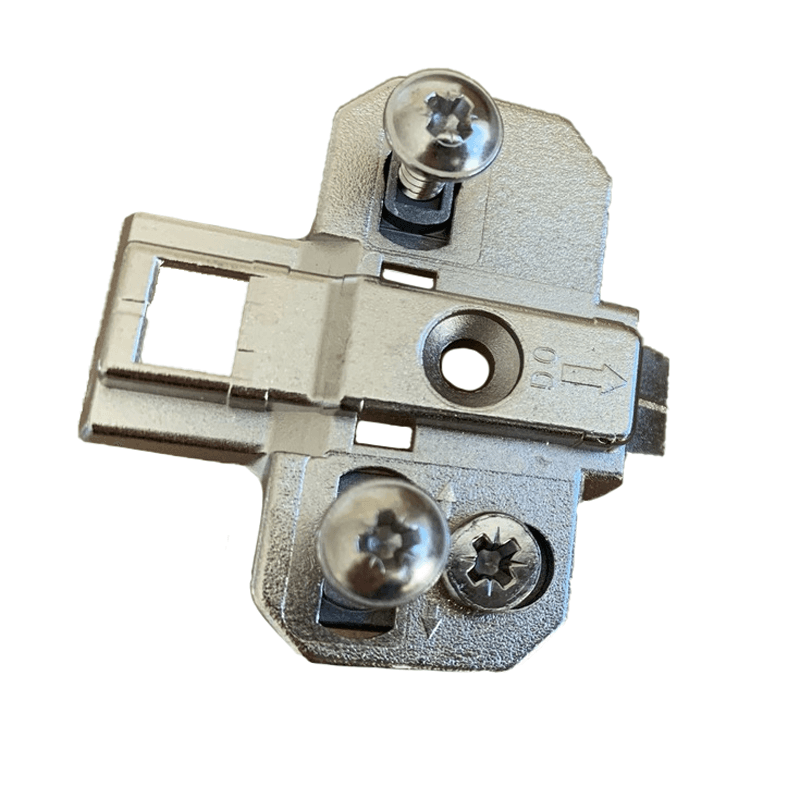

Intermat/Ecomat Cam Adjustment Face Frame Mounting Plate, Nickel-Plated, Dowelled, 0mm
Item # HET9046596
•Mfr # 9046596
Product Details
Mounting plate system 9000 for Intermat and Ecomat hinges with cam adjustment. Screw-on wing mounting plate with prefixed 5mm sockets for overlay mounting.
• Hole distance 32mm, with premounted fixing screws for holes 5 x 12 mm
• Eccentric height adjustment ? 2mm
• Nickel-Plated, Die-Cast Zinc
• Distance Hole Line - 37mm
• Distance - 0mm
• Total Height - 8.3 mm
• Hole distance 32mm, with premounted fixing screws for holes 5 x 12 mm
• Eccentric height adjustment ? 2mm
• Nickel-Plated, Die-Cast Zinc
• Distance Hole Line - 37mm
• Distance - 0mm
• Total Height - 8.3 mm
Specifications
| Box Quantity | 400 |
| Height | 0mm |
| Finish | Nickel-Plated |
| Width | |
| Overlay | |
| Product Type | Face Frame Mounting Plate |
| Mounting Type | Dowelled |
| Material | Zinc Die-Cast |
| Cabinet Type | Frameless |
