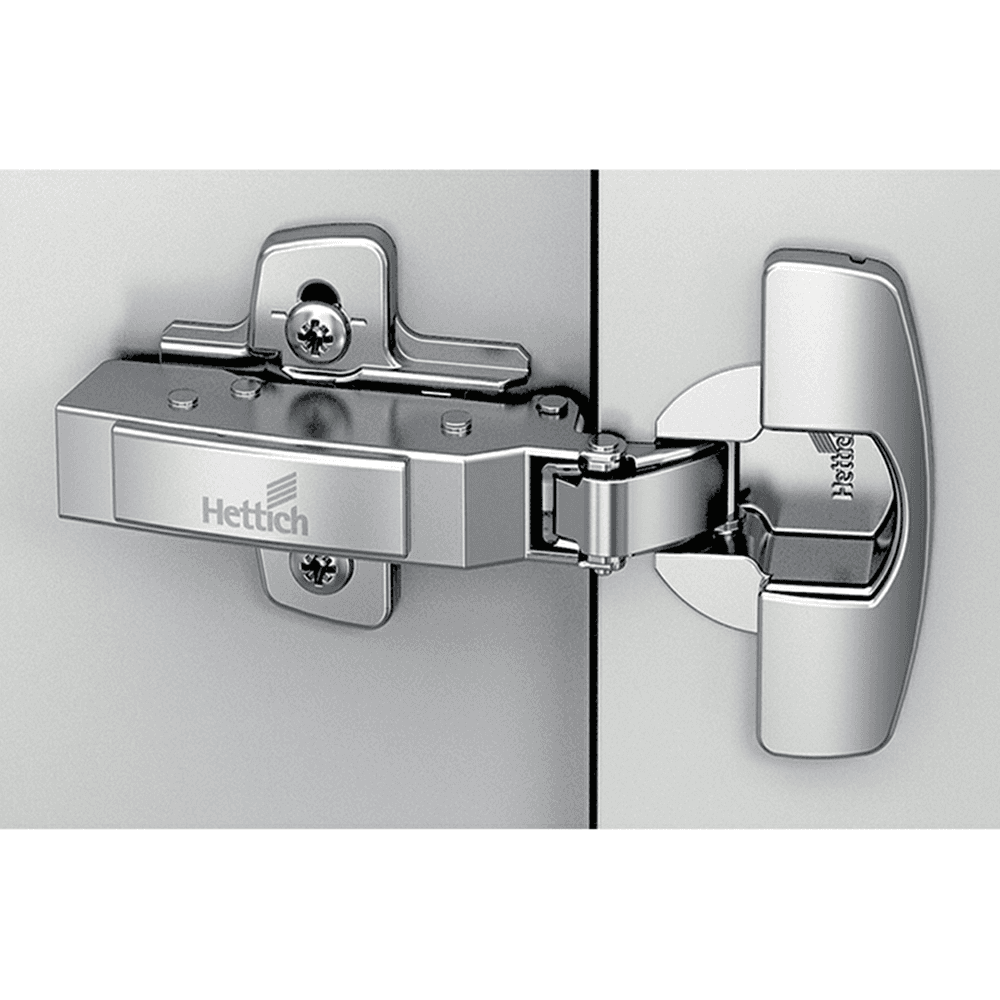

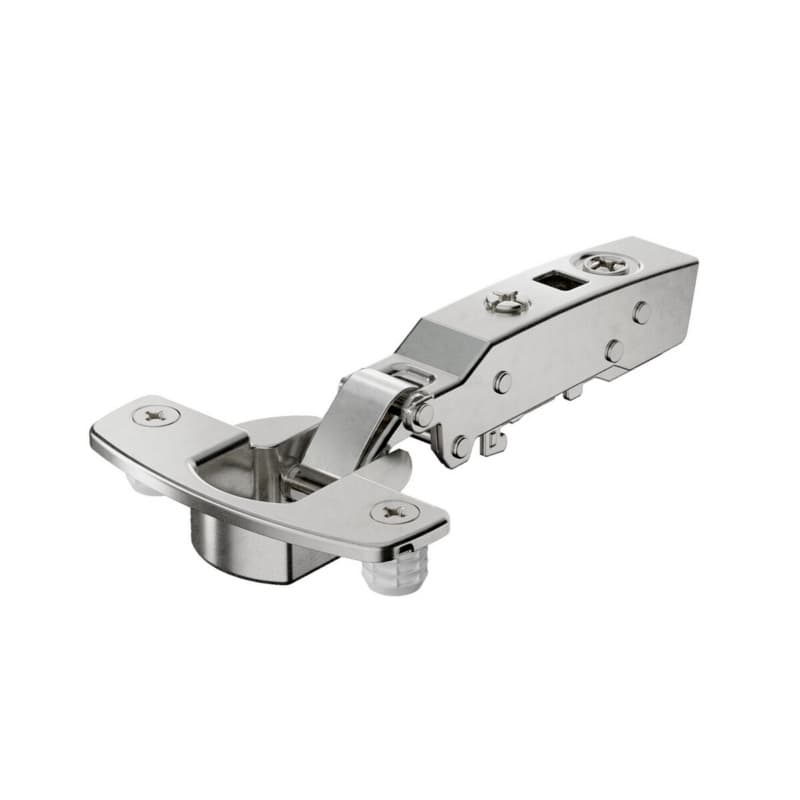

Sensys 95° Opening Thick Door Hinge, 45mm Boring Pattern, Self-Closing, Overlay, Nickel-Plated, Dowelled
Item # HET9090291
•Mfr # 9090291
$5.65
/Each
200 items
$5.17/Each
Min Order: 1
Quantity Multiple by: 1
Product Details
Features:
• Dowelled mount
• Thick door hinge in Nickel-Plated finish
• Sensys thick door hinge, door thickness up to 32 mm
• With integrated Silent System, with self closing feature (Sensys 8631i)
• Quality classification under EN 15570, Level 2
• For door thickness 15mm - 32mm
• Door mounting option overlay

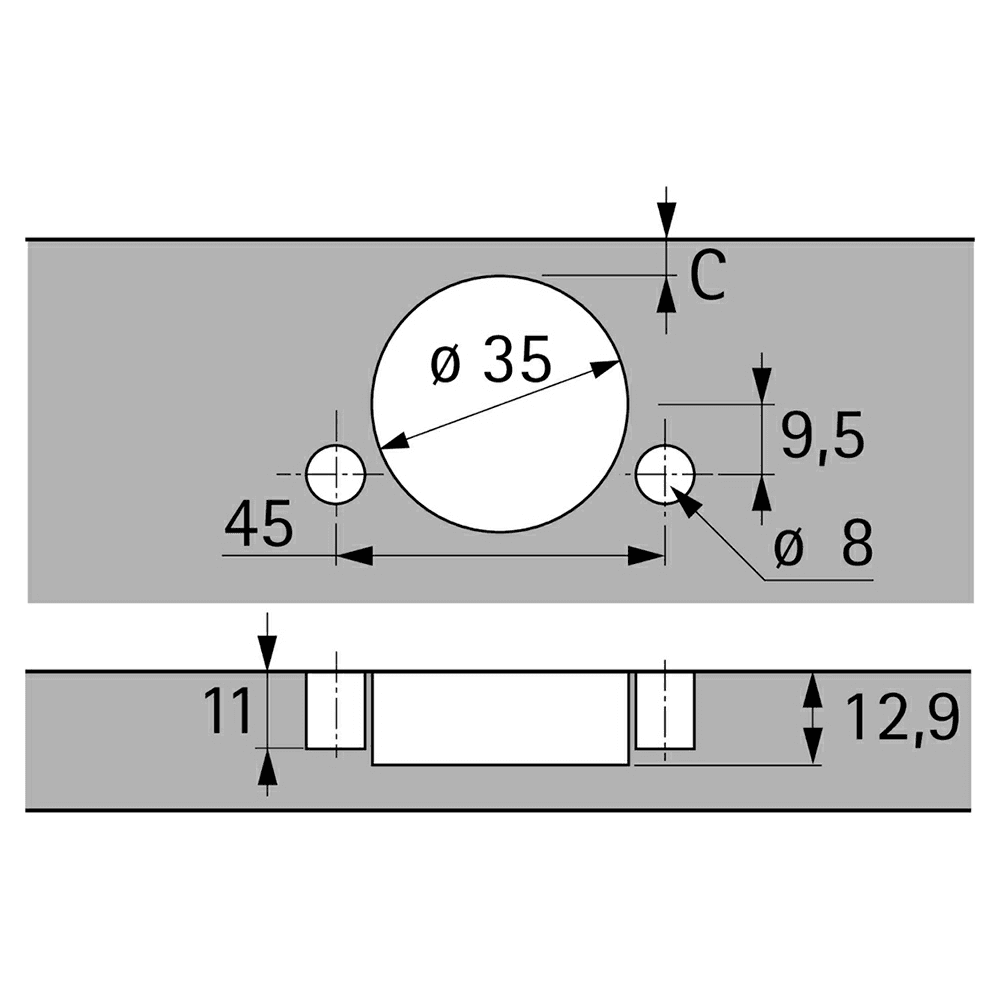

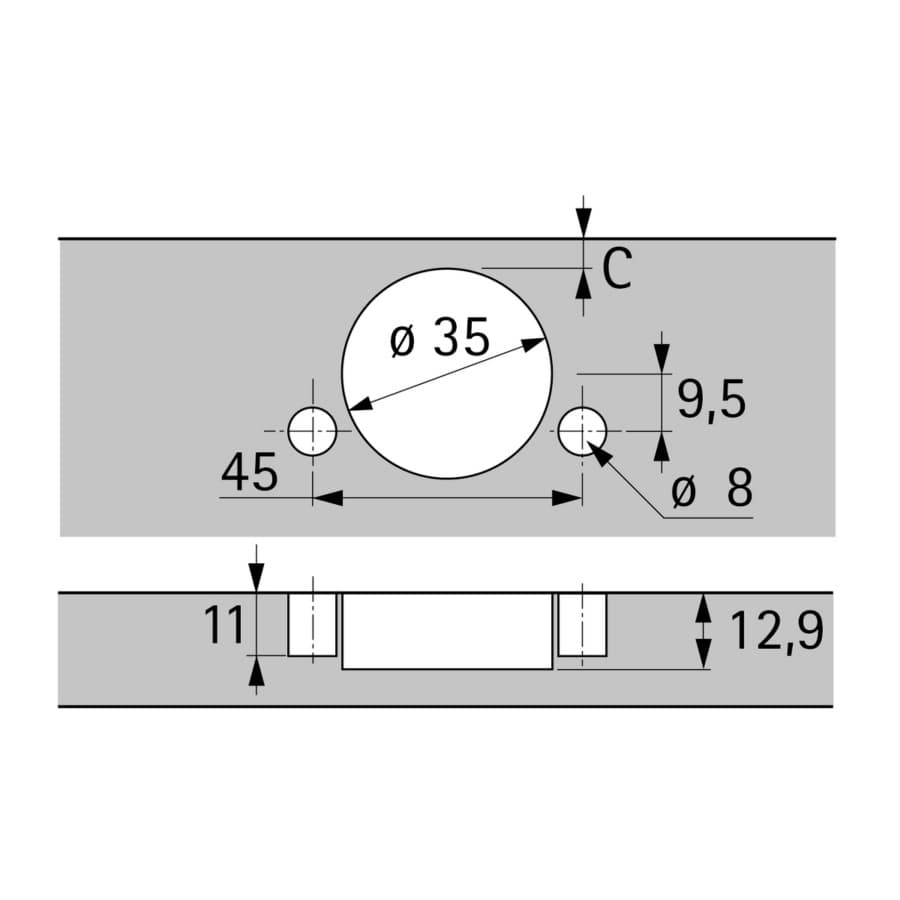

• Drilling pattern TB 45mm x 9,5mm
• Integrated overlay adjustment +2mm / -2mm
• Integrated depth adjustment +3mm / -2mm
• Height adjustment at mounting plate
• Dowelled mount
• Thick door hinge in Nickel-Plated finish
• Sensys thick door hinge, door thickness up to 32 mm
• With integrated Silent System, with self closing feature (Sensys 8631i)
• Quality classification under EN 15570, Level 2
• For door thickness 15mm - 32mm
• Door mounting option overlay
• Drilling pattern TB 45mm x 9,5mm
• Integrated overlay adjustment +2mm / -2mm
• Integrated depth adjustment +3mm / -2mm
• Height adjustment at mounting plate
Specifications
| Mounting Type | Dowelled |
| Overlay | Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 95° |
| Model | |
| Hinge Type | Thick Door Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 12.8mm |
| Material | Steel |
| Cabinet Type |
