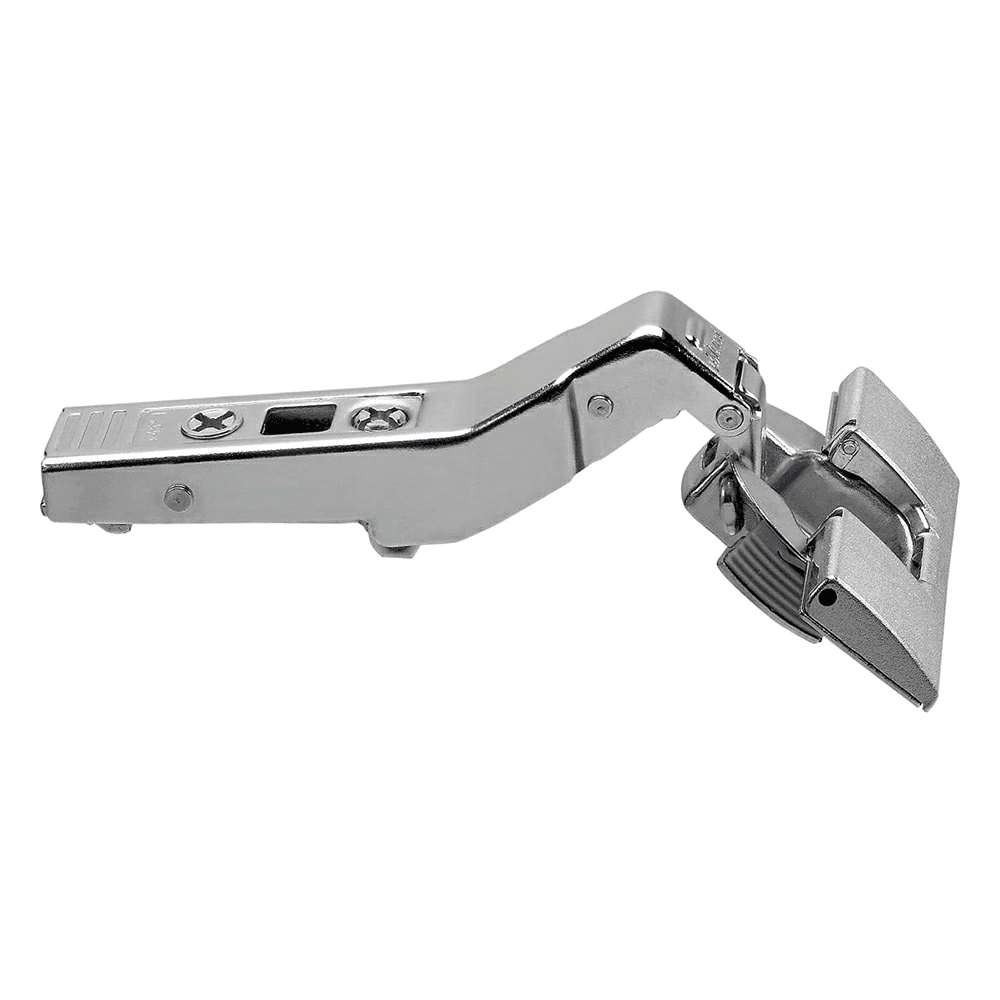

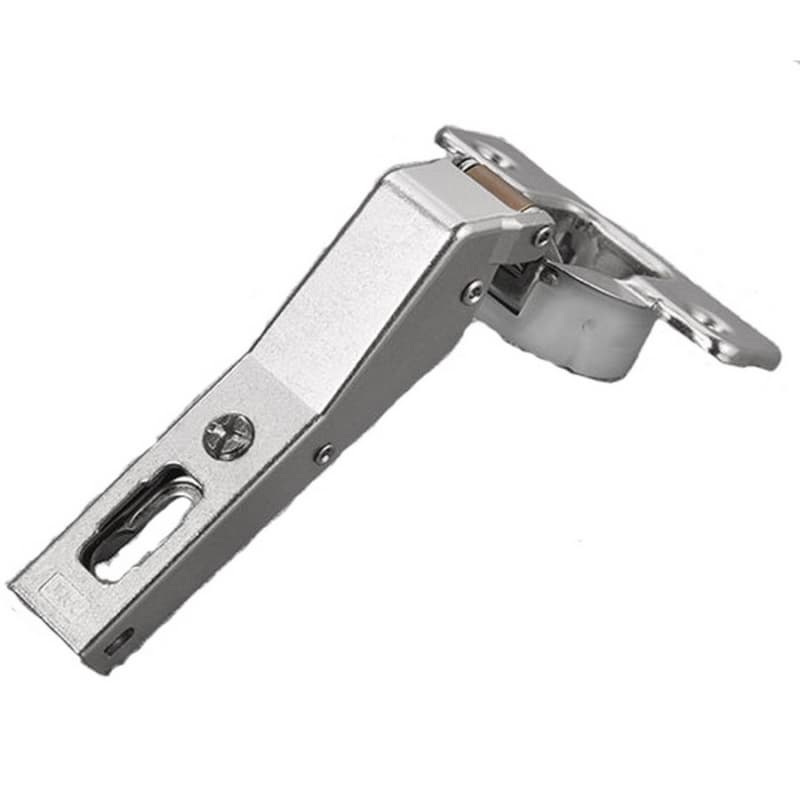

Series 700 +45° Angled Corner 110° Opening Hinge, Silentia+ Soft-Closing, Overlay, Nickel-Plated, Dowelled
Item # SALC7R6ME9AC
•Mfr # C7R6ME9AC
Product Details
Silentia Series 700 positive and negative angle hinges are designed for use in both residential and commercial cabinets.
Features:
• The soft-close mechanism is completely hidden from view within the hinge cup
• Cup depth of 13.5mm making the hinge compatible with most cabinet door profiles
• Hinge cup edge drilling distance of 3mm to 8mm
• Patented parallel side-to-side adjustment of +4.5mm to -1.5mm via hinge arm screw
• Available in two cup fastening designs: "Screw-on" with two #6 x 5/8" screws and "Press-in" dowels
• Series 700 hinges are designed to work with Salice mounting plates
Features:
• The soft-close mechanism is completely hidden from view within the hinge cup
• Cup depth of 13.5mm making the hinge compatible with most cabinet door profiles
• Hinge cup edge drilling distance of 3mm to 8mm
• Patented parallel side-to-side adjustment of +4.5mm to -1.5mm via hinge arm screw
• Available in two cup fastening designs: "Screw-on" with two #6 x 5/8" screws and "Press-in" dowels
• Series 700 hinges are designed to work with Salice mounting plates
Specifications
| Box Quantity | 1 |
| Mounting Type | Dowelled |
| Overlay | Overlay |
| Closing Type | Soft-Closing |
| Opening Angle | 110° |
| Hinge Type | +45° Angled |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 13.5mm |
| Material | Steel |
| Cabinet Type | Frameless |
