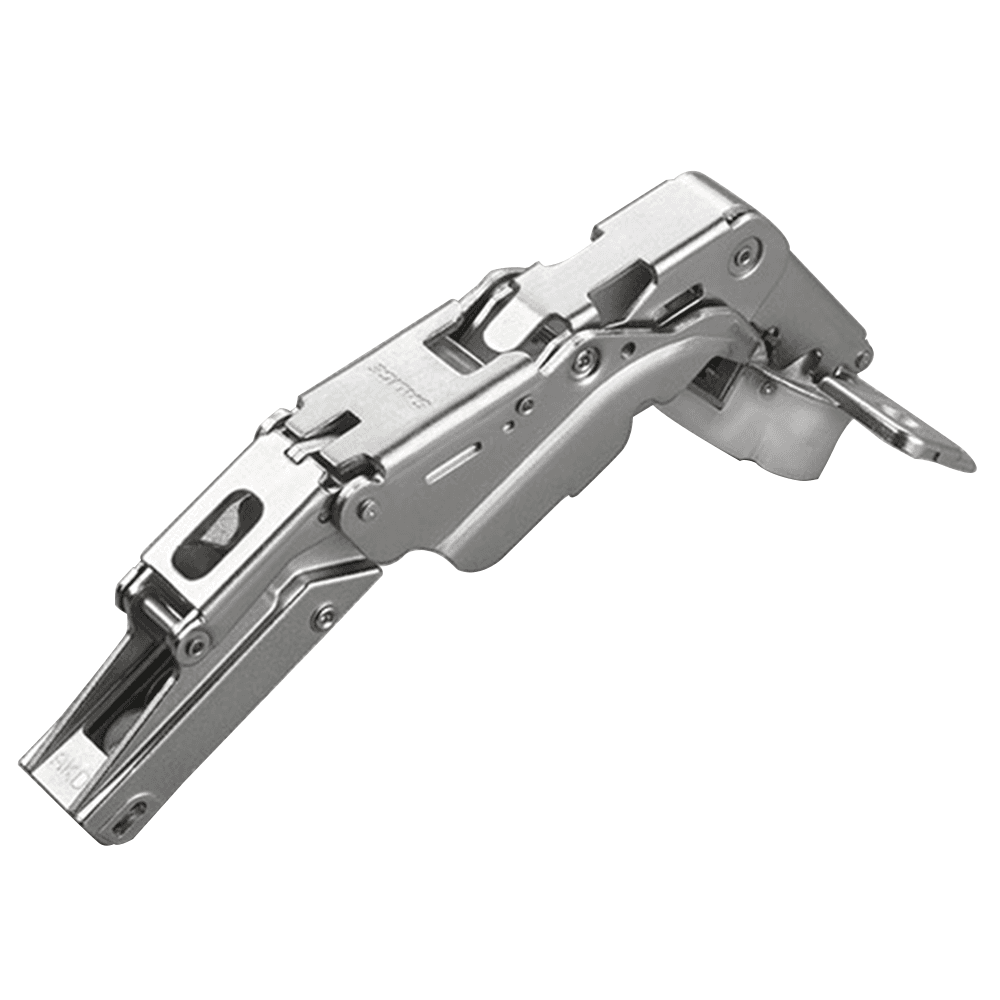

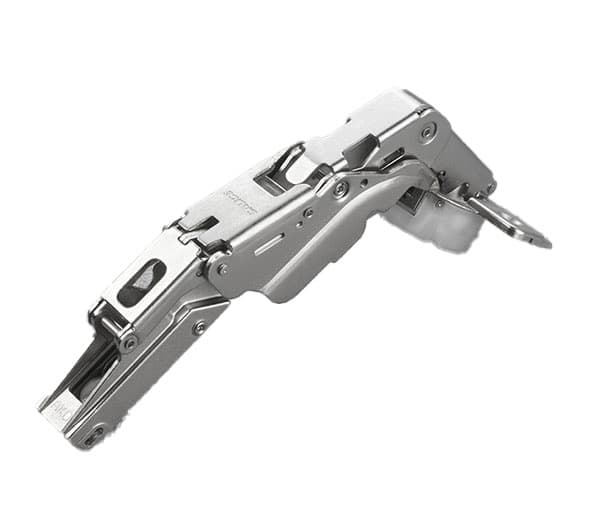

Series 200 155° Opening Hinge, 45mm Bore Pattern, Silentia Soft-Closing, 1/2" Overlay, Nickel-Plated, Dowelled
Item # SALC2RKDE9
•Mfr # C2RKDE9
$7.81
/Each
100 items
$7.22/Each
300 items
$6.95/Each
Min Order: 1
Qty mult. by: 1
Product Details
Features:
• Dowelled mounting type with Nickel-plated finish
• Hinges with integrated soft-close mechanism operated by twin silicone-oil dampers housed in the hinge cup
• Hinges for thick doors 16 mm min
• Hinge with greater opening angle and reduced operating profile
• Dimensions of the 35mm cup diameter
• 13.5mm deep cup
• 155? opening

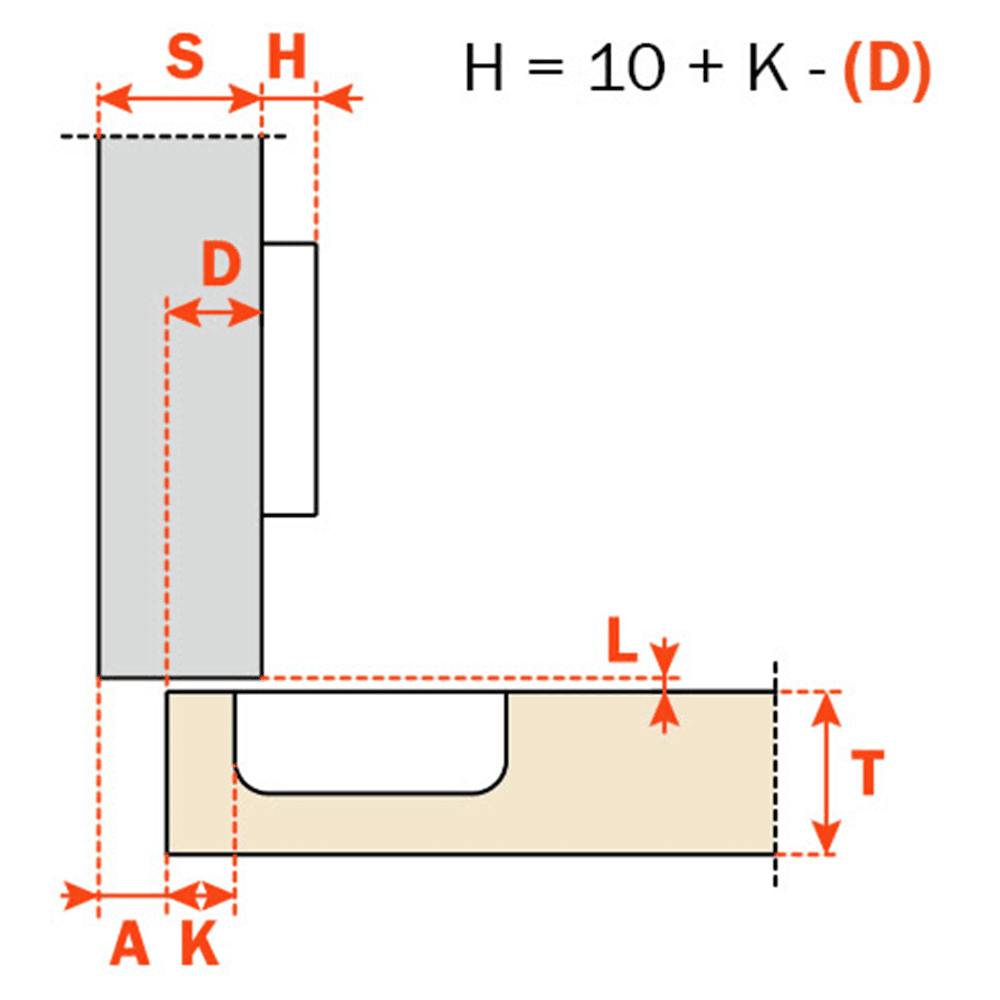

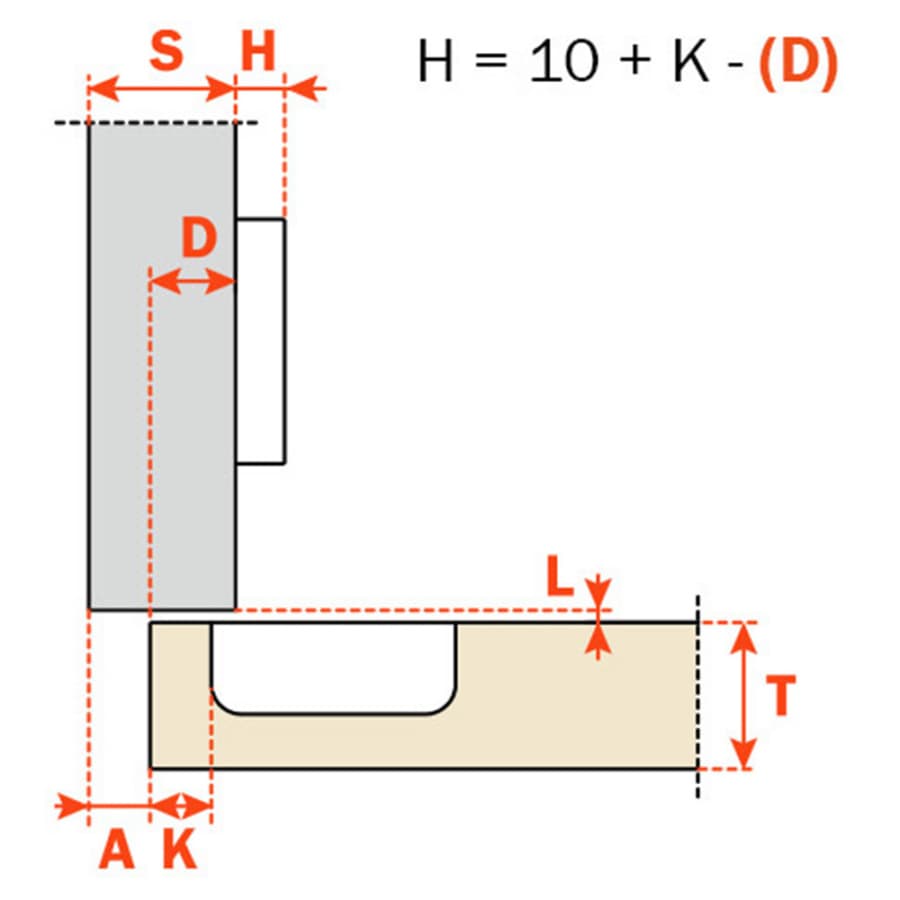

• Possible drilling distance on the door is from 3 to 9 mm
• Compatible with all traditional Series 200 mounting plates and with all Domi Snap-On mounting plates
• Dowelled mounting type with Nickel-plated finish
• Hinges with integrated soft-close mechanism operated by twin silicone-oil dampers housed in the hinge cup
• Hinges for thick doors 16 mm min
• Hinge with greater opening angle and reduced operating profile
• Dimensions of the 35mm cup diameter
• 13.5mm deep cup
• 155? opening
• Possible drilling distance on the door is from 3 to 9 mm
• Compatible with all traditional Series 200 mounting plates and with all Domi Snap-On mounting plates
Specifications
| Box Quantity | 1 |
| Product Type | |
| Mounting Type | Dowelled |
| Overlay | 1/2" |
| Closing Type | Soft-Closing |
| Opening Angle | 155° |
| Model | |
| Hinge Type | Standard Euro Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 13.5mm |
| Material | |
| Cabinet Type |
