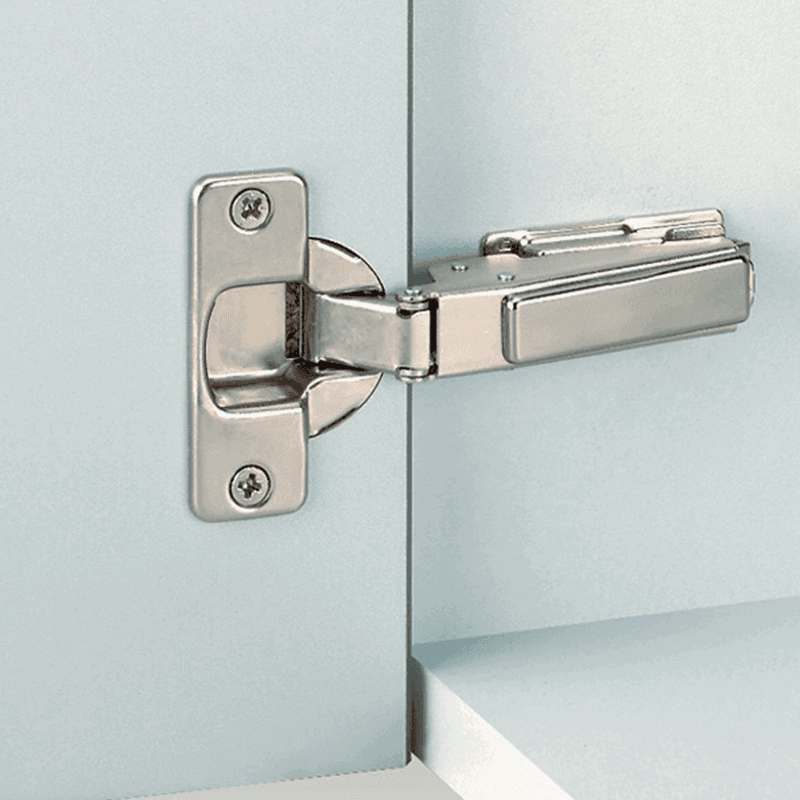

Nexis 95° Opening Thick Door Hinge, Self-Closing, Full Overlay, Screw-On
Item # GNX015072742236
•Mfr # F015072742236
Product Details
Features:
Screw-on mounting hinge
Nexis hinges with 95? opening for thick doors or doors with applied moldings and profiles are suitable for frameless and face frame applications
For door thickness up to 30mm (1-3/16") and overlays up to 19mm (3/4")
Nexis 95? opening thick door hinges
Hinge cup edge drilling distance of 3mm to 6mm
Single screw side-to-side adjustment of +1mm to -3mm
Screw-on hinges feature stamped steel cup
Nexis hinges are compatible with Grass soft-close devices
Nexis hinges are designed to work with Grass mounting plates
Screw-on mounting hinge
Nexis hinges with 95? opening for thick doors or doors with applied moldings and profiles are suitable for frameless and face frame applications
For door thickness up to 30mm (1-3/16") and overlays up to 19mm (3/4")
Nexis 95? opening thick door hinges
Hinge cup edge drilling distance of 3mm to 6mm
Single screw side-to-side adjustment of +1mm to -3mm
Screw-on hinges feature stamped steel cup
Nexis hinges are compatible with Grass soft-close devices
Nexis hinges are designed to work with Grass mounting plates
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 250 |
| Product Type | |
| Mounting Type | Screw-On |
| Overlay | Full Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 95° |
| Model | |
| Hinge Type | Thick Door Hinge |
| Finish | |
| Boring Pattern | |
| Cup Diameter | |
| Cup Depth | 11.8mm |
| Material | Steel |
| Cabinet Type | Face Frame/Frameless |
