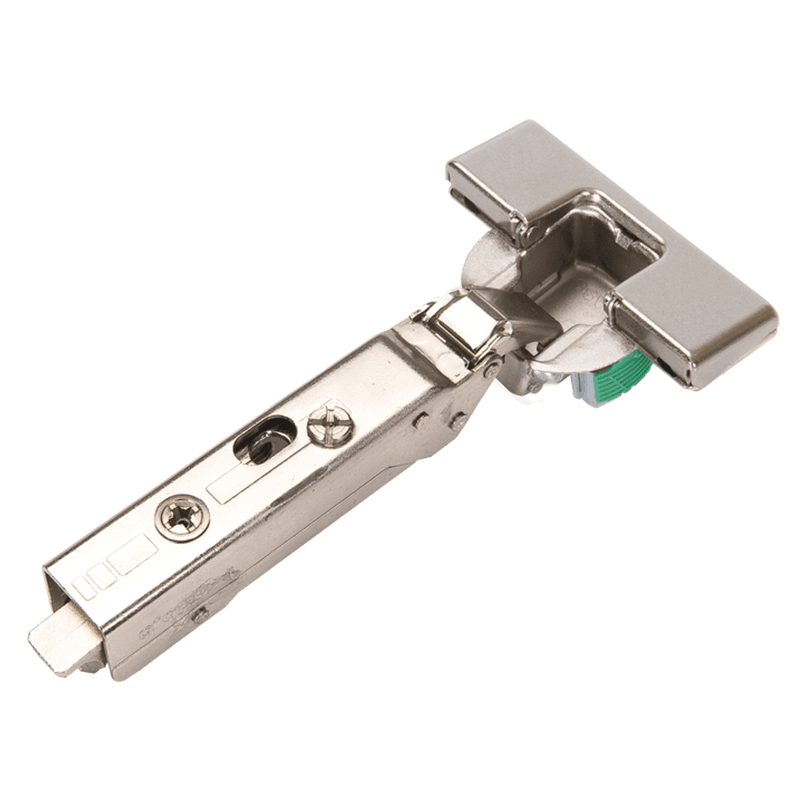

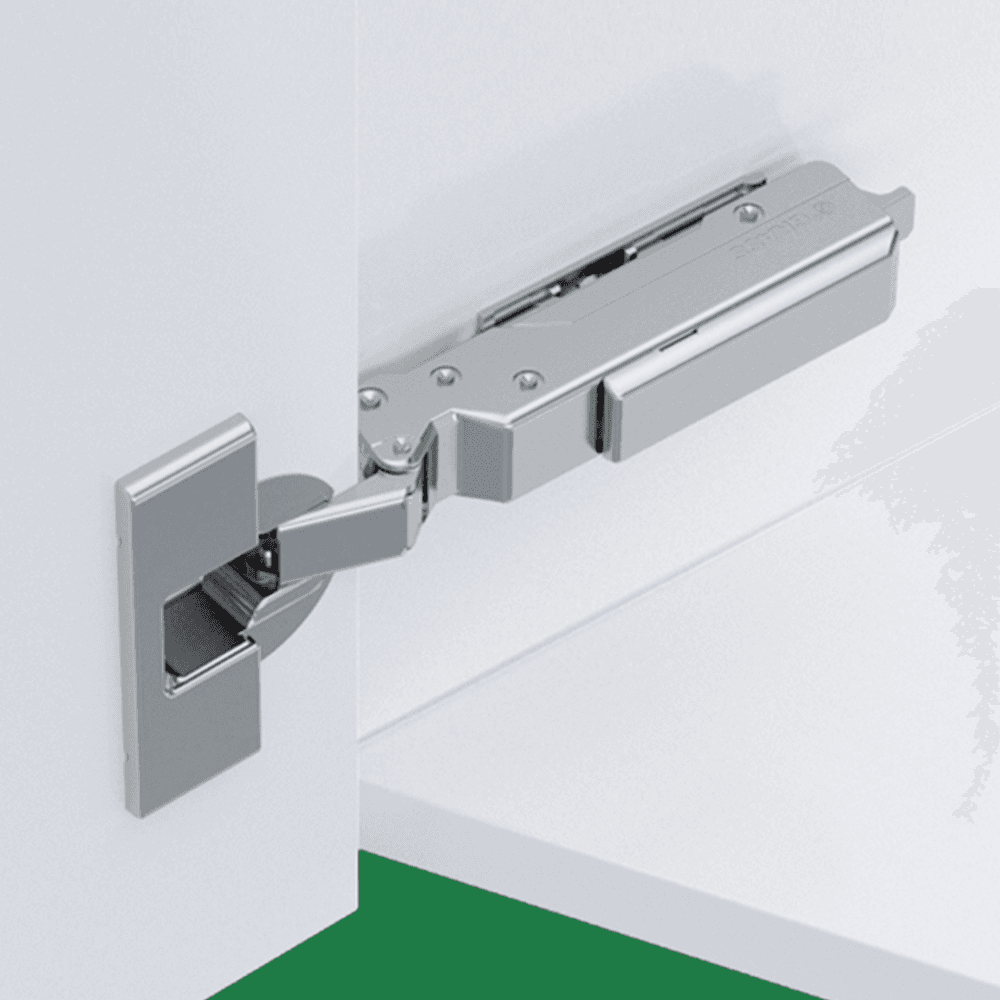

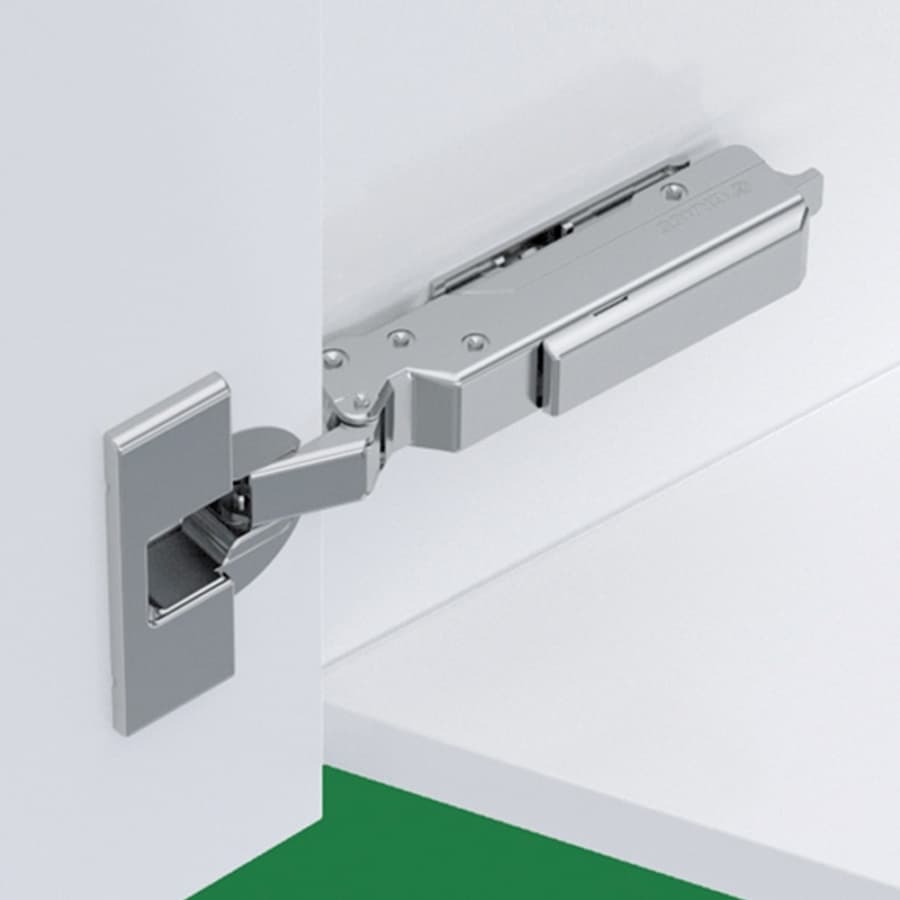

Tiomos -45° Angled Corner 120° Opening Hinge, 45mm Boring Pattern, Soft-Closing, Overlay, Nickel-Plated, Screw-On
Item # GTIOF028138557213
•Mfr # F028138557213
$14.04
/Each
25 items
$11.88/Each
125 items
$11.15/Each
Backordered
Min Order: 1
Qty mult. by: 1
Product Details
Tiomos provides perfect movement for essentially every application, from standard doors to wide angle doors, from diagonal corner hinges to pie-cut corner hinges, and from frameless applications to face frame applications.
Tiomos is available in a 45mm or 42mm boring pattern for dowelled hinges and 45mm for screw-on hinges. The Tiomos Impresso, the ever popular tool free version, is available in a combined 42/45mm pattern.
Features:
• Screw-on mounting, -45˚ angled corner hinge
• 120˚ opening angle
• 3-dimensional adjustment with suitable base plate
• Soft-close or Self-close hinges available
• Convenient depth adjustment with worm gear
Tiomos is available in a 45mm or 42mm boring pattern for dowelled hinges and 45mm for screw-on hinges. The Tiomos Impresso, the ever popular tool free version, is available in a combined 42/45mm pattern.
Features:
• Screw-on mounting, -45˚ angled corner hinge
• 120˚ opening angle
• 3-dimensional adjustment with suitable base plate
• Soft-close or Self-close hinges available
• Convenient depth adjustment with worm gear
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 100 |
| Product Type | |
| Mounting Type | Screw-On |
| Overlay | Overlay |
| Closing Type | Soft-Closing |
| Opening Angle | 120° |
| Model | |
| Hinge Type | -45° Angled |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 12.6mm |
| Material | Steel |
| Cabinet Type | Frameless |
