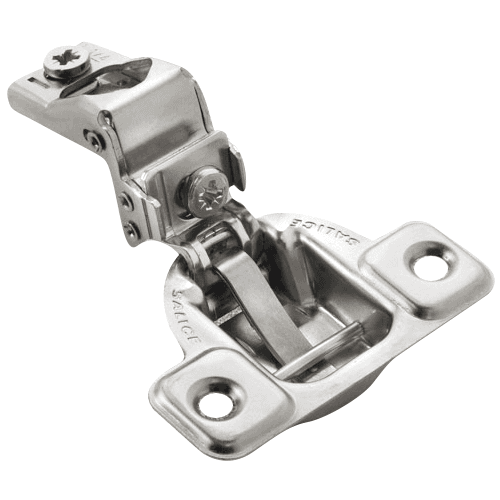

Excentra S 106° Opening Wrap-Around Face Frame Hinge, 45mm Boring Pattern, Self-Closing, 1-1/4" Overlay, Screw-On
Item # SALCSP3A99N
•Mfr # CSP3A99N
Mounting Type:
Overlay:
Product Details
Features:
• Screw-on mount
• 1-1/4" overlay
• 106? opening
• Drilling distance fixed at 2.5mm (3/32")
• Gap between door and frame at 4.6mm
• Reveal at 8.3mm for 3/4" square edge door at 90? opening
• Screw-on mount
• 1-1/4" overlay
• 106? opening
• Drilling distance fixed at 2.5mm (3/32")
• Gap between door and frame at 4.6mm
• Reveal at 8.3mm for 3/4" square edge door at 90? opening
Specifications
| Box Quantity | 1 |
| Mounting Type | Screw-On |
| Overlay | 1-1/4" |
| Closing Type | Self-Closing |
| Opening Angle | 106˚ |
| Hinge Type | Wrap-Around Face Frame |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 11mm |
| Material | Steel |
| Cabinet Type | Face Frame |
