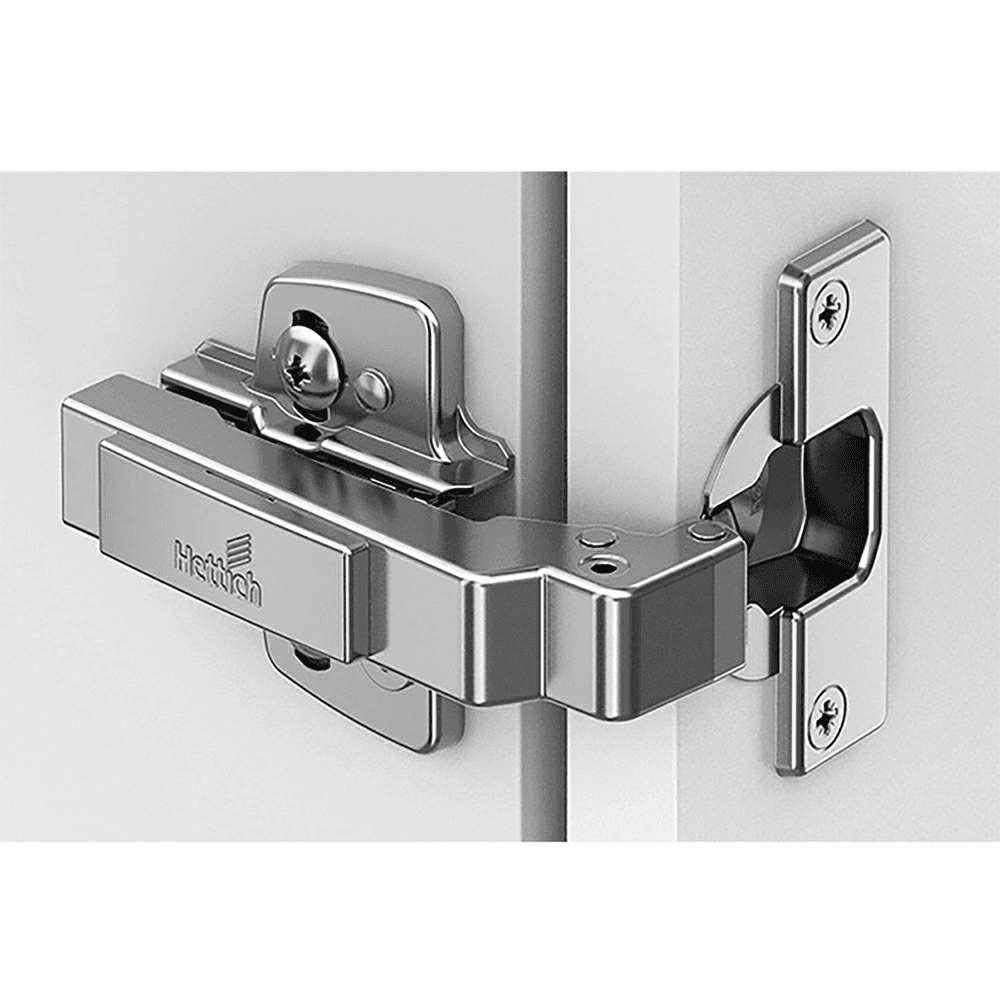

Intermat 9936 W90 95° Opening Hinge, 45mm Bore Pattern, Self-Closing, Inset, Nickel-Plated, Expando
50 items
Mounting Type: Expanding Dowels
Product Details
• Expando mounting type
• Intermat angle hinge W90 in Nickel-Plated finish
• With self closing feature (Intermat 9936 W90)
• Quality classification under EN 15570, Level 2
• For door thickness 14mm - 28mm
• Door mounting option inset
• Integrated adjustment of door offset +2mm / -2mm
• Integrated reveal adjustment +2mm / -2mm
• Height adjustment at mounting plate
This product can expose you to chemicals including Nickel (Metallic), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
This product can expose you to chemicals including Nickel (Metallic), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications
| Mounting Type | Expanding Dowels |
| Overlay | Inset Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 95° |
| Model | |
| Hinge Type | Intermat Hinge |
| Finish | Nickel-Plated |

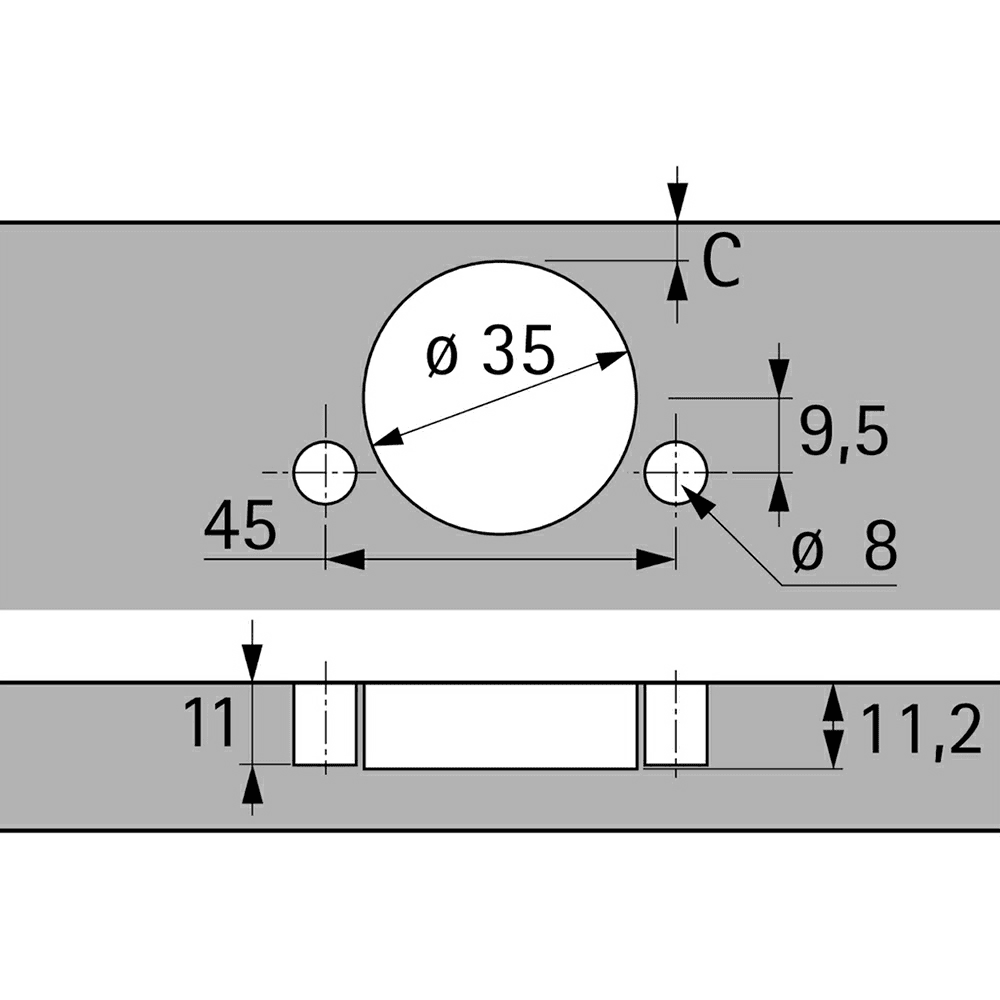

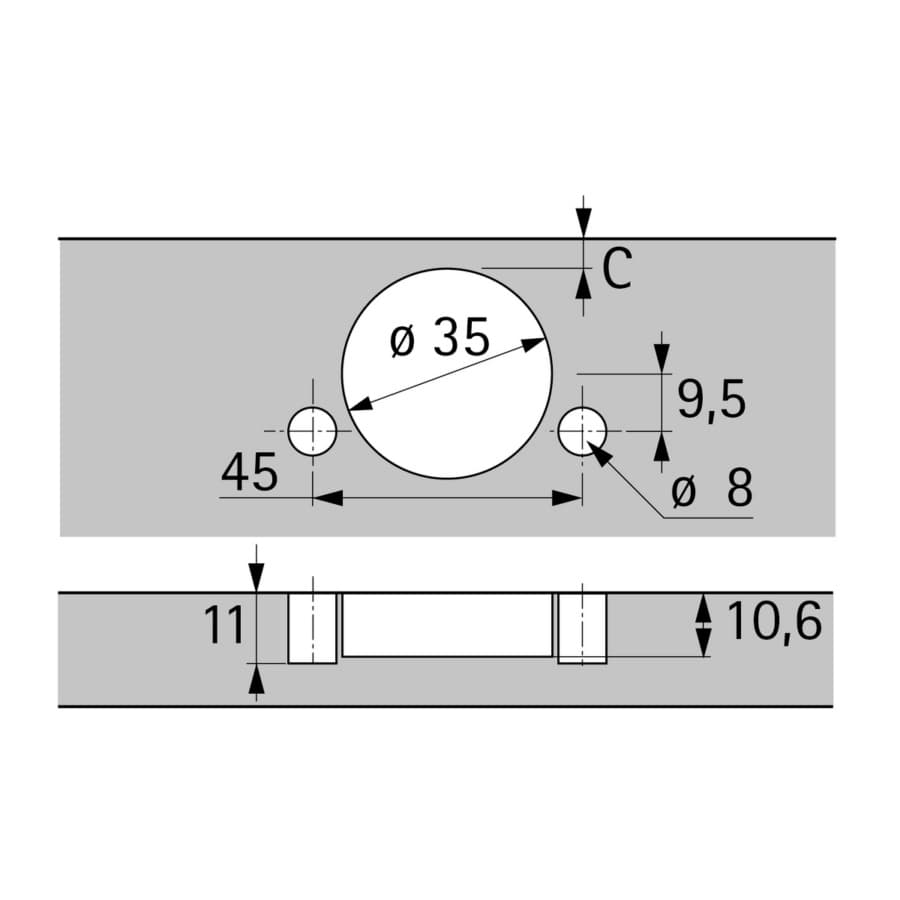

| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 10.5mm |
| Material | Steel/Die-Cast Zinc |
| Cabinet Type |
