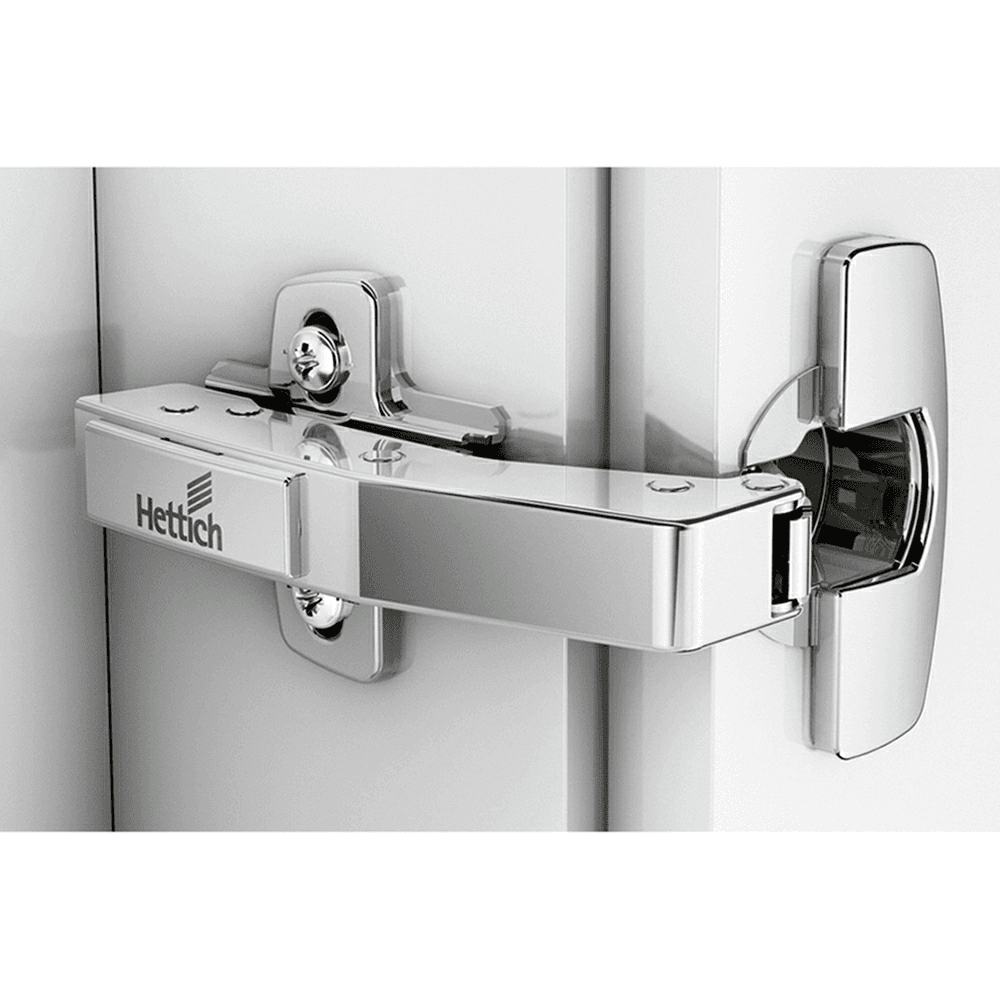

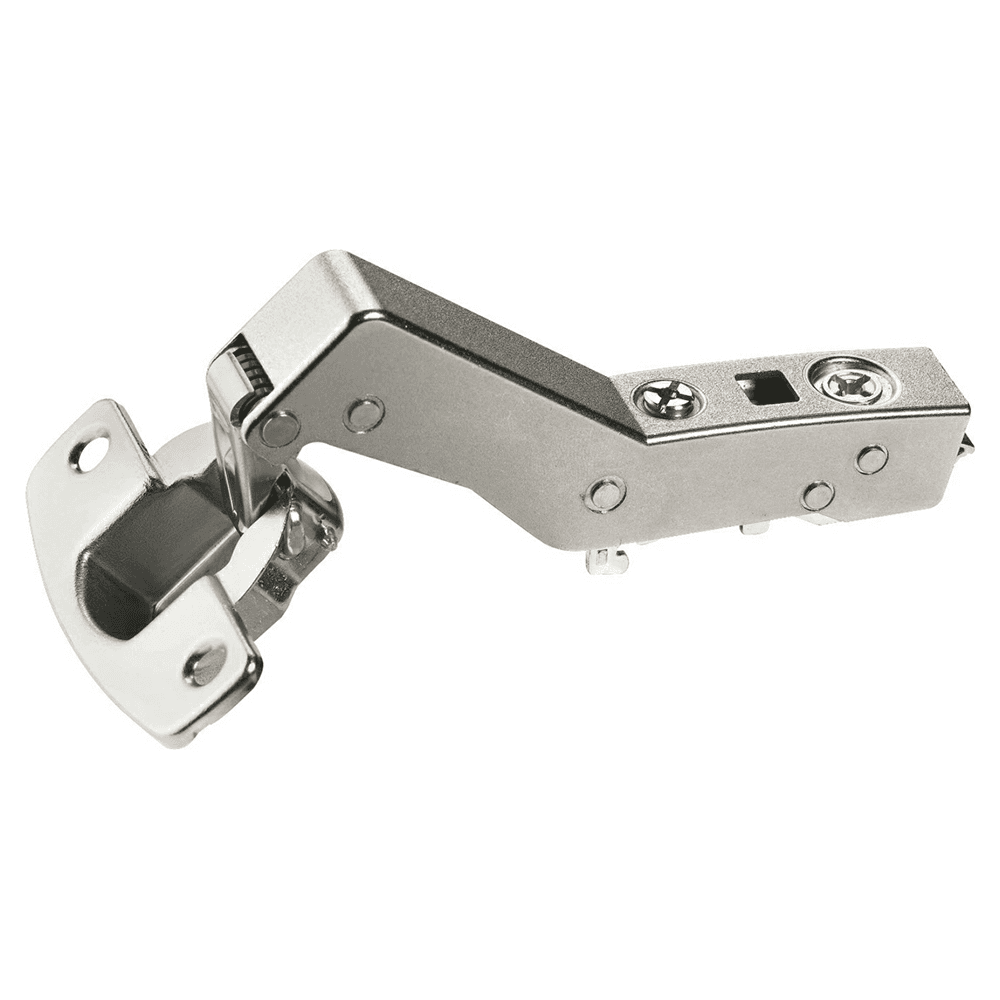

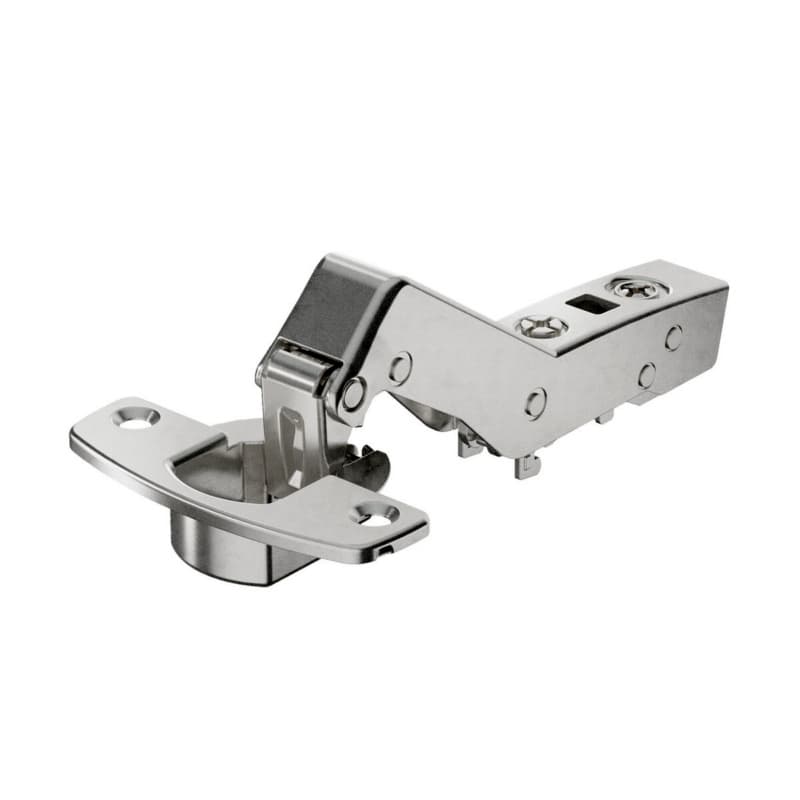

9088026 Sensys 8639i W45 95° Opening Hinge with Integrated Silent System, Self Closing, Inset, Nickel-Plated, Screw-On
50 items
Product Details
• Screw-on mounting type
• With integrated silent system, with self closing feature (Sensys 8639i W45)
• Quality classification under EN 15570, Level 3
• For door thickness 15mm - 28mm
• Door mounting option inset
• Integrated overlay adjustment +2mm / -2mm
• Integrated depth adjustment +3mm / -2mm
• Height adjustment at mounting plate
This product can expose you to chemicals including Nickel (Metallic), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
This product can expose you to chemicals including Nickel (Metallic), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 50 |
| Product Type | |
| Mounting Type | Screw-On |
| Overlay | Inset Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 95° |
| Model | |
| Hinge Type | Standard Euro Hinge |
| Finish | Nickel-Plated |

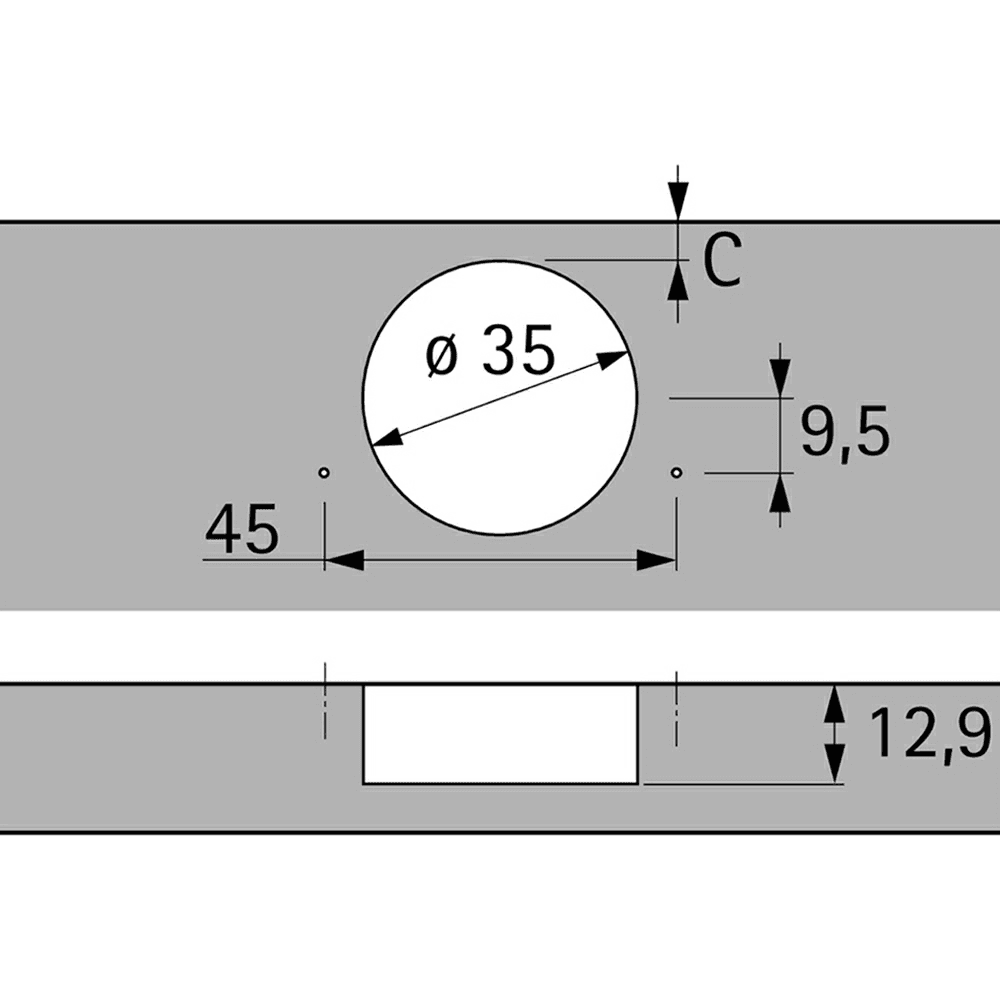

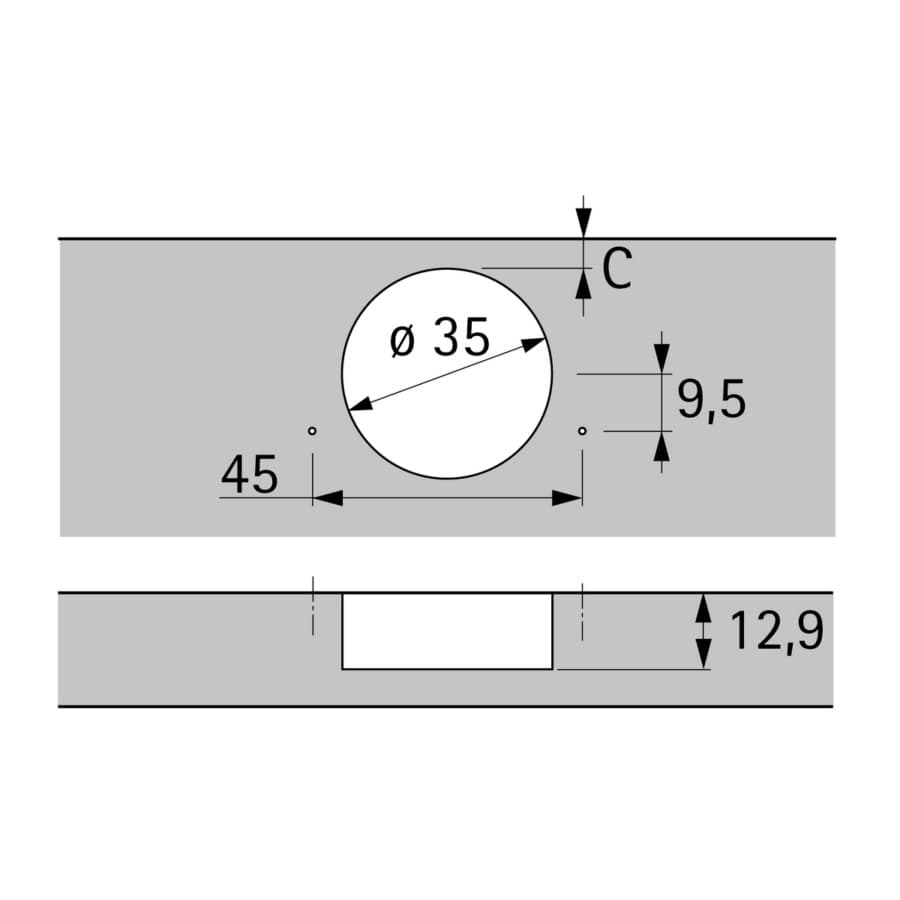

| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 12.8mm |
| Material | Steel |
| Cabinet Type |
