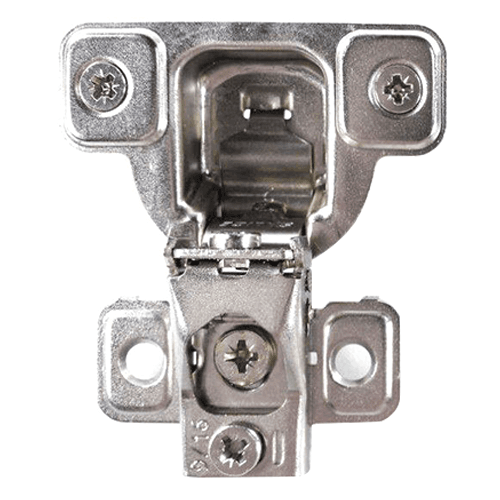

Series S 106° Opening Side-Mount Face Frame Hinge, 45mm Boring Pattern, Self-Closing, 9/16" Overlay, Dowelled
Item # SALCSR3699XR
•Mfr # CSR3699XR
Mounting Type:
Overlay:
Product Details
Side, height and depth adjustments. The best side to side adjustment in the industry ensures butt door problems are easily resolved. Also available in titanium finish, which perfectly integrates the hinge into the design of the cabinet conveying a sensation of warmth. This finish makes the hinge ideal in combination with darker interiors and also considerably increases the corrosion strength when compared to the classic finishes.
Features:
• Dowelled mount
• 9/16" overlay
• Stamped steel
• Cup depth 11mm (7/16")
• Opening 106?
• K fixed at 2.5mm (3/32")
• L = 4.6mm (3/16")
• For overlays from 1/4" through 3/4" the "A" value = 8.3mm for 3/4" square edge doors at 90? opening
• For overlays from 1" through 1- 7/16? the "A" value = 5.2mm for 3/4" square edge doors at 90? opening
• Zero-door protrusion Suggested frame fixing. screw # 6 x 5/8" FHP+BF25
Features:
• Dowelled mount
• 9/16" overlay
• Stamped steel
• Cup depth 11mm (7/16")
• Opening 106?
• K fixed at 2.5mm (3/32")
• L = 4.6mm (3/16")
• For overlays from 1/4" through 3/4" the "A" value = 8.3mm for 3/4" square edge doors at 90? opening
• For overlays from 1" through 1- 7/16? the "A" value = 5.2mm for 3/4" square edge doors at 90? opening
• Zero-door protrusion Suggested frame fixing. screw # 6 x 5/8" FHP+BF25
Specifications
| Box Quantity | 1 |
| Mounting Type | Dowelled |
| Overlay | 9/16" |
| Closing Type | Self-Closing |
| Opening Angle | 106ø |
| Hinge Type | Side-Mount Face Frame |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 11mm |
| Material | Steel |
| Cabinet Type | Face Frame |
