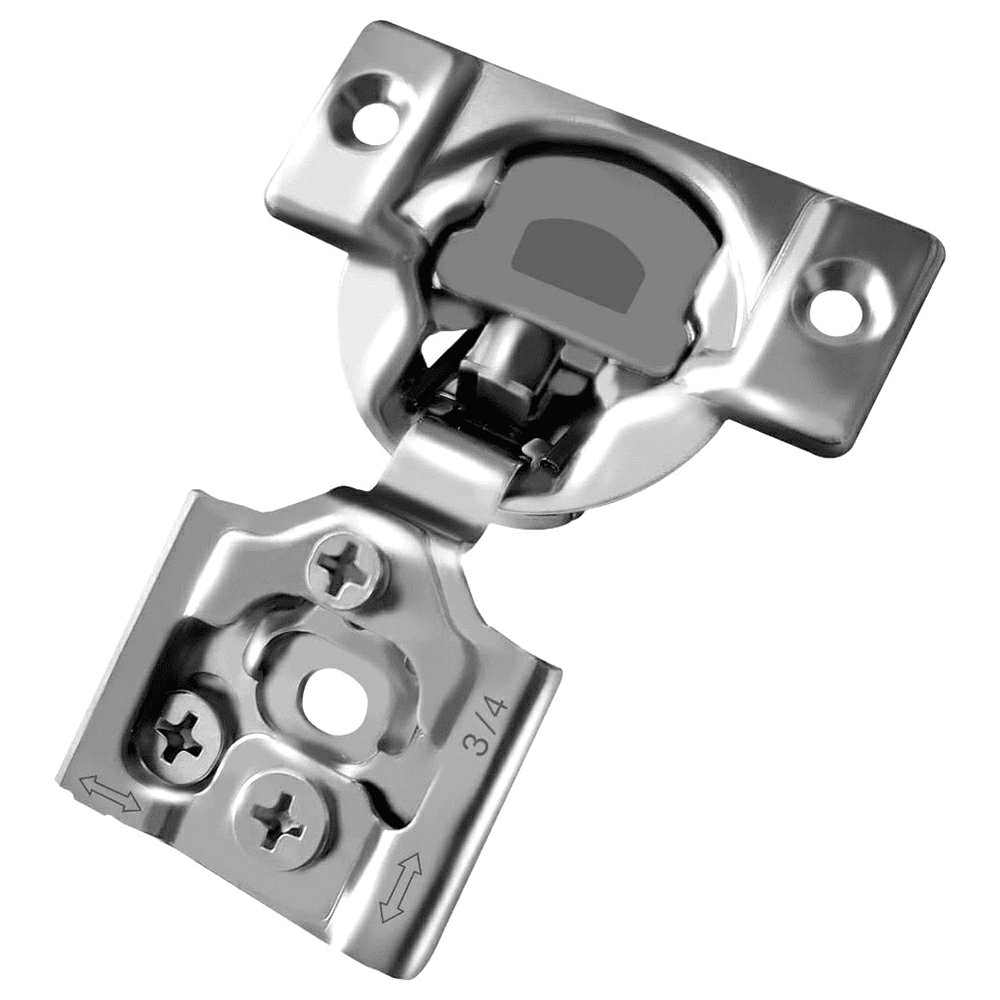

Optimat 3D 105° Opening Face Frame Hinge, Self Closing, 45mm Boring Pattern, 1" Overlay, Dowelled
Item # HET9295585
•Mfr # 9295585
Overlay: 1"
Product Details
Features:
• Dowelled mount type
• 1" overlay
• 6-way-adjustable face-frame hinge
• Meets and exceeds the minimum requirements of ANSI/BHMA A156.9 standard
• For door thickness up to 3/4" (19mm)
• Cup distance 1/8" (3mm)
• Side adjustment +/- 1.5mm cam
• Depth adjustment +/- 1.6mm cam
• Height adjustment +/- 2.5mm slotted
• Dowelled mount type
• 1" overlay
• 6-way-adjustable face-frame hinge
• Meets and exceeds the minimum requirements of ANSI/BHMA A156.9 standard
• For door thickness up to 3/4" (19mm)
• Cup distance 1/8" (3mm)
• Side adjustment +/- 1.5mm cam
• Depth adjustment +/- 1.6mm cam
• Height adjustment +/- 2.5mm slotted
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
| Product Type | |
| Mounting Type | Dowelled |
| Overlay | 1" |
| Closing Type | Self-Closing |
| Opening Angle | 105° |
| Model | |
| Hinge Type | Face-Frame Hinge |
| Finish | |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 11mm |
| Material | |
| Cabinet Type | Face Frame |
