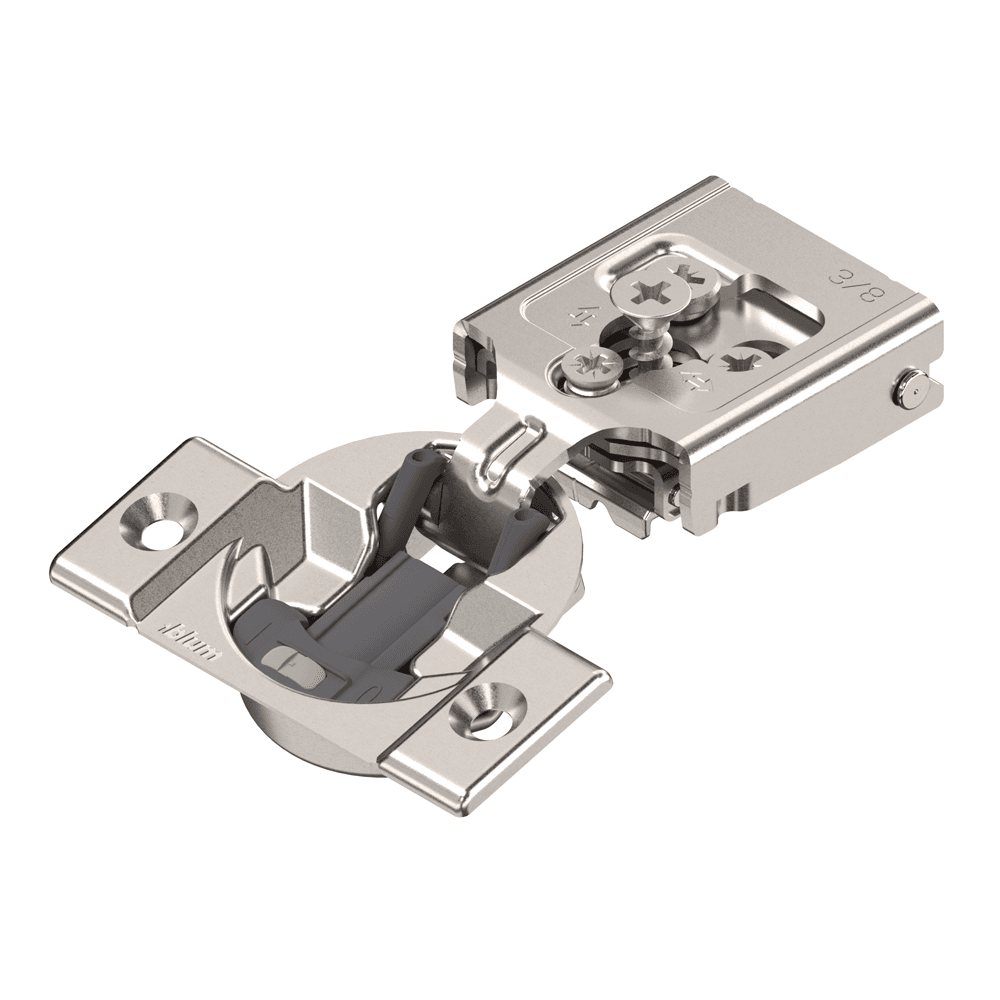

Compact 30C2 105° Opening Wrap-Around Face Frame Hinge, 45mm Boring Pattern, Soft-Closing, 3/8" Overlay, Screw-On
Item # B30C255B06
•Mfr # 30C255BS06
$3.99
/Each
250 items
$3.69/Each
Mounting Type: Screw-On
Overlay: 3/8"
Min Order: 1
Qty mult. by: 1
Product Details
• Doors can be removed and reattached quickly and tool free
• Pre-mounted wood screw for precise installation
• BLUMOTION integrated into hinge cup
• Deactivation switch for small/light doors
• Overload safety feature
• All hinges meet or exceed ANSI/BHMA Grade 2 requirements
• Pre-mounted wood screw for precise installation
• BLUMOTION integrated into hinge cup
• Deactivation switch for small/light doors
• Overload safety feature
• All hinges meet or exceed ANSI/BHMA Grade 2 requirements
Specifications
| Box Quantity | 250 |
| Product Type | |
| Mounting Type | Screw-On |

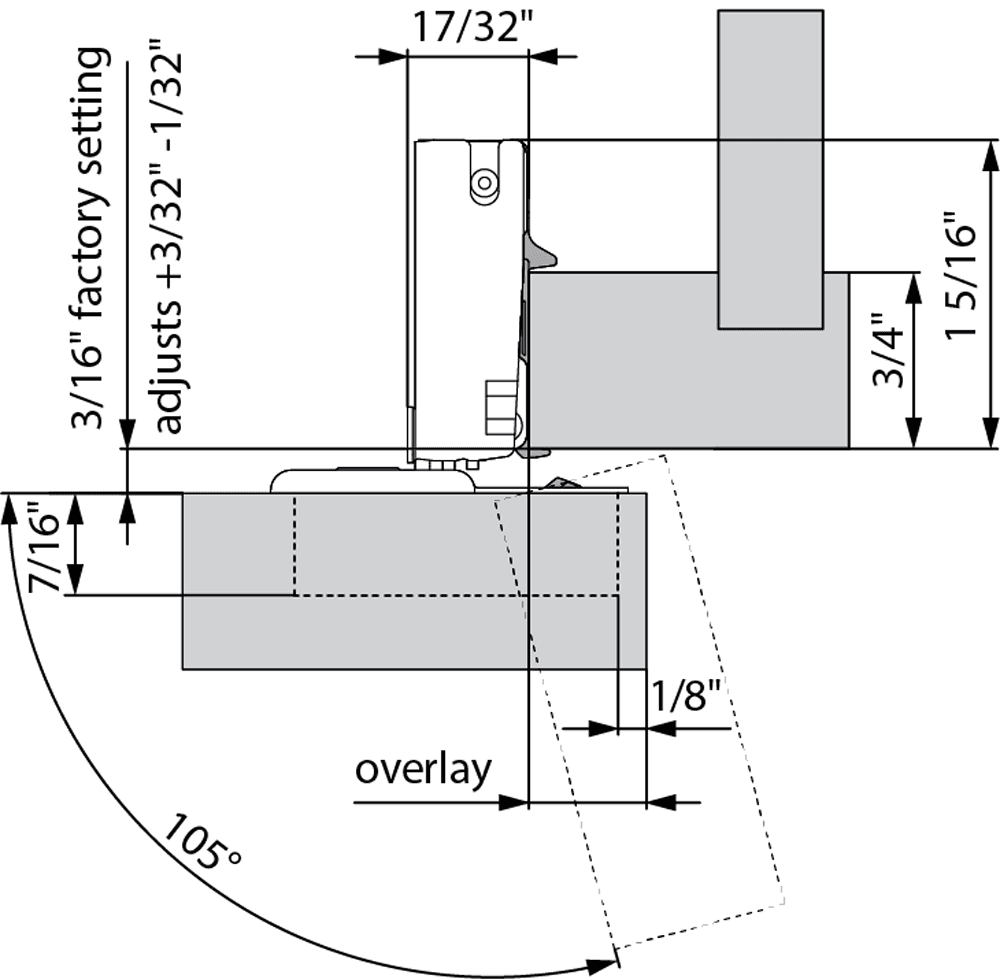

| Overlay | 3/8" |
| Closing Type | Soft-Closing |
| Opening Angle | 105° |
| Model | |
| Hinge Type | Edge-Mount |
| Finish | Nickel-Plated |

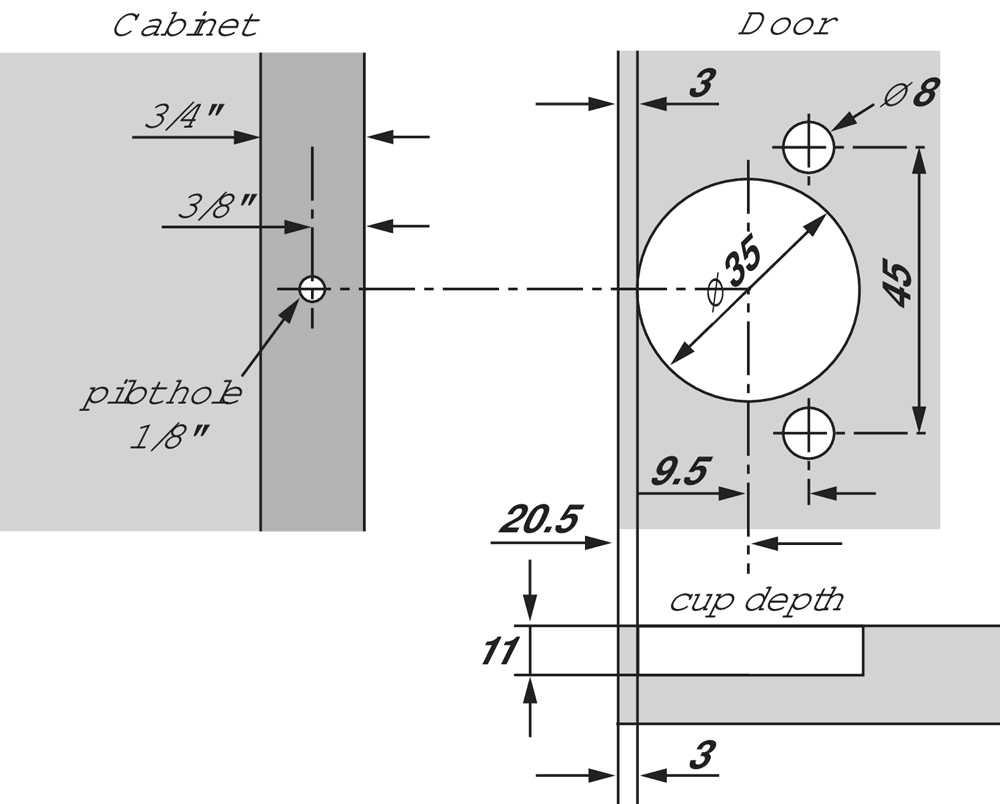

| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 7/16" |
| Material | Steel |
| Cabinet Type | Face Frame |
