Euro Faceframe Hinges
Shop Blum

Compact 31C3 110° Opening Wrap-Around Face Frame Hinge, 45mm Boring Pattern, Soft-Closing, 1-3/8" Overlay, Screw-On

Item # B31C355B22
•
Mfr # 31C355BS22

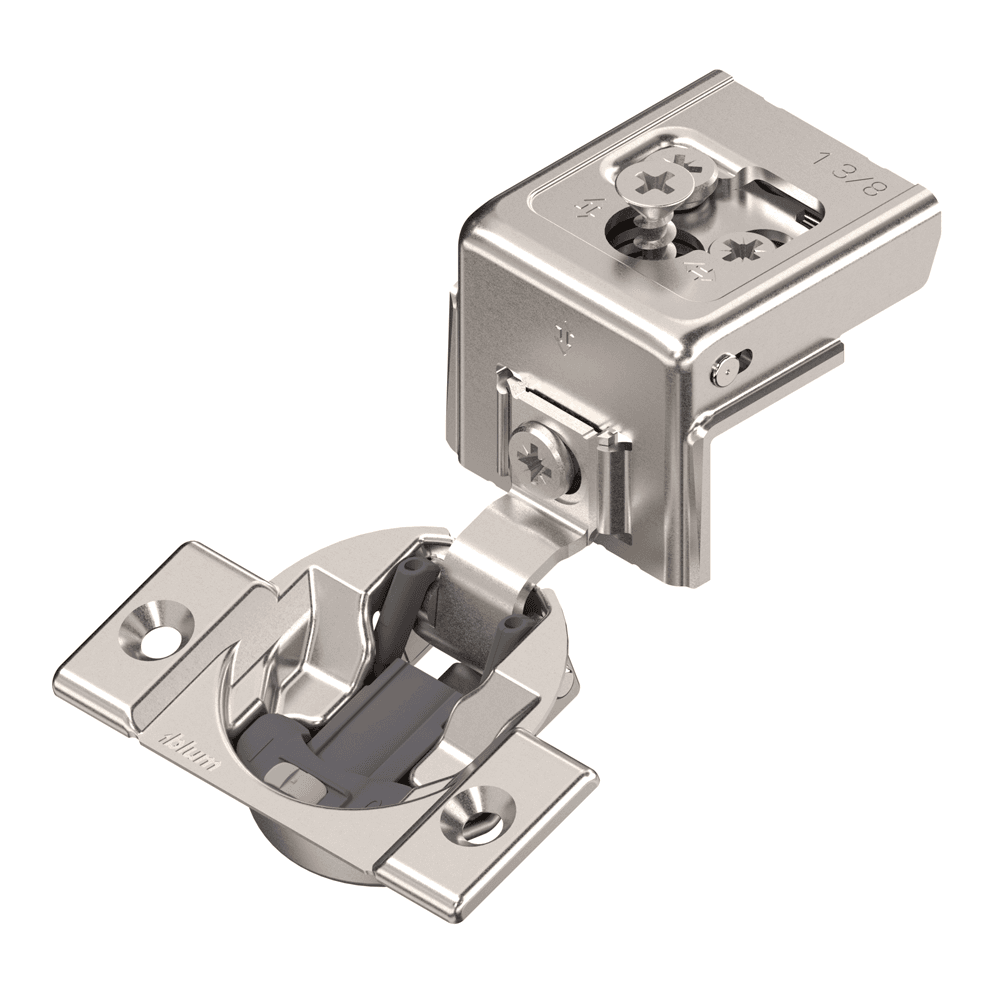

Compact 31C3 110˚ Opening Wrap-Around Face Frame Hinge, 45mm Boring Pattern, Soft-Closing, 1-3/8" Overlay, Screw-On - Main Image

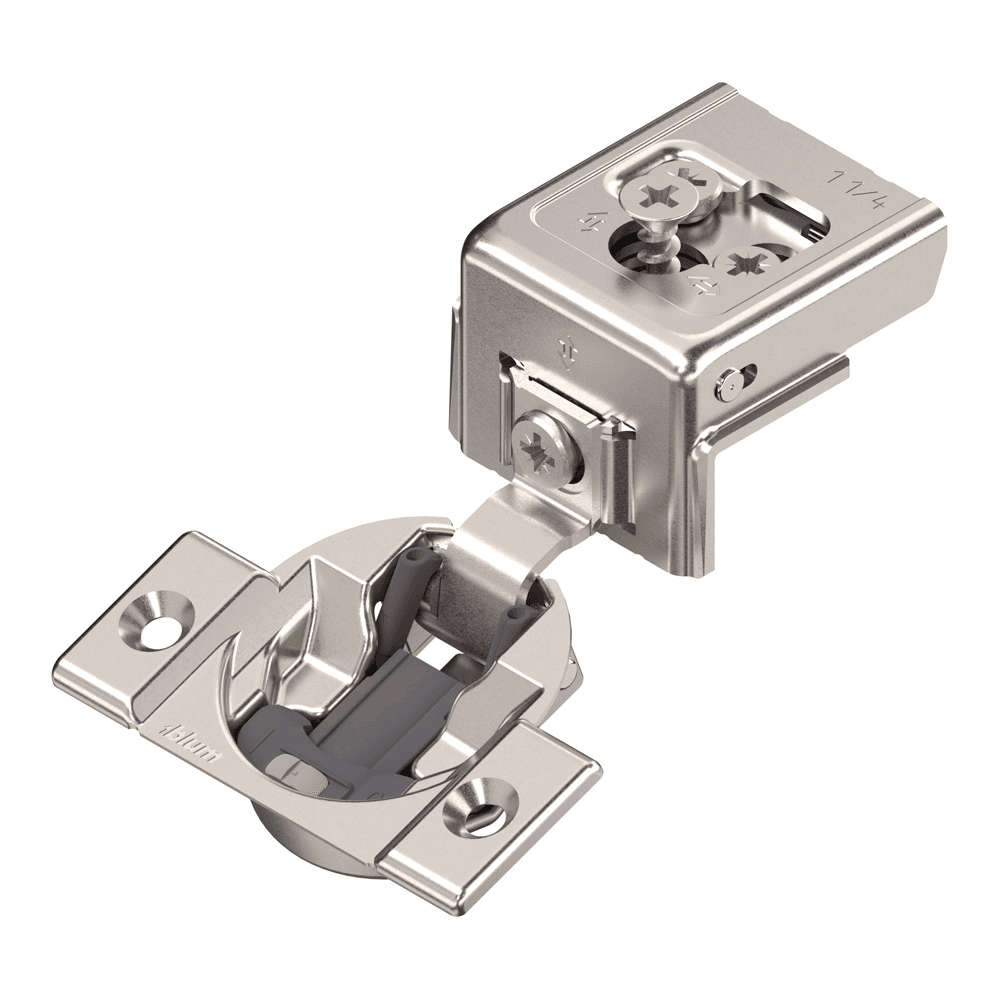

Compact 31C3 110˚ Opening Wrap-Around Face Frame Hinge, 45mm Boring Pattern, Soft-Closing, 1-3/8" Overlay, Screw-On - Alt Image 1
Compact 31C3 110˚ Opening Wrap-Around Face Frame Hinge, 45mm Boring Pattern, Soft-Closing, 1-3/8" Overlay, Screw-On - Alt Image 2
Compact 31C3 110˚ Opening Wrap-Around Face Frame Hinge, 45mm Boring Pattern, Soft-Closing, 1-3/8" Overlay, Screw-On - Alt Image 3
$4.11
/Each
250 items
$3.81/Each

Mounting Type: Screw-On

Overlay: 1-3/8"

Qty /
Min Order: 1
Qty mult. by: 1

Product Details

• Doors can be removed and reattached quickly and tool free
• Pre-mounted wood screw for precise installation
• BLUMOTION integrated into hinge cup
• Deactivation switch for small/light doors
• Overload safety feature
• All hinges meet or exceed ANSI/BHMA Grade 2 requirements

Specifications

Box Quantity250
Product Type
Mounting TypeScrew-On
Overlay1-3/8"
Closing TypeSoft-Closing
Opening Angle110°
Model
Hinge TypeWrap-Around
FinishNickel-Plated
Boring Pattern45mm
Cup Diameter35mm
Cup Depth1/2"
MaterialSteel
Cabinet TypeFace Frame
